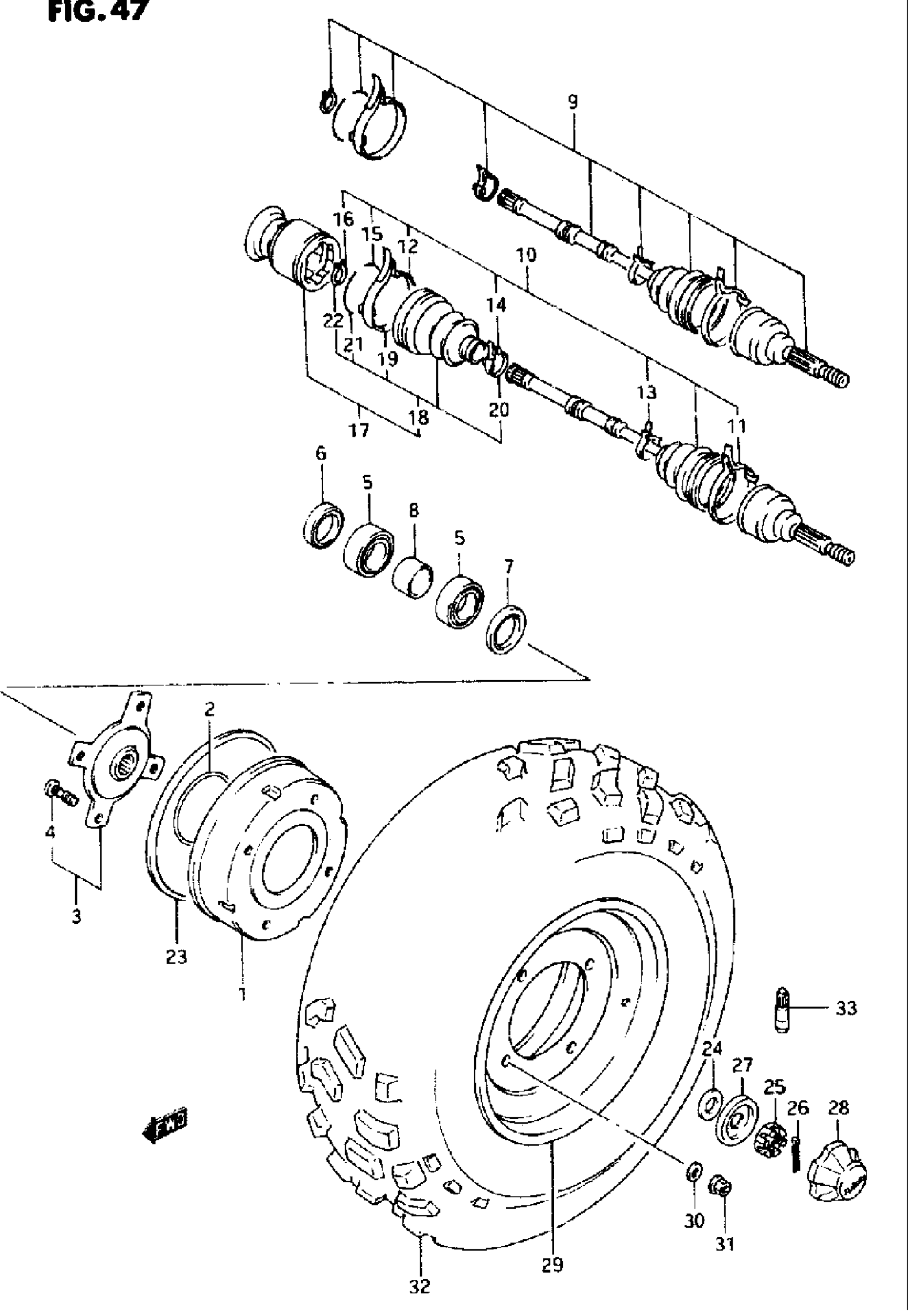

Suzuki LT-4WDX (1997) FRONT WHEEL Diagram

#

Description
Price

1

DRUM, BRAKE

54120-19B10

Unavailable

2

0 RING (ID:79.8, M:2.40)

09280-80001

$3.89

3

HUB, FRONT

54110-19B01

Unavailable

4

BOLT This part replaces 09119-10045.

09119-10045-XC0

$2.38

5

BEARING, FRONT HUB

08123-60067

$29.13

6

DUST SEAL, INNER (38X55X8)

09283-38012

$14.74

7

DUST SEAL, OUTER (38X55X6.4)

09283-38013

$11.86

8

SPACER, FRONT HUB

54731-19B00

$11.24

9

SHAFT ASSY,FRT This part replaces 54918-19B10.

54901-19B13

Unavailable

9

NO DESCRIPTION AVAILABLE This part replaces 54919-19B10.

54902-19B13

Unavailable

10

BOOT SET | OUTER BOOT SET This part replaces 54930-19B11.

54930-19B12

Unavailable

11

CLAMP, WHEEL SIDE OUTER BOOT

44121-60DB0

$14.30

12

CLAMP, SIDE OUTER BOOT

44122-86010

$14.50

13

CLAMP, WHEEL SIDE INNER BOOT

44124-60DB0

$12.47

14

CLAMP, SIDE INNER BOOT

44124-50A20

$12.00

15

CIR CLIP

44112-78010

$8.42

16

SNAP RING

27182-70410

$1.98

17

JOINT SET,DIFF This part replaces 54933-19B13.

54933-19B14

$326.88

18

BOOT SET,DIFF S | INNER BOOT SET This part replaces 54931-19B13.

54931-19B14

$71.15

19

CLAMP, SIDE OUTER BOOT

44122-86010

$14.50

20

CLAMP, SIDE INNER BOOT

44124-50A20

$12.00

21

CLR CLIP

44112-78010

$8.42

22

SNAP RING

27182-70410

$1.98

23

[DUST SEAL, DRUM BRAKE

54124-19B10

$71.63

24

WASHER, HUB

09164-18004

$3.76

25

NUT, HUB

09141-18008

$8.37

26

PIN, COTTER This part replaces 04111-40408.

04111-4040A

$1.49

27

HOLDER, CENTER CAP

64726-19B00

$3.31

28

CAP, WHEEL CENTER

54725-39D00

$14.76

29

RIM. FRONT WHEEL (SILVER)

55310-19B11-12R

Unavailable

30

WASHER,10.5X22X This part replaces 09160-10119.

09160-10143

$2.34

31

NUT This part replaces 08316-10103.

08316-1010B

$2.66

32

TIRE, T/L FRONT (AT22X8-10) (DUNLOP) | TIRE,

55100-19B60

Unavailable

33

VALVE ASSY, WHEEL RIM TR413 | -43130-75150

43130-78030

$9.25
