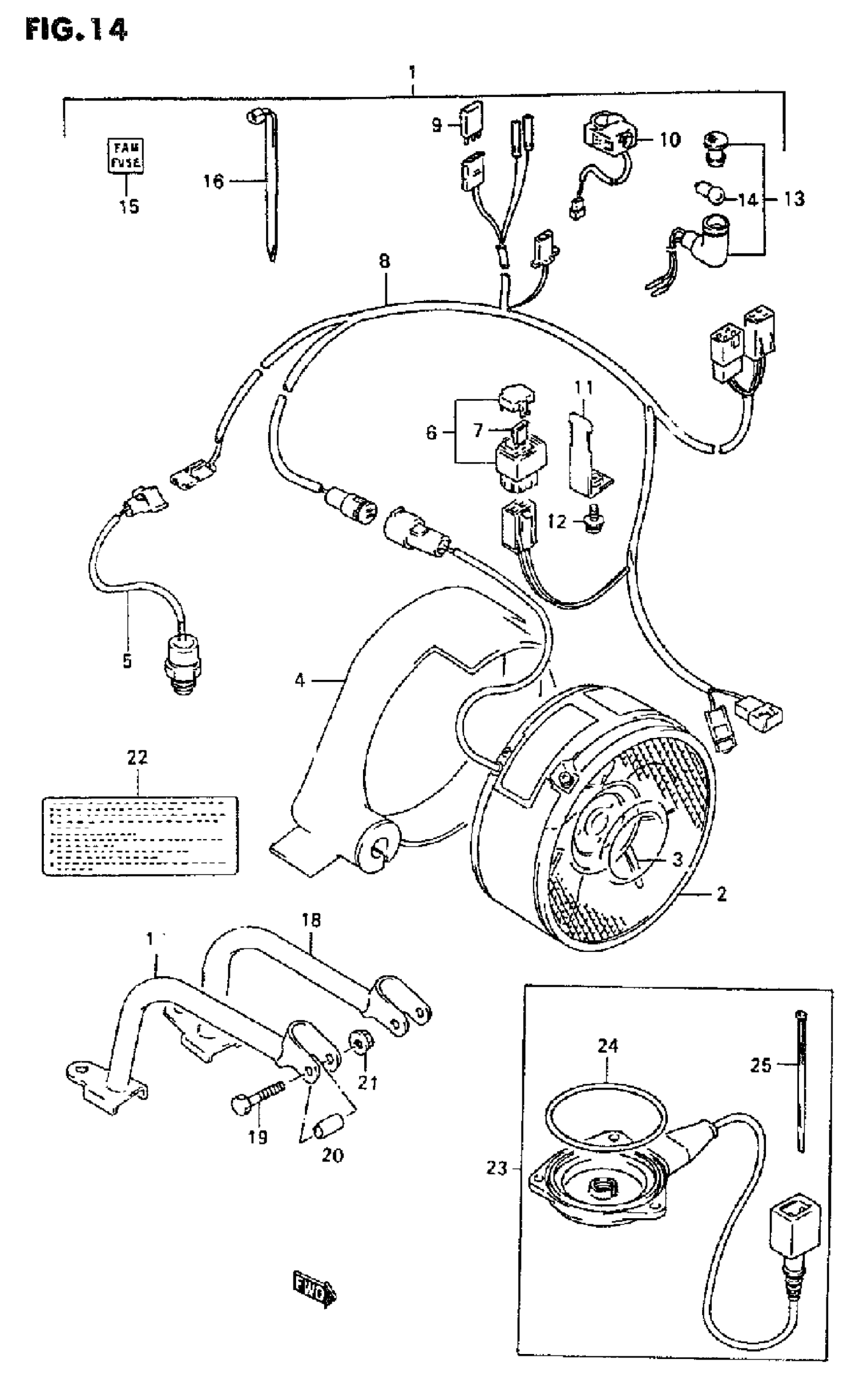

Suzuki LT-4WDX (1997) COOLING FAN (OPTIONAL) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 17000-19850.

17000-19852

Unavailable

2

FAN ASSY, COOLING

17110-19B11

Unavailable

3

FAN

17820-19B10

Unavailable

4

BAND, COOLING FAN

17121-19B01

Unavailable

5

SWITCH, COOLING FAN

17680-19B70

$119.65

6

BOX ASSY, FUSE

36740-24510

Unavailable

7

FUSE (IDA)

09481-10101

$2.07

8

LEAD WIRE

36610-19B70

Unavailable

9

.DIODE This part replaces 36611-38A00.

36611-38A10

$13.16

10

SWITCH ASSY, MANUAL

37910-19B10

Unavailable

11

BRACKET, COOLING FART FUSE

38620-04570

$5.95

12

BOLT (6X12) This part replaces 09118-06103.

09118-06055

$2.80

13

LAMP ASSY, FAN WARNING

36360-19B10

Unavailable

14

BULB (12V, 3.4W)

09471-12001

$1.65

15

LABEL, FART WARNING

36367-19B00

Unavailable

16

CLAMP (L:125)

09407-14403

$2.26

17

TUBE, COOLING FAN RH

41970-19B20

Unavailable

18

TUBE, COOLING FART LH

41980-19B21

Unavailable

19

BOLT (8X35) This part replaces 01550-08353.

01550-0835A

$3.04

20

SPACER (L:19)

09180-08067

$2.41

21

NUT This part replaces 08316-10083.

08316-1008B

$2.66

22

LABEL, CAUTION (GREEN)

68341-19B01-E5Z

Unavailable

23

HEATER SET, ENGINE

16900-19810

Unavailable

24

0 RING (0:2.4, ID:82.0)

09280-82001

$5.18

25

CLAMP

09407-14403

$2.26
