1997 Suzuki LT-4WD Rear Fender Diagram

← All diagrams

Find the part on the Rear Fender diagram for your 1997 Suzuki LT-4WD, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

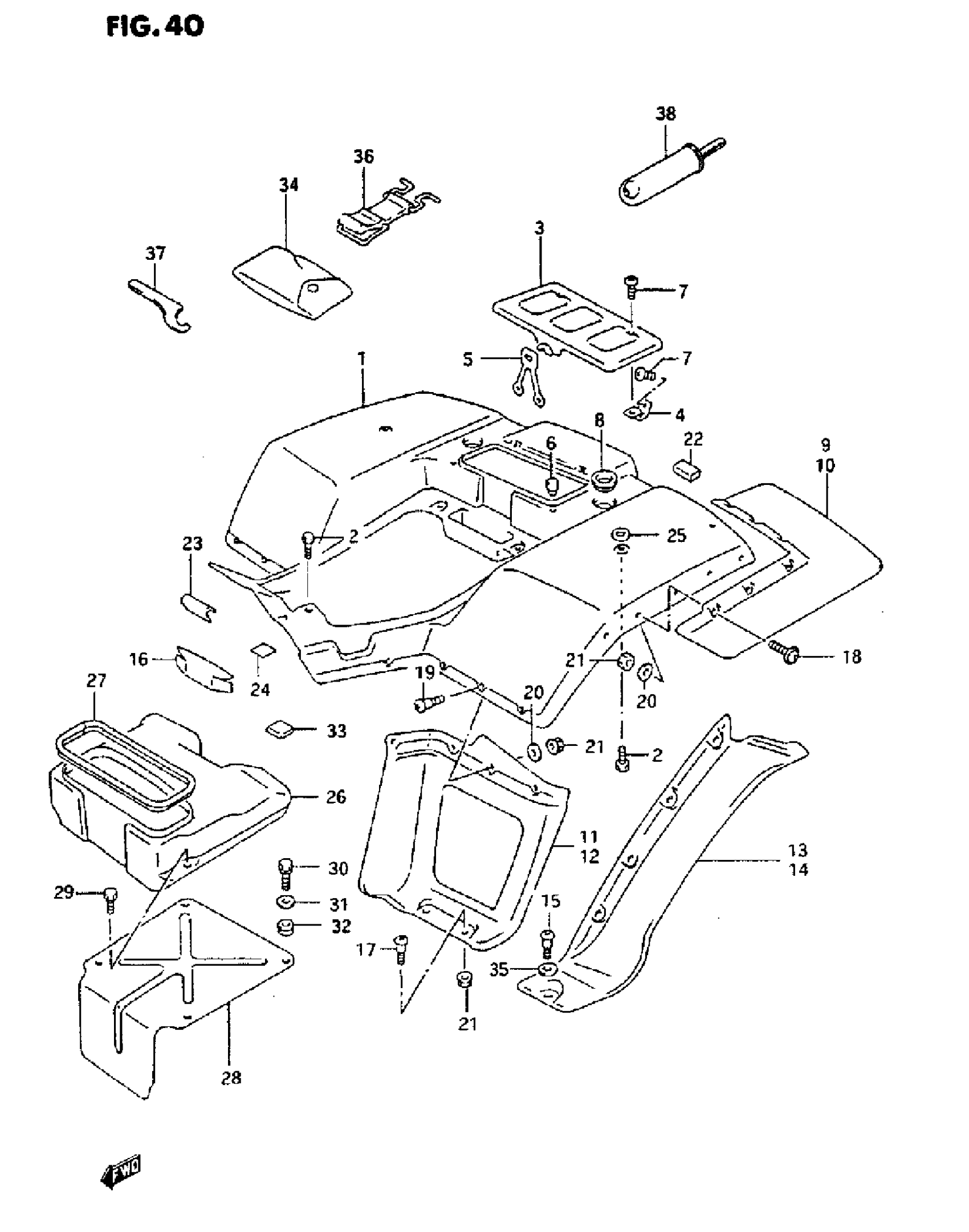

1997 Suzuki LT-4WD Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, REAR (GREER))

63111-19B10-1AT

1
Out of stock

2

BOLT

09118-06006

8
Out of stock

3

LID, FENDER

63195-19B00

1
Out of stock

4

HINGE, LID

63270-19800

—
Out of stock

5

BAND, LID

63196-19B00

1
Out of stock

6

CUSHION This part replaces 09321-06013.

09321-06036

2
Out of stock

7

SCREW (5XLO)

09125-05073

4
Out of stock

8

GROMMET This part replaces 09308-25003.

09308-25005

2
Out of stock

9

MUD GUARD, RH

63331-18B10

1
Out of stock

10

MUD GUARD, LH

63341-18B10

1
Out of stock

11

MUD GUARD, FRONT RH

63351-19B10

1
Out of stock

12

MUD GUARD, FRONT LH

63361-19B10

1
Out of stock

13

EXTENSION, RH

63311-19800

—
Out of stock

14

EXTENSION, LH

63321-19800

—
Out of stock

15

SCREW

09139-05040

2
Out of stock

16

HEAT SHIELD

63355-19B10

1
Out of stock

17

SCREW

09139-05040

4
Out of stock

18

SCREW

09136-05038

24
Out of stock

19

SCREW, FRONT

09139-05038

8
Out of stock

20

WASHER (5.5X20X1.4) This part replaces 09160-05039.

09160-05046

32
Out of stock

21

NUT This part replaces 09159-05026.

09159-05043

38
Out of stock

22

CUSHION

63149-19B00

2
Out of stock

23

SHEET

63261-19B00

2
Out of stock

24

SHEET

63262-19B00

2
Out of stock

25

WASHER

09160-06077

4
Out of stock

26

BOX, REAR

47431-19B00

1
Out of stock

27

MOLDING

92114-37B00

1
Out of stock

28

PLATE, HEAT SHIELD

47432-19B02

1
Out of stock

29

BOLT (6XL4)

09118-06019

2
Out of stock

30

BOLT This part replaces 01570-06163.

01570-0616A

4
Out of stock

31

WASHER

09169-06040

4
Out of stock

32

CUSHION This part replaces 09320-08030.

09320-08511

4
Out of stock

33

CAP (OD:18) This part replaces 09250-10011.

09250-10033

1
Out of stock

34

TOOL ASSY This part replaces 09800-21019.

09800-21075

1
Out of stock

35

WASHER, RR SIDE This part replaces 09160-08107.

09160-08123

6
Out of stock

36

BAND

09462-00090

1
Out of stock

37

CLAMP, WRENCH

09822-00004

1
Out of stock

38

GAUGE ASSY,AIR PRESSUR This part replaces 96200-18A01.

96200-18A02

1
Out of stock
