1996 Suzuki LT-4WD Steering Shaft Diagram

← All diagrams

Find the part on the Steering Shaft diagram for your 1996 Suzuki LT-4WD, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

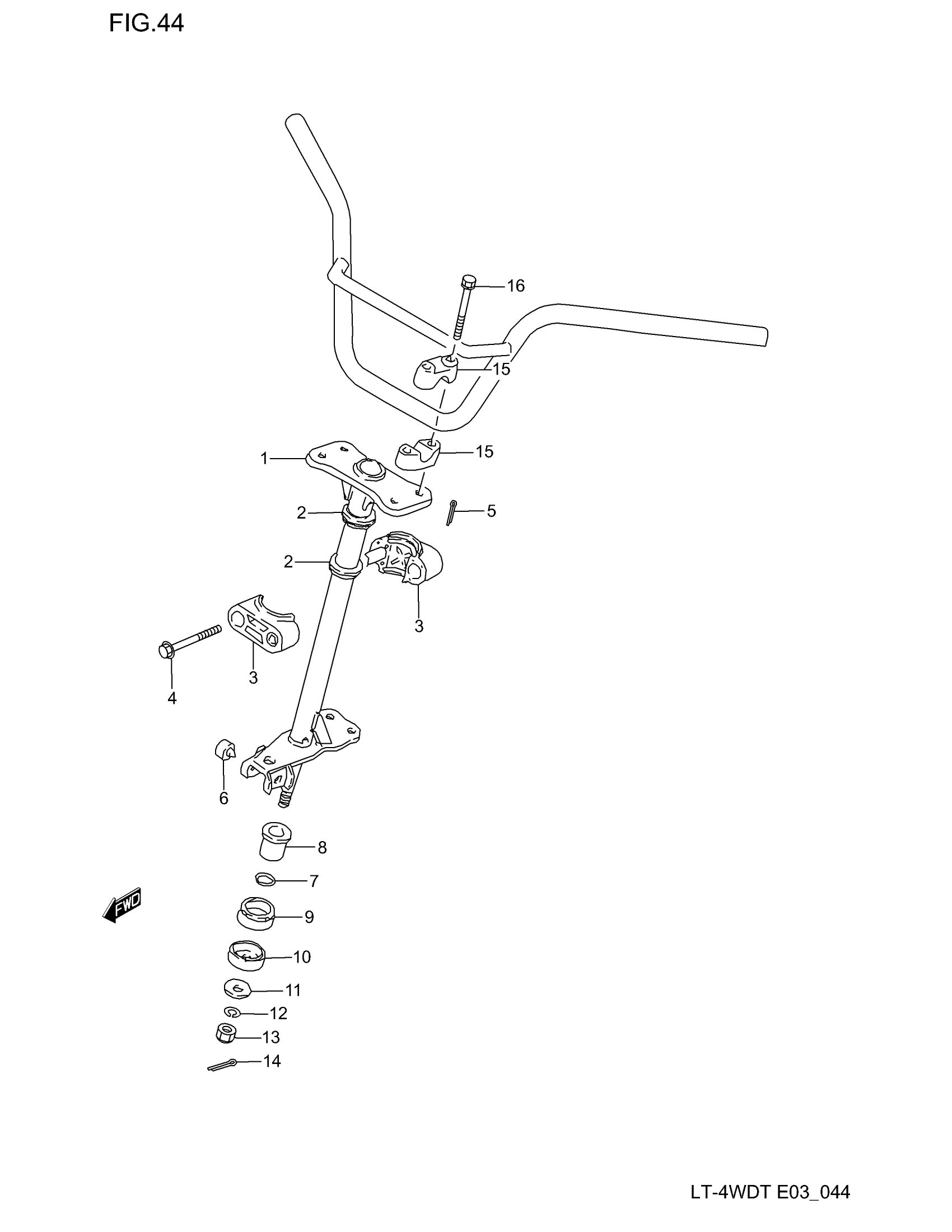

1996 Suzuki LT-4WD Steering Shaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT, STEERING

51650-19B01

1
Out of stock

2

DUST SEAL, STEERING

51678-24500

2
Out of stock

3

HOLDER,STEERING SHAFT

51670-24500

2
Out of stock

4

BOLT

09103-08116

2
Out of stock

5

COTTER PIN This part replaces 04111-20208.

04111-2020A

2
Out of stock

6

CUSHION, STEERING SHAFT

09321-08020

2
Out of stock

7

O RING

09280-17003

1
Out of stock

8

BUSH, STEERING SHAFT LOWER (17X26X36.9) This part replaces 51661-19B10.

51661-09F00

1
Out of stock

9

SEAL,DUST This part replaces 51662-19A01.

51662-05G01

1
Out of stock

10

SEAL,DUST This part replaces 51663-24500.

51663-05G01

1
Out of stock

11

WASHER (12.5X32X4.5) This part replaces 09160-12043.

09160-12094

1
Out of stock

12

LOCK WASHER

09162-12006

1
Out of stock

13

NUT This part replaces 08319-21125.

08319-2112B

1
Out of stock

14

COTTER PIN This part replaces 04111-20208.

04111-2020A

1
Out of stock

15

CLAMP, HANDLEBAR (BLACK)

56211-27200-291

4
Out of stock

16

BOLT This part replaces 01570-08553.

01570-0855B

4
Out of stock
