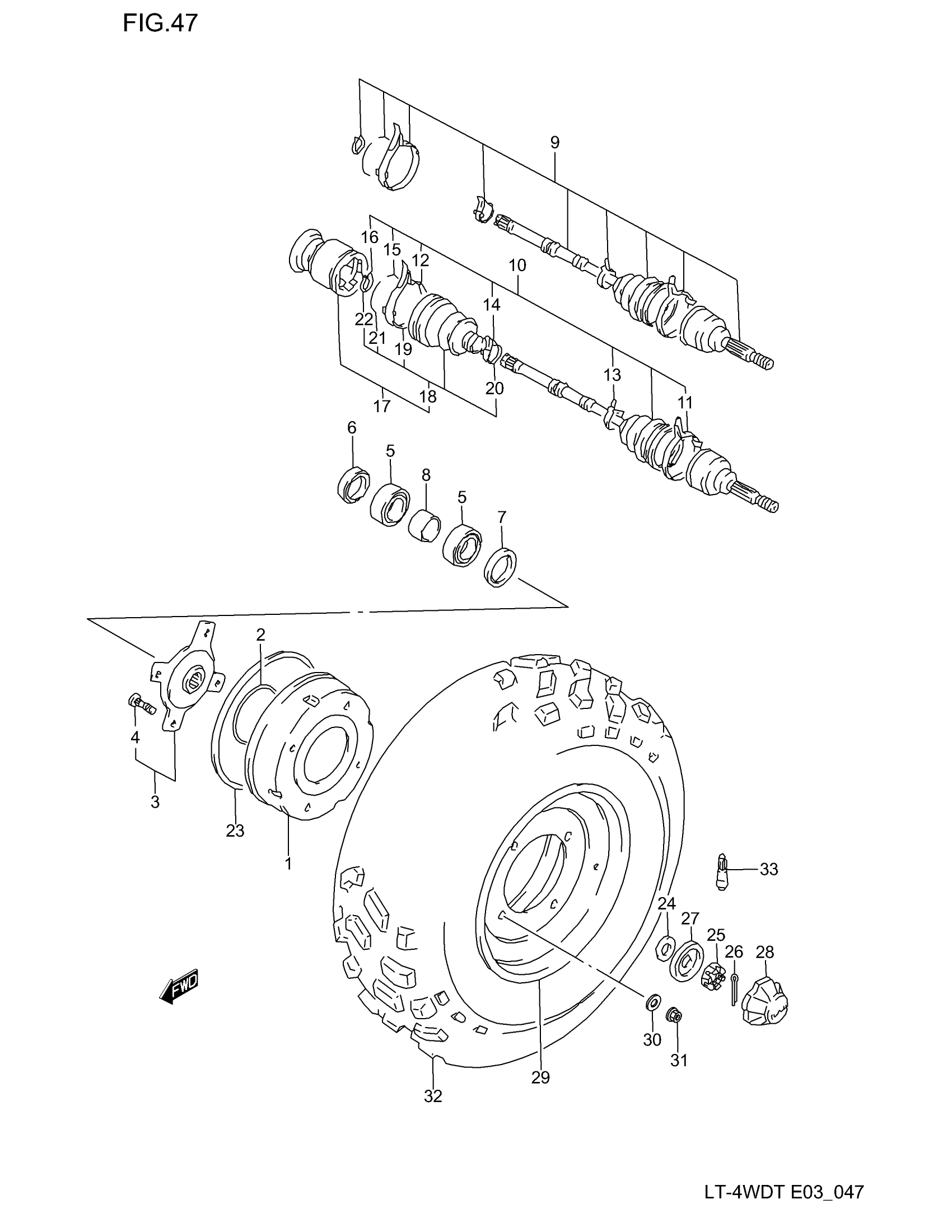

Suzuki LT-4WD (1996) FRONT WHEEL Diagram

#

Description
Price

1

DRUM, BRAKE

54120-19B10

Unavailable

2

O RING

09280-80001

$3.52

3

HUB, FRONT | Includes Item(s) 4

54110-19B01

Unavailable

4

BOLT This part replaces 09119-10045.

09119-10045-XC0

$2.58

5

BEARING, FRONT HUB

08123-60067

$26.29

6

DUST SEAL, INNER

09283-38012

$13.30

7

DUST SEAL, OUTER

09283-38013

$10.86

8

SPACER, FRONT HUB

54731-19B00

$10.57

9

SHAFT ASSY,FRT This part replaces 54918-19B10.

54901-19B13

Unavailable

9

NO DESCRIPTION AVAILABLE This part replaces 54919-19B10.

54902-19B13

Unavailable

10

BOOT SET | OUTER BOOT SET; Includes Item(s) 11 - 16 This part replaces 54930-19B11.

54930-19B12

Unavailable

11

CLAMP, WHEEL SIDE OUTER BOOT

44121-60DB0

$16.15

12

CLAMP, SIDE OUTER BOOT

44122-86010

$16.37

13

CLAMP, WHEEL SIDE INNER BOOT

44124-60DB0

$14.07

14

CLAMP, SIDE INNER BOOT

44124-50A20

$14.07

15

CIR CLIP

44112-78010

$9.50

16

SNAP RING

27182-70410

$2.25

17

JOINT SET,DIFF | Includes Item(s) 18 - 22 This part replaces 54933-19B13.

54933-19B14

$363.75

18

BOOT SET,DIFF S | INNER BOOT SET This part replaces 54931-19B13.

54931-19B14

$79.92

19

CLAMP, SIDE OUTER BOOT

44122-86010

$16.37

20

CLAMP, SIDE INNER BOOT

44124-50A20

$14.07

21

CIR CLIP

44112-78010

$9.50

22

SNAP RING

27182-70410

$2.25

23

DUST SEAL, DRUM BRAKE

54124-19B10

$80.85

24

WASHER, HUB

09164-18004

$3.38

25

NUT, HUB (WHITE)

09141-18008

$7.67

26

PIN, COTTER This part replaces 04111-40408.

04111-4040A

$1.37

27

HOLDER, CENTER CAP

64726-19B00

$3.12

28

CAP, WHEEL CENTER

54725-39D00

$13.90

29

RIM, FRONT WHEEL (SILVER)

55310-19B11-12R

Unavailable

30

WASHER,10.5X22X This part replaces 09160-10119.

09160-10143

$2.37

31

NUT This part replaces 08316-10103.

08316-1010B

$2.65

32

TIRE, T/L FRONT (AT22X8-10) (DUNLOP)

55100-19B60

Unavailable

33

VALVE ASSY, WHEEL RIM | ?43130-75150

43130-78030

$8.71
