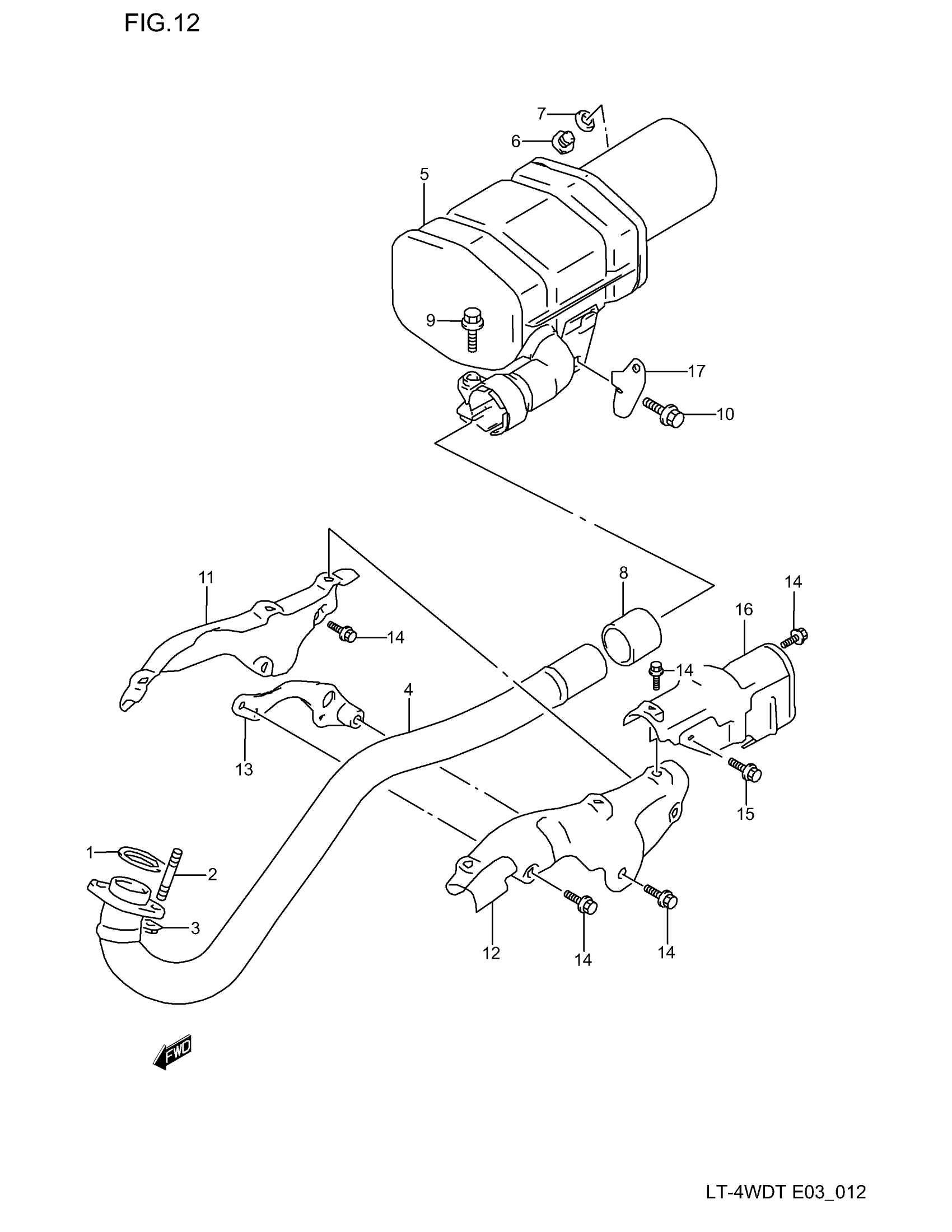

Suzuki LT-4WD (1996) MUFFLER Diagram

#

Description
Price

1

GASKET, EXHAUST PIPE

14181-42A00

$10.93

2

STUD BOLT This part replaces 01421-08208.

01421-0820A

$1.91

3

NUT This part replaces 08361-15083.

08361-1508A

$2.02

4

PIPE, EXHAUST This part replaces 14150-19B71.

14150-19BA0

Unavailable

5

MUFFLER This part replaces 14310-19B73.

14310-19BA0

$365.98

6

PLUG, DRAIN

09247-12103

$2.84

7

GASKET

09168-12002

$1.59

8

GASKET, MUFFLER

14771-25C00

Unavailable

9

BOLT This part replaces 01550-08403.

01550-0840A

$3.05

10

BOLT

09118-08119

$3.78

11

GUARD, EXHAUST INNER

14780-19B70

Unavailable

12

GUARD, EXHAUST OUTER

14790-39D03

$141.94

13

STAY, EXHAUST GUARD

14770-19B70

$23.90

14

BOLT This part replaces 01547-06103.

01547-0610B

$2.45

15

BOLT This part replaces 01547-06123.

01547-0612B

$1.49

16

COVER, MUFFLER CONNECTOR

14775-19B80

Unavailable

17

STAY, CONNECTOR COVER

14760-19B80

$35.87
