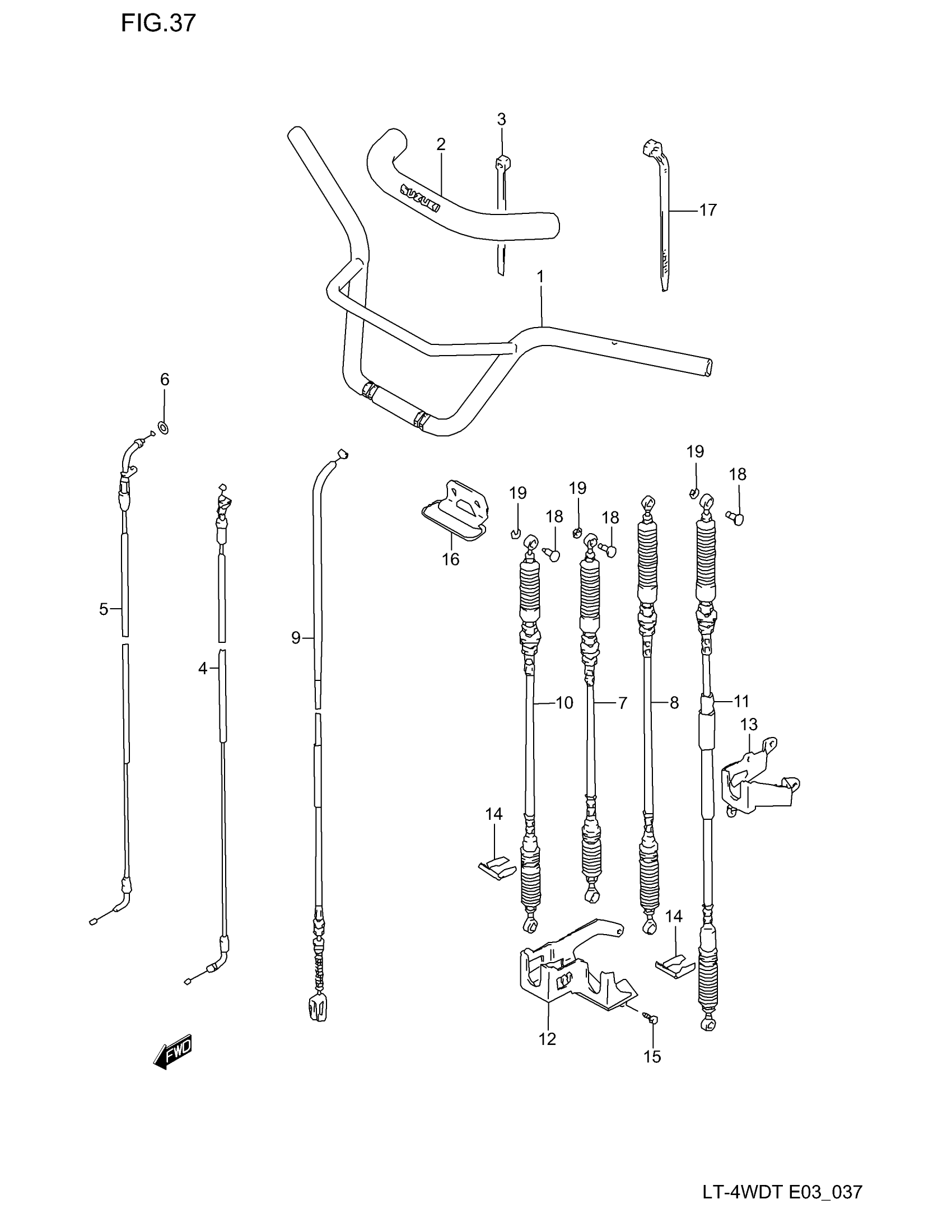

Suzuki LT-4WD (1996) HANDLEBAR - CABLE Diagram

#

Description
Price

1

HANDLEBAR This part replaces 56110-19B31-291.

56110-19B32-291

Unavailable

2

PAD, CROSS (OD:30)

56172-19B01-291

Unavailable

3

BAND (L:145)

09407-14407

$3.57

4

CABLE ASSY, THROTTLE

58300-19B20

$21.76

5

CABLE, STARTER

58410-19B10

$34.73

6

WASHER This part replaces 09161-05015.

09320-06503

$2.63

7

CABLE, T/M GEAR SHIFT

58680-19B21

$208.75

8

CABLE, TRANSFER SHIFT

58690-19B01

$155.28

9

CABLE, PARKING BRAKE

58810-19B02

$45.20

10

CABLE, REVERSE This part replaces 58840-19B10.

58840-39DA0

Unavailable

11

CABLE, SUB T/M SHIFT

58880-19B11

Unavailable

12

BRACKET, CONTROL CABLE

58870-19B00

Unavailable

13

BRACKET, CONTROL CABLE

58873-19B11

Unavailable

14

CLIP

09383-19003

$4.68

15

BOLT This part replaces 01547-06163.

01547-0616B

$2.45

16

GUIDE, CABLE

58620-19B10

Unavailable

17

CLAMP, L:95

09407-11401

$2.63

17

CLAMP, L:125

09407-14403

$2.26

17

CLAMP This part replaces 09407-18403.

09407-18402

$2.19

18

PIN

09208-08008

$2.53

19

CIRCLIP This part replaces 08332-11063.

08332-1106A

$1.49
