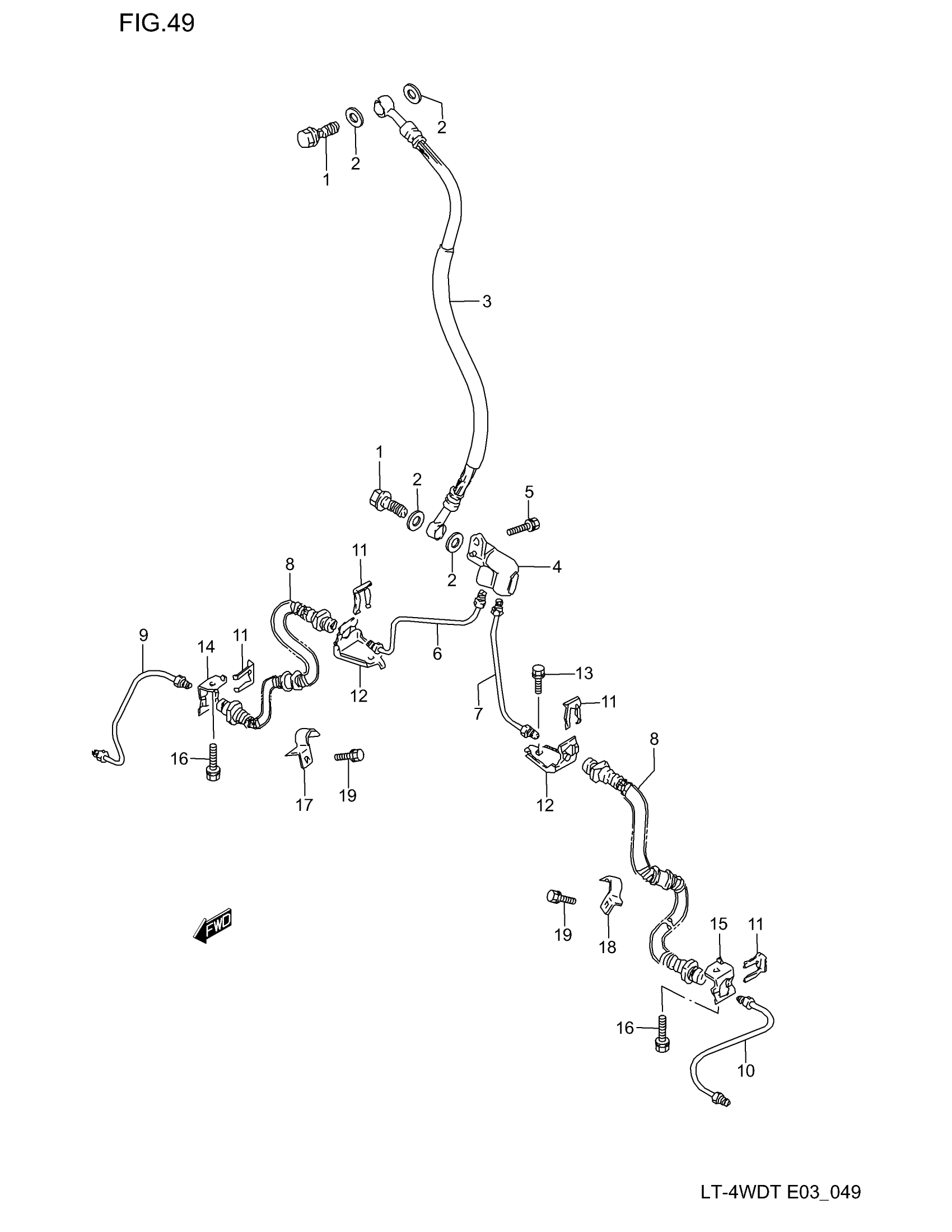

Suzuki LT-4WD (1996) FRONT BRAKE HOSE Diagram

#

Description
Price

1

UNION This part replaces 09360-10039.

09360-10061

$6.43

2

WASHER (10X15X1.5)

09161-10009

$1.84

3

HOSE This part replaces 59480-19B01.

59480-19B03

$61.92

4

JOINT, THREE WAY This part replaces 59490-19A00.

59491-19A10

$53.33

5

BOLT This part replaces 01570-06163.

01570-0616A

$2.23

6

PIPE, BRAKE NO.1 RH

59250-19B00

$12.40

7

PIPE, BRAKE NO.1 LH

59450-19B00

$12.40

8

HOSE,FR BRAKE N This part replaces 59240-19B02.

59240-19B03

Unavailable

9

PIPE, BRAKE NO.2 RH

59250-19B10

Unavailable

10

PIPE, BRAKE NO.2 LH

59450-19B10

Unavailable

11

E RING This part replaces 09383-13001.

09383-13003

$2.30

12

GUIDE, HOSE

59268-19B00

Unavailable

13

BOLT This part replaces 01570-06123.

01570-0612A

$2.63

14

GUIDE, HOSE RH

59261-19B00

Unavailable

15

GUIDE, HOSE LH

59271-19B00

Unavailable

16

BOLT This part replaces 01570-06123.

01570-0612A

$2.63

17

CLAMP, HOSE RH This part replaces 59266-19B01.

59266-19B02

Unavailable

18

CLAMP, HOSE LH This part replaces 59276-19B01.

59276-19B02

Unavailable

19

BOLT This part replaces 01570-06103.

01570-0610A

Unavailable
