1996 Suzuki LT-4WD Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 1996 Suzuki LT-4WD, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

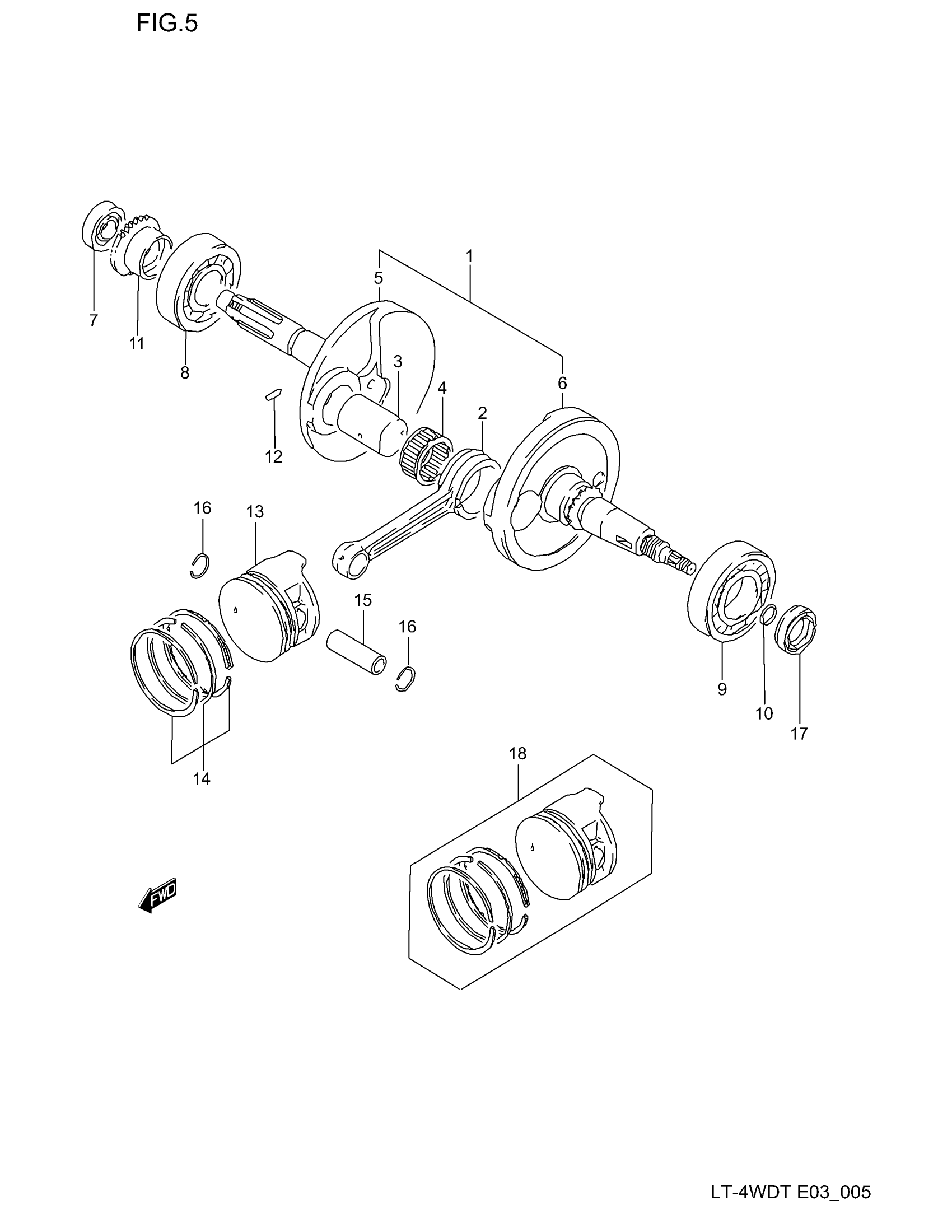

1996 Suzuki LT-4WD Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSY | Includes Item(s) 2 - 6

12200-19B20

1
Out of stock

2

ROD, CONNECTING This part replaces 12161-19B02.

12161-19B03

1
Out of stock

3

PIN, CRANK This part replaces 12210-22A02.

12210-22A03

1
Out of stock

4

BEARING (30X39X18)

09263-30033-0B0

1
Out of stock

5

CRANKSHAFT, RH This part replaces 12220-19B20.

12220-19B21

1
Out of stock

6

CRANKSHAFT LH This part replaces 12261-19B20.

12261-19B21

1
Out of stock

7

BEARING, RH (15X35X11)

09262-15014

1
Out of stock

8

BEARING, MDL (28X68X18)

09262-28014

1
Out of stock

9

BEARING, LH (35X72X17)

09262-35038

1
Out of stock

10

O RING

09280-12009

1
Out of stock

11

GEAR, OIL PUMP DRIVE (NT:30)

16321-19B00

1
Out of stock

12

PIN (4X13.8)

04221-04089

1
Out of stock

13

PISTON

12111-19B01

1
Out of stock

14

RING SET, PISTON

12140-19B10

1
Out of stock

15

PIN, PISTON

12151-22A02

1
Out of stock

16

CIRCLIP

09381-16004

2
Out of stock

17

OIL SEAL (22X35X7)

09289-22008

1

$22.57

In stock

18

PISTON SET (OS:0.5) | OPT

12100-19B00-050

1
Out of stock

18

PISTON SET (OS:1.0) | OPT

12100-19B00-100

1
Out of stock
