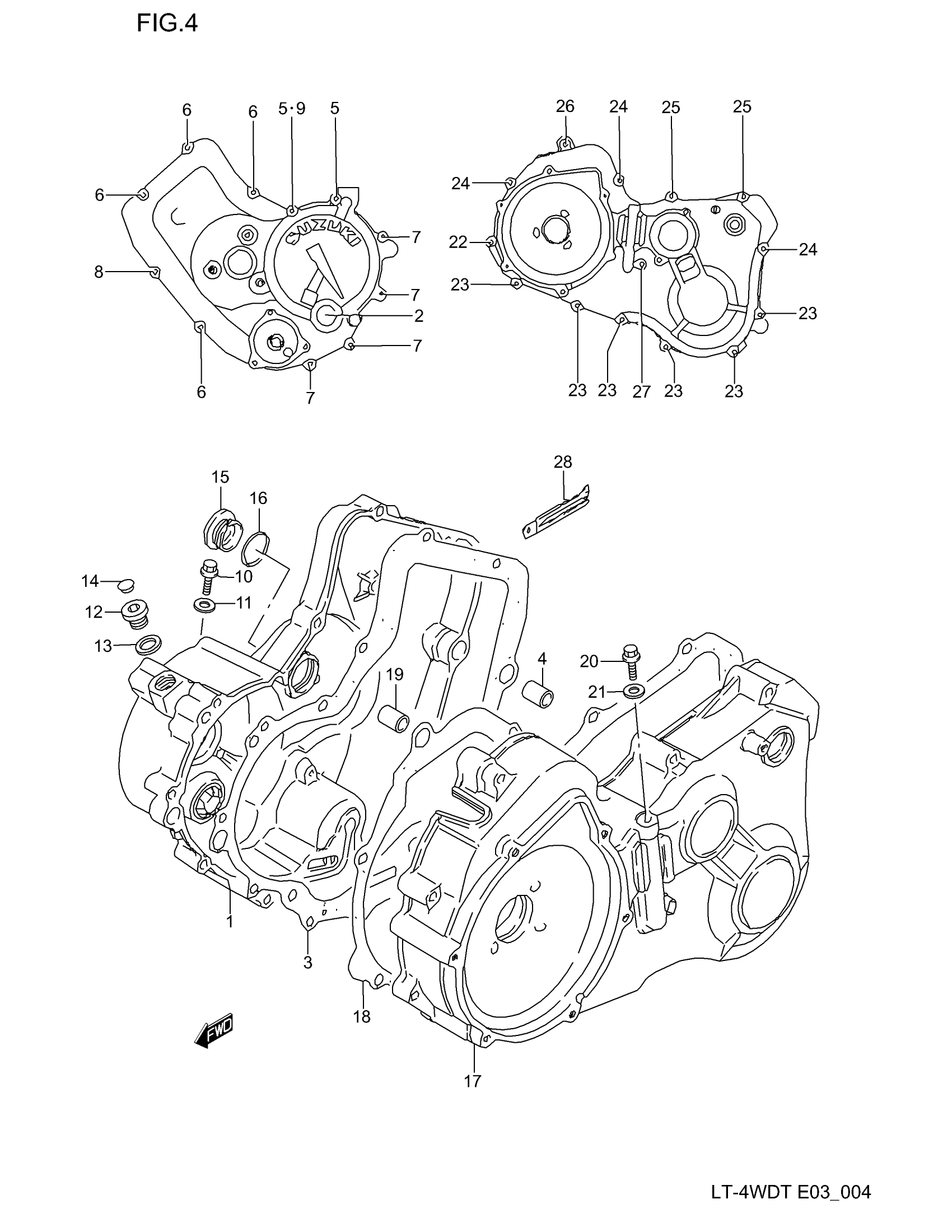

Find the part on the Crankcase Cover diagram for your 1996 Suzuki LT-4WD, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Suzuki LT-4WD Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CLUTCH | Includes Item(s) 2

11340-19B20

1
Out of stock

2

LENS, OIL CHECK

11971-33210

1
Out of stock

3

GASKET, CLUTCH This part replaces 11482-19B12.

11482-19B13

1
Out of stock

4

PIN (L:18)

04211-13189

2
Out of stock

5

BOLT (6X100)

09103-06501

2
Out of stock

6

BOLT, WATER PUMP This part replaces 01547-06353.

01547-0635B

4
Out of stock

7

BOLT This part replaces 01547-06403.

01547-0640B

4
Out of stock

8

BOLT This part replaces 01547-06503.

01547-0650B

1
Out of stock

9

GASKET

09168-06023

1
Out of stock

10

BOLT (8X12) This part replaces 01550-08123.

01550-0812A

2
Out of stock

11

GASKET

09168-08015

2

$2.92

In stock

12

PLUG, OIL DRAIN This part replaces 09248-16010.

09248-16012

1
Out of stock

13

GASKET

09168-16002

1
Out of stock

14

CAP

09250-08012

1
Out of stock

15

CAP, CLUTCH ADJUST

09259-30005

1
Out of stock

16

O RING

09280-26006

1
Out of stock

17

COVER, TRANSFER This part replaces 11351-19B11.

11351-19B12

1
Out of stock

18

GASKET, TRANSFER COVER

11483-19B13

1
Out of stock

19

PIN (L:18)

04211-13189

2
Out of stock

20

BOLT This part replaces 01550-06103.

01550-0610A

1
Out of stock

21

GASKET

09168-06023

1
Out of stock

22

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

1
Out of stock

23

BOLT, WATER PUMP This part replaces 01547-06353.

01547-0635B

6
Out of stock

24

BOLT This part replaces 01547-06403.

01547-0640B

3
Out of stock

25

BOLT This part replaces 01547-06503.

01547-0650B

2
Out of stock

26

BOLT This part replaces 01547-06553.

01547-0655B

1
Out of stock

27

BOLT This part replaces 01547-06653.

01547-0665B

1
Out of stock

28

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

1
Out of stock
