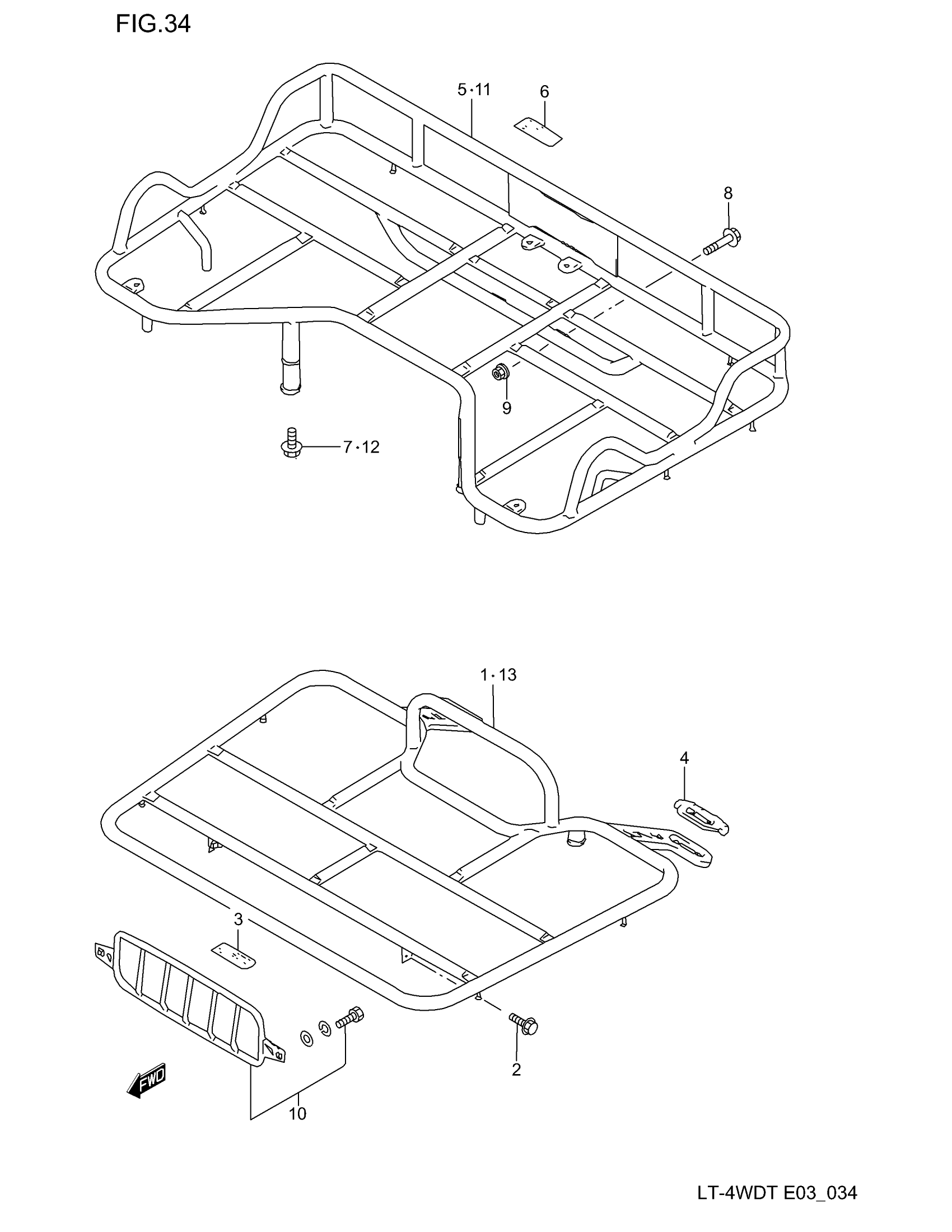

Suzuki LT-4WD (1996) CARRIER Diagram

#

Description
Price

1

CARRIER, FRONT

46410-39D50

Unavailable

2

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

$2.32

3

LABEL,FRONT CAR This part replaces 68381-19B00.

68381-19B01

$5.42

4

KNEE PAD, FRONT CARRIER

46480-19B00

Unavailable

5

CARRIER, REAR

46310-39D50

Unavailable

6

LABEL,REAR CARR This part replaces 68391-19B00.

68391-19B01

$5.60

7

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

$2.32

8

BOLT, REAR

09103-08332

$4.60

9

NUT This part replaces 08319-31085.

08319-3108A

$2.32

10

GUARD SET, HEAD LAMP | OPT

48500-19841

Unavailable

11

CARRIER, REAR | OPT This part replaces 46300-19B03.

46310-39D50

Unavailable

12

BOLT (8X12) | OPT This part replaces 01550-08123.

01550-0812A

$2.32

13

CARRIER, FRONT | OPT This part replaces 46400-19B02.

46410-39D50

Unavailable
