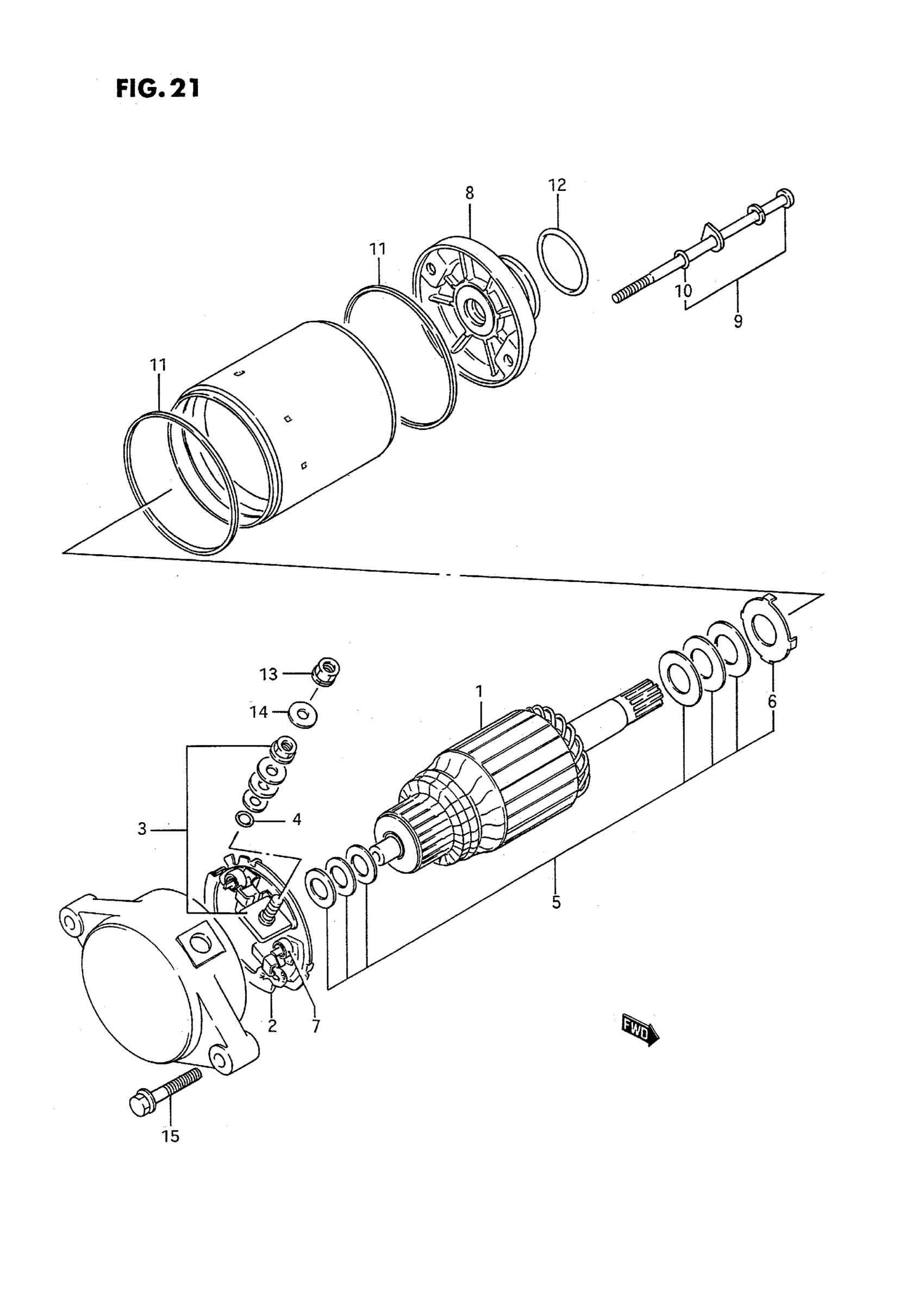

Suzuki LT-4WD (1995) STARTING MOTOR (%E.NO.125080) Diagram

#

Description
Price

MOTOR ASSY, STARTING | Includes Item(s) 1 - 11 This part replaces 31100-19B00.

31100-19B20

$649.60

1

ARMATURE

31311-19B00

Unavailable

2

HOLDER SET, BRUSH (-)

31132-31300

Unavailable

3

TERMINAL SET, BRUSH (+)

31130-31300

Unavailable

4

O RING

31143-49040

$3.71

5

SHIM SET

31170-19B00

Unavailable

6

SHIM SET This part replaces 31360-19B00.

31170-19B00

Unavailable

7

SPRING, BRUSH

31135-31300

$4.96

8

BRACKET SET

31150-19B00

Unavailable

9

BOLT SET

31280-31300

Unavailable

10

O RING

31143-49040

$3.71

11

O RING This part replaces 31264-31300.

31264-32E00

$6.68

12

.O-RING (D:3,ID:24.5)

09280-24003

$1.55

13

NUT This part replaces 08361-35066.

08361-3506A

$1.80

14

.WASHER (6.5X16X1) This part replaces 09160-06003.

09160-06129

$2.30

15

BOLT

01547-06257

$2.03
