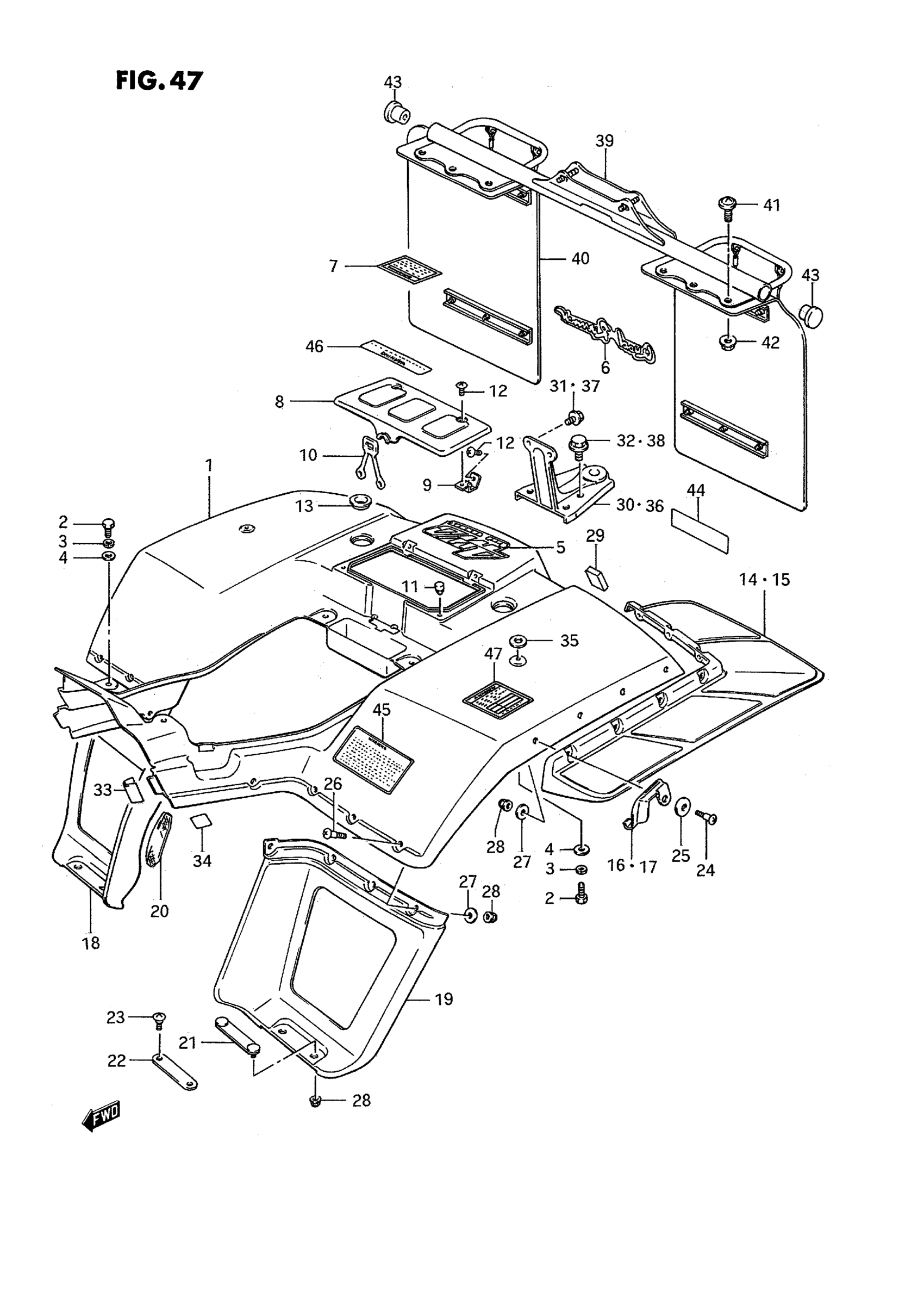

Suzuki LT-4WD (1995) REAR FENDER (MODEL H/J/K/L) Diagram

#

Description
Price

1

FENDER, REAR (ORANGE) This part replaces 63111-19B00-25G.

63111-19X50-25G

Unavailable

2

BOLT This part replaces 01107-06163.

01500-0616A

$1.78

3

LOCK WASHER This part replaces 08321-21063.

08321-0106A

$1.84

4

WASHER, FRONT This part replaces 09160-06004.

09160-06134

$1.91

5

EMBLEM, 4WD | MODEL H

68151-19B10-7ZG

Unavailable

6

EMBLEM | MODEL J

68171-19B30-9AJ

Unavailable

7

LABEL, WARNING | MODEL L

68367-04620

Unavailable

8

LID, FENDER

63195-19B00

Unavailable

9

HINGE, LID

63270-19B00

Unavailable

10

BAND, LID

63196-19B00

Unavailable

11

CUSHION This part replaces 09321-06013.

09321-06036

$1.52

12

SCREW This part replaces 02142-05104.

02142-0510B

$1.78

13

GROMMET This part replaces 09308-25003.

09308-25005

$3.88

14

MUD GUARD, RH This part replaces 63331-18B01.

63331-18B10

Unavailable

15

MUD GUARD, LH This part replaces 63341-18B01.

63341-18B10

Unavailable

16

PLATE | MODEL K/L

63335-19B01

Unavailable

17

PLATE | MODEL K/L

63345-19B01

Unavailable

18

MUD GUARD, FRONT RH

63351-19B01

Unavailable

19

MUD GUARD, FRONT LH

63361-19B00

Unavailable

20

HEAT SHIELD | MODEL H This part replaces 63355-19B00.

63355-19B10

Unavailable

20

HEAT SHIELD | MODEL J/K/L

63355-19B10

Unavailable

21

PLATE, FRONT | MODEL H This part replaces 63340-19B01.

63341-19B10

Unavailable

22

PLATE, FRONT | MODEL J/K/L

63341-19B10

Unavailable

23

SCREW | MODEL J/K/L

09139-05040

$2.38

24

SCREW, LOWER This part replaces 09139-05036.

09139-05038

$2.06

25

WASHER (6.5X18X1.6) This part replaces 09160-07011.

09160-06109

$1.49

26

SCREW, FRONT

09139-05038

$2.06

27

WASHER (5.5X20X1.4) This part replaces 09160-05039.

09160-05046

$1.92

28

NUT | MODEL H This part replaces 08319-31056.

08319-3105B

$3.55

28

NUT | MODEL J/K/L This part replaces 09159-05026.

09159-05043

$2.22

29

CUSHION

63149-19B00

Unavailable

30

PLATE, TRAILER | MODEL J/K/L

95210-20B00

Unavailable

31

BOLT (8X16) | MODEL J/K/L This part replaces 01517-08165.

01550-0816A

$2.32

32

BOLT, PROP SHAFT REAR | MODEL J/K/L This part replaces 01517-10205.

01550-1020A

$3.05

33

SHEET

63261-19B00

Unavailable

34

SHEET

63262-19B00

Unavailable

35

WASHER (6.5X20X1.2) This part replaces 09160-06038.

09160-06077

$1.91

36

PLATE, TRAILER | MODEL H,OPT; Includes Item(s) 37 - 38

95200-19840

Unavailable

37

BOLT (8X16) This part replaces 01517-08165.

01550-0816A

$2.32

38

BOLT, PROP SHAFT REAR This part replaces 01517-10205.

01550-1020A

$3.05

39

STAY SET, MUD FLAP REAR | OPT; Includes Item(s) 40 - 43

63400-19842

Unavailable

40

MUD FLAP | OPT

63431-19B50

Unavailable

41

SCREW | OPT This part replaces 02152-06165.

02112-0616A

$1.49

42

NUT | OPT This part replaces 08319-31065.

08319-3106A

$2.03

43

PLUG | OPT

09250-10006

$2.38

44

LABEL, WARNING

68617-20B00

Unavailable

45

NO DESCRIPTION AVAILABLE | MODEL H/J/K This part replaces 68366-19B00-7ZS.

68366-19B60-7ZS

Unavailable

46

LABEL This part replaces 68614-18900.

68391-14D00

Unavailable

47

LABEL, TIRE AIR PRESSURE | MODEL K/L

68332-19B61

Unavailable
