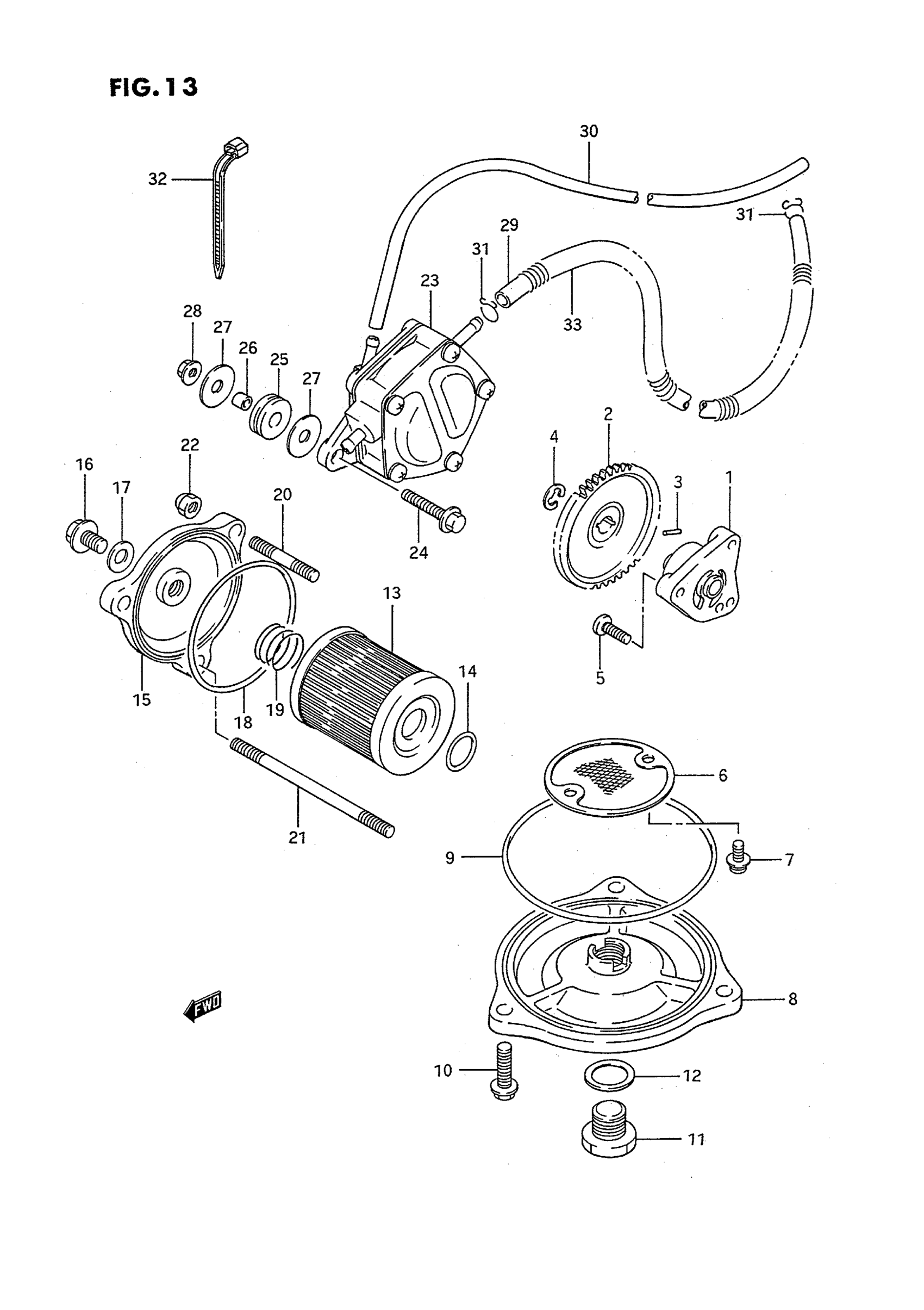

Suzuki LT-4WD (1995) OIL PUMP - FUEL PUMP Diagram

#

Description
Price

1

PUMP, ENGINE OIL

16400-19B00

$169.35

2

GEAR, DRIVEN (NT:47)

16331-20B00

$85.15

3

PIN

09261-02008

$1.65

4

CIRCLIP | MODEL H/J/K/L/M/N/P This part replaces 08332-11066.

08332-1106A

$1.49

4

CIRCLIP | MODEL R/S This part replaces 08332-11063.

08332-1106A

$1.49

5

SCREW | MODEL H/J/K/L/M/N/P

02112-06207

$1.78

5

SCREW | MODEL R/S This part replaces 02112-06203.

02112-0620A

$1.49

6

STRAINER, ENGINE OIL

16520-05202

$5.80

7

SCREW | MODEL H/J/K/L/M/N/P This part replaces 02112-75126.

02112-7512A

$2.42

7

SCREW | MODEL R/S This part replaces 02112-75123.

02112-7512A

$2.42

8

CAP, OIL STRAINER

16523-38200

$27.85

9

O RING (D:2.4,ID:82)

09280-82001

$5.18

10

BOLT | MODEL H/J/K/L/M/N/P

01547-06207

$2.01

10

..BOLT | MODEL R/S This part replaces 01547-06203.

01547-0620B

$2.45

11

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

$5.24

12

GASKET (14.1X18X1.5) | MODEL H/J/K/L/M/N/P

09168-14004

$1.83

12

GASKET (13.8X18.8X0.4) | MODEL R/S

09168-14002

$2.26

13

FILTER ASSY, ENG OIL

16510-25C00

$7.80

14

O RING (D:1.9,ID:13)

09280-13004

$2.17

15

CAP, OIL FILTER | MODEL H/J/K/L/M/N/P/R This part replaces 16512-24502.

16512-22A00

$25.60

15

CAP, OIL FILTER | MODEL S

16512-22A00

$25.60

16

BOLT (8X12) | MODEL H/J/K/L/M/N/P This part replaces 01517-08125.

01550-0812A

$2.32

16

BOLT (8X12) | MODEL R/S This part replaces 01550-08123.

01550-0812A

$2.32

17

GASKET

09168-08015

$2.79

18

O RING (D:2.4,ID:52.6)

09280-54001

$3.76

19

SPRING | MODEL H/J/K/L/M/N/P/R This part replaces 48281-85000.

09440-18002

$1.49

19

SPRING | MODEL S

09440-18002

$1.49

20

BOLT,STUD This part replaces 01421-06168.

01421-0616A

$1.91

21

STUD 6 X 75 This part replaces 01421-06758.

01421-0675A

$3.38

22

NUT | MODEL H/J/K/L/M/N/P This part replaces 08313-11065.

08313-1006A

$1.84

22

NUT | MODEL R/S This part replaces 08313-10063.

08313-1006A

$1.84

23

PUMP ASSY,FUEL | MODEL H/J/K/L This part replaces 15100-19B00.

15100-19B02

$85.97

23

PUMP ASSY,FUEL | MODEL M/N/P This part replaces 15100-19B01.

15100-19B02

$85.97

23

PUMP ASSY,FUEL | MODEL R/S This part replaces 15100-19B10.

15100-19B11

$88.92

24

BOLT | MODEL H/J/K/L/M/N/P This part replaces 01517-06256.

01550-0625A

$1.97

24

BOLT | MODEL R/S This part replaces 01550-06253.

01550-0625A

$1.97

25

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

26

SPACER (6.1X9X7.5)

09180-06038

$1.98

27

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

$1.91

28

NUT | MODEL H/J/K/L/M/N/P This part replaces 09159-06017.

08319-31067

$2.03

28

NUT | MODEL R/S This part replaces 08316-10063.

08316-1006B

$2.50

29

HOSE, FUEL | L:1000!750 This part replaces 09352-60103-00A.

09352-60103-00B

$39.52

30

HOSE | MODEL H/J/K This part replaces 09352-50823-00A.

09352-50005-00B

$13.93

30

HOSE(4X7X2000) | MODEL L/M/N/P/R/S L:1000!730 This part replaces 09359-40701-00A.

09359-40703-00B

Unavailable

31

CLIP

09401-10401

$1.49

32

CLAMP (L:235)

09407-25401

$4.66

33

SPRING

09440-13042

$7.84
