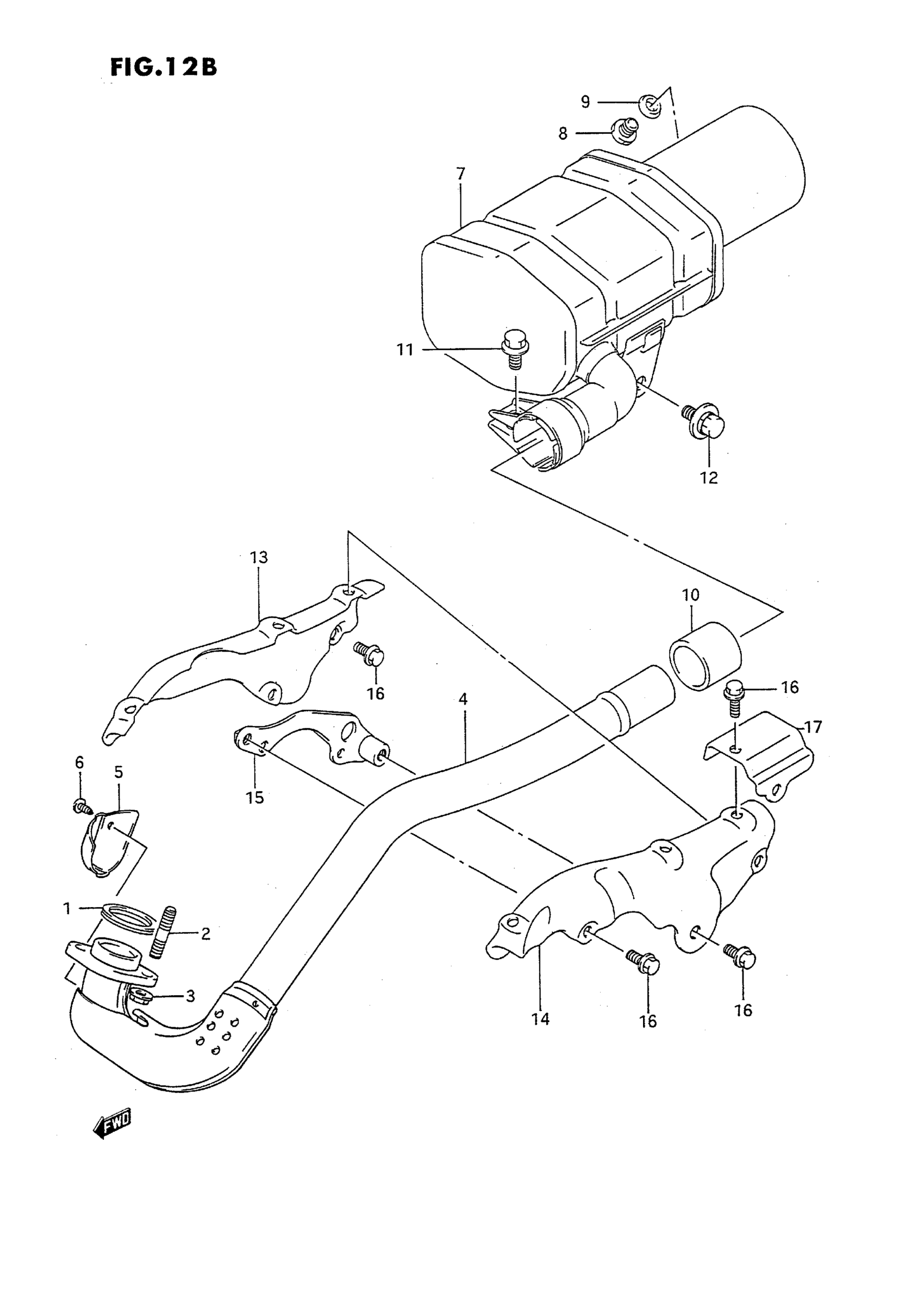

Suzuki LT-4WD (1995) MUFFLER (MODEL L) Diagram

#

Description
Price

1

GASKET, EXHAUST PIPE This part replaces 14181-19B00.

14181-42A00

$10.93

2

STUD BOLT This part replaces 01421-08205.

01421-0820A

$1.91

3

NUT This part replaces 08361-15085.

08361-1508A

$2.02

4

PIPE, EXHAUST

14150-19B90

Unavailable

5

COVER, EXHAUST PIPE

14186-19B71

Unavailable

6

NO DESCRIPTION AVAILABLE This part replaces 03141-05085.

03141-05083

Unavailable

7

MUFFLER | !14310-19B72 USED WITH 01517-08405 This part replaces 14310-19B71.

14310-19BA0

$365.98

8

PLUG, DRAIN

09247-12103

$2.84

9

GASKET

09168-12002

$1.59

10

GASKET, MUFFLER

14771-25C00

Unavailable

11

BOLT This part replaces 01517-08205.

01550-0820A

$2.23

12

BOLT

09118-08119

$3.78

13

GUARD, EXHAUST INNER

14780-19B70

Unavailable

14

GUARD, EXHAUST OUTER This part replaces 14790-39D01.

14790-39D03

$141.94

15

STAY, EXHAUST GUARD

14770-19B70

$23.90

16

BOLT

01547-06107

$1.65

17

COVER, MUFFLER CONNECTOR

14775-19B70

Unavailable
