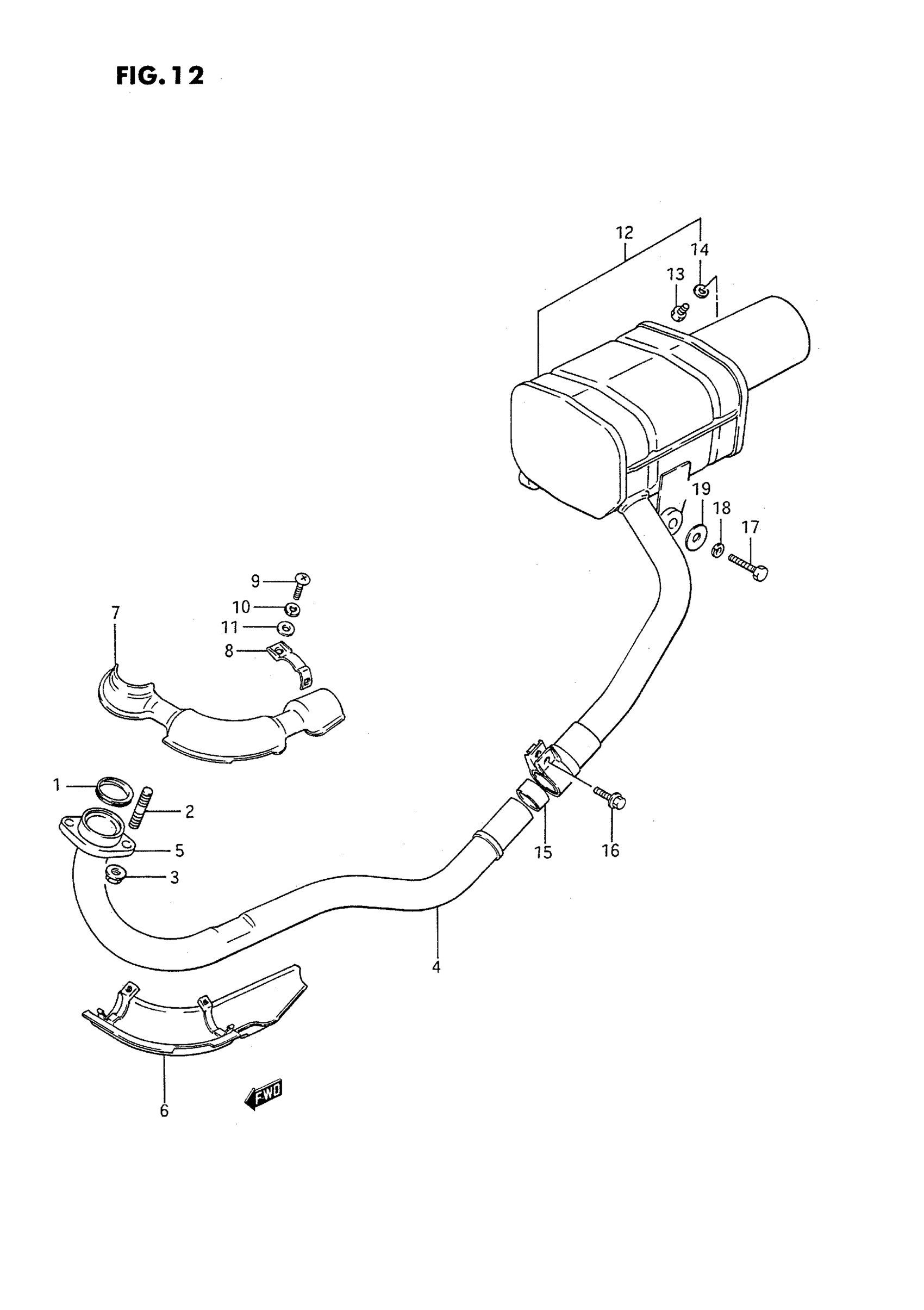

Suzuki LT-4WD (1995) MUFFLER (MODEL H) Diagram

#

Description
Price

1

GASKET, EXHAUST PIPE This part replaces 14181-19B00.

14181-42A00

$10.93

2

STUD BOLT This part replaces 01421-08205.

01421-0820A

$1.91

3

NUT This part replaces 08361-15085.

08361-1508A

$2.02

4

PIPE, EXHAUST | Includes Item(s) 5

14150-19B01

Unavailable

5

CLAMP

14182-05340

Unavailable

6

COVER, EXHAUST PIPE UNDER

14180-19B10

Unavailable

7

COVER, EXHAUST PIPE UPPER

14190-19B10

Unavailable

8

CLAMP

14185-19B00

Unavailable

9

SCREW This part replaces 02112-06205.

02112-0620A

$1.49

10

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

11

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26

12

BODY,MUFFLER | !14310-19B13 USED WITH 01517-08405; Includes Item(s) 13 - 14 This part replaces 14310-19B11.

14310-19B14

Unavailable

13

PLUG, DRAIN

09247-12103

$2.84

14

GASKET

09168-12002

$1.59

15

GASKET, MUFFLER

14773-14202

$23.17

16

BOLT | FOR 14310-19B11 This part replaces 01517-08205.

01550-0820A

$2.23

16

BOLT | FOR 14310-19B13 This part replaces 01517-08405.

01550-08407

$3.42

17

BOLT This part replaces 01107-08358.

01500-0835B

$3.04

18

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

19

WASHER, EXHAUST SUPPORT This part replaces 09160-08002.

09160-08135

$2.35
