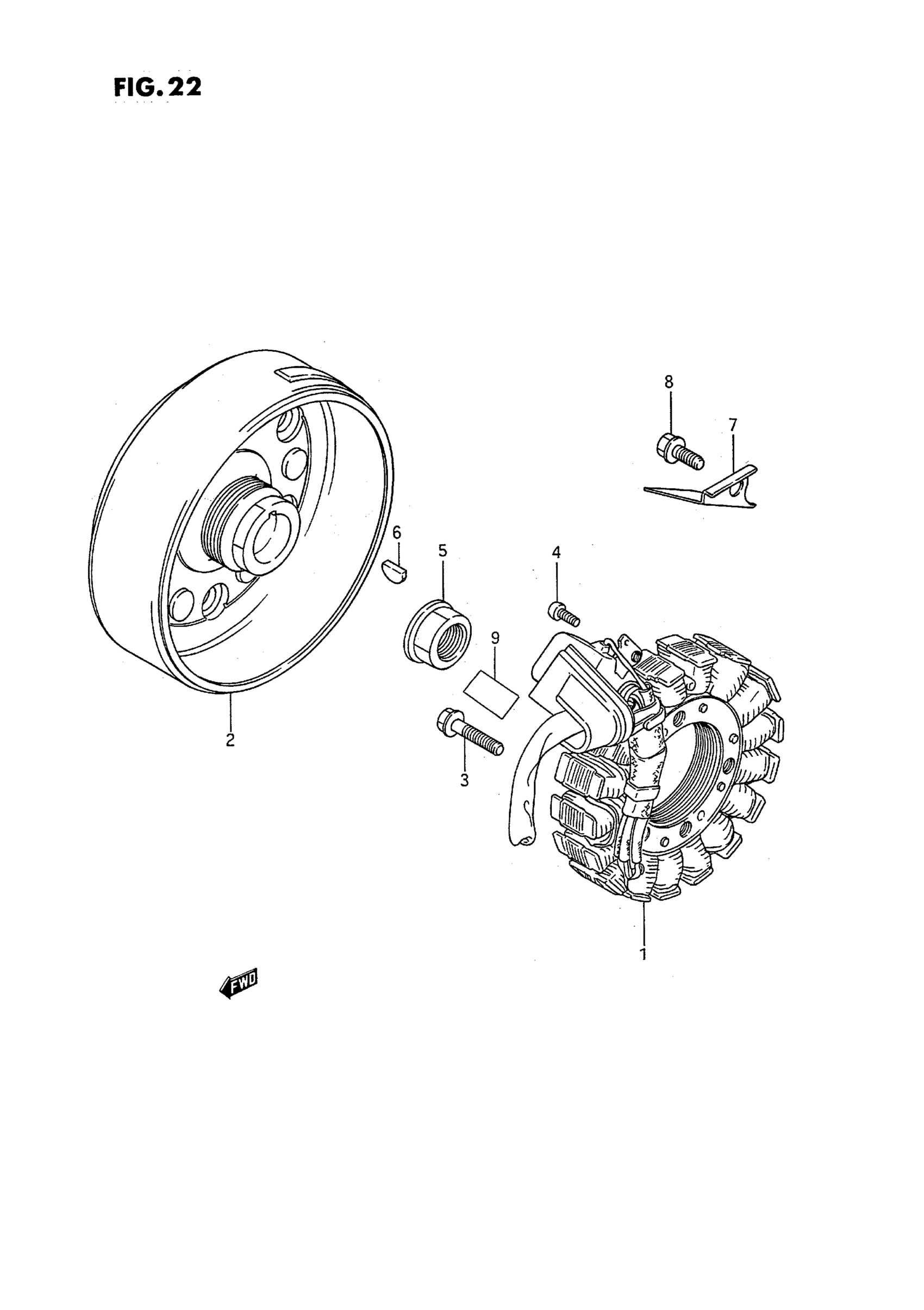

Suzuki LT-4WD (1995) MAGNETO Diagram

#

Description
Price

1

STATOR ASSY | MODEL H/J/K

32101-19B00

Unavailable

1

STATOR ASSY | MODEL L/M/N/P/R/S

32101-19B10

$642.77

2

ROTOR | MODEL H/J/K This part replaces 32102-19B00.

32102-19B10

Unavailable

2

ROTOR | MODEL L/M/N/P/R/S

32102-19B10

Unavailable

3

BOLT | MODEL H/J/K/L/M/N/P

01547-06257

$2.03

3

BOLT, FINAL GEAR CASE COVER | MODEL R/S This part replaces 01547-06253.

01547-0625B

$2.45

4

SCREW | MODEL H/J/K/L/M/N/P

02112-04107

$1.55

4

SCREW | MODEL R/S This part replaces 02112-04103.

02112-0410A

$1.49

5

NUT

31792-18A00

$11.87

6

KEY This part replaces 08341-31049.

09420-04008

$3.42

7

PLATE

32373-19B00

Unavailable

8

BOLT | MODEL H/J/K/L/M/N/P

01547-06127

$1.65

8

BOLT | MODEL R/S This part replaces 01547-06123.

01547-0612B

$1.49

9

SHEET, HEAT PROTECTION | MODEL M/N/P/R/S This part replaces 32374-19B00.

37841-22D00

Unavailable
