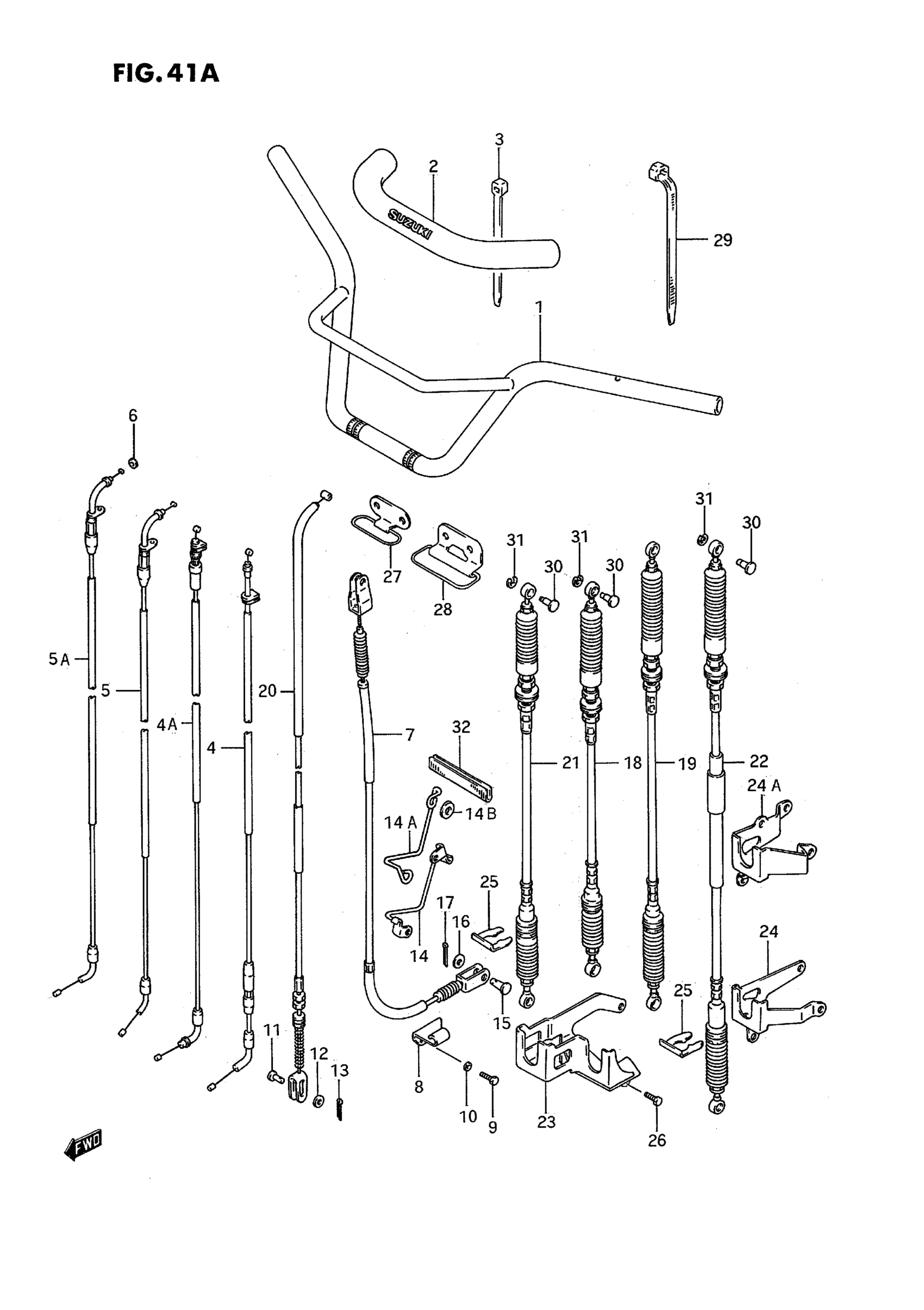

Suzuki LT-4WD (1995) HANDLEBAR - CONTROL CABLE (MODEL J/K/L/M/N/P/R/S) Diagram

#

Description
Price

1

HANDLEBAR (BLACK) | MODEL J/K/L/M/N !56110-19B31-291

56110-19B01-291

Unavailable

1

HANDLEBAR | MODEL P/R/S This part replaces 56110-19B31-291.

56110-19B32-291

Unavailable

2

PAD, CROSS (OD:30)

56172-19B01-291

Unavailable

3

BAND (L:145)

09407-14407

$3.57

4

CABLE ASSY, THROTTLE | MODEL J/K

58300-19B10

Unavailable

4A

CABLE ASSY, THROTTLE | MODEL L/M/N/P/R/S

58300-19B20

$21.76

5

CABLE, STARTER | MODEL J/K This part replaces 58410-19B00.

58410-19X00

Unavailable

5A

CABLE, STARTER | MODEL L/M/N/P/R/S

58410-19B10

$34.73

6

WASHER This part replaces 09161-05015.

09320-06503

$2.63

7

CABLE ASSY, REAR BRAKE | MODEL J/K/L/M/N This part replaces 58510-19B00.

58510-19B02

Unavailable

7

CABLE ASSY, REAR BRAKE | MODEL P/R This part replaces 58510-19B01.

58510-19B02

Unavailable

7

CABLE, REAR BRAKE | MODEL S

58510-19B02

Unavailable

8

BRACKET, REAR BRAKE CABLE

58575-19B00

Unavailable

9

BOLT | MODEL J/K/L This part replaces 01107-06163.

01500-0616A

$1.78

9

BOLT | MODEL M/N/P This part replaces 01134-06166.

01570-0616A

$2.23

9

BOLT | MODEL R/S This part replaces 01570-06163.

01570-0616A

$2.23

10

LOCK WASHER | MODEL J/K/L This part replaces 08321-21066.

08321-0106A

$1.84

11

PIN, REAR CABLE PEDAL SIDE

09200-06013

$2.00

12

.WASHER This part replaces 08322-01063.

08322-0106B

$2.26

13

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

14

GUIDE, REAR BRAKE CABLE | MODEL J/K/L/M/N !58611-19B02 USED WITH 08322-21063 This part replaces 58610-19B01.

58611-19B02

Unavailable

14A

GUIDE, REAR BRAKE CABLE | MODEL P/R/S

58611-19B02

Unavailable

14B

.WASHER | MODEL P This part replaces 08322-21063.

08322-0106B

$2.26

14B

.WASHER | MODEL R/S This part replaces 08322-01063.

08322-0106B

$2.26

15

PIN

09200-08061

$3.50

16

WASHER | MODEL J/K/L/M/N This part replaces 08322-11088.

08322-01087

$2.13

16

WASHER | MODEL R/S This part replaces 08322-01083.

08322-0108A

$1.92

17

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

18

NO DESCRIPTION AVAILABLE | MODEL J/K This part replaces 58680-19B10.

58680-19B11

Unavailable

18

CABLE, T/M GEAR SHIFT | MODEL L/M/N/P This part replaces 58680-19B20.

58680-19B21

$208.75

18

CABLE, T/M GEAR SHIFT | MODEL R/S

58680-19B21

$208.75

19

CABLE, TRANSFER SHIFT | MODEL J/K/L/M/N This part replaces 58690-19B00.

58690-19B01

$155.28

19

CABLE, TRANSFER SHIFT | MODEL P/R/S

58690-19B01

$155.28

20

CABLE, PARKING BRAKE This part replaces 58810-19B01.

58810-19B02

$45.20

21

CABLE, REVERSE This part replaces 58840-19B10.

58840-39DA0

Unavailable

22

CABLE, SUB T/M SHIFT | MODEL J/K This part replaces 58880-19B00.

58880-19B11

Unavailable

22

CABLE, SUB T/M SHIFT | MODEL L/M/N/P/R/S

58880-19B11

Unavailable

23

BRACKET, CONTROL CABLE

58870-19B00

Unavailable

24

BRACKET, CONTROL CABLE | MODEL J/K

58873-19B00

Unavailable

24A

BRACKET, CONTROL CABLE | MODEL L/M/N/P/R/S

58873-19B11

Unavailable

25

CLIP

09383-19003

$4.68

26

BOLT | MODEL J/K/L/M/N/P This part replaces 01547-06165.

01547-0616B

$2.45

26

BOLT | MODEL R/S This part replaces 01547-06163.

01547-0616B

$2.45

27

GUIDE, CABLE | MODEL J/K/L/M/N/P This part replaces 58620-19B01.

58620-19B10

Unavailable

28

GUIDE, CABLE | MODEL R/S

58620-19B10

Unavailable

29

CLAMP, L:125

09407-14403

$2.26

29

CLAMP | MODEL L/M/N/P/S This part replaces 09407-18403.

09407-18402

$2.19

30

PIN

09208-08008

$2.53

31

CIRCLIP | MODEL J/K/L/M/N/P This part replaces 08332-11066.

08332-1106A

$1.49

31

CIRCLIP | MODEL R/S This part replaces 08332-11063.

08332-1106A

$1.49

32

PROTECTOR, CONTROL CABLE | MODEL J/K/L/M/N

44552-24B00

$14.08
