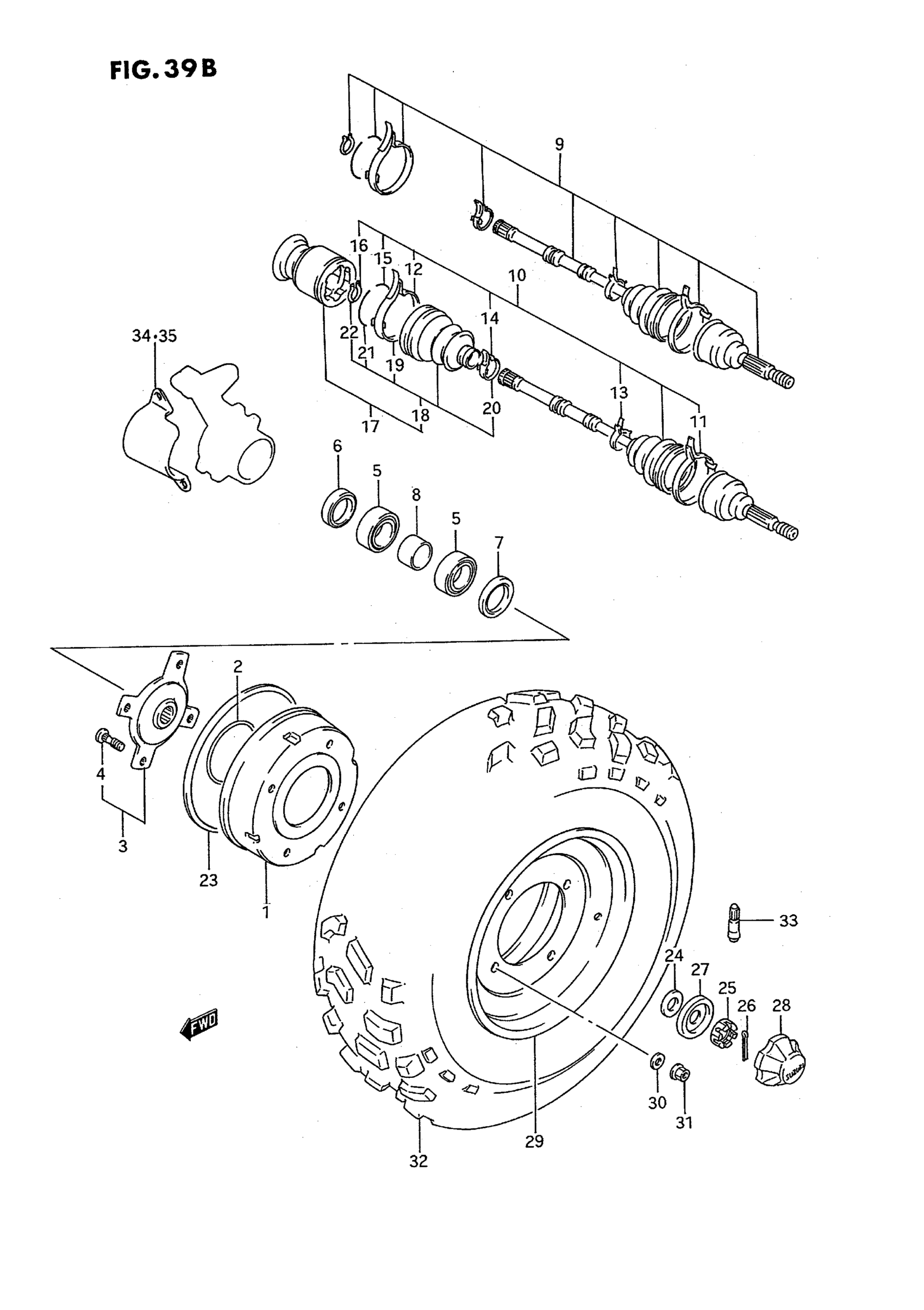

Suzuki LT-4WD (1995) FRONT WHEEL (MODEL P/R/S) Diagram

#

Description
Price

1

DRUM, BRAKE

54120-19B10

Unavailable

2

O RING

09280-80001

$3.89

3

HUB, FRONT | MODEL P/R This part replaces 54110-19B00.

54110-19B01

Unavailable

3

HUB, FRONT | MODEL S; Includes Item(s) 4

54110-19B01

Unavailable

4

BOLT This part replaces 09119-10045.

09119-10045-XC0

$2.38

5

BEARING, FRONT HUB

08123-60067

$29.13

6

DUST SEAL, INNER

09283-38012

$14.74

7

DUST SEAL, OUTER

09283-38013

$11.86

8

SPACER, FRONT HUB

54731-19B00

$11.24

9

SHAFT ASSY,FRT This part replaces 54918-19B10.

54901-19B13

Unavailable

9

NO DESCRIPTION AVAILABLE This part replaces 54919-19B10.

54902-19B13

Unavailable

10

BOOT SET | OUTER BOOT SET; Includes Item(s) 11 - 16 This part replaces 54930-19B11.

54930-19B12

Unavailable

11

BAND This part replaces 54923-19B10.

44121-60DB0

$14.30

12

CLAMP, SIDE OUTER BOOT

44122-86010

$14.50

13

BAND This part replaces 54924-19B10.

44124-60DB0

$12.47

14

CLAMP, SIDE INNER BOOT This part replaces 44124-54A20.

44124-50A20

$12.00

15

CIR CLIP

44112-78010

$8.42

16

SNAP RING

27182-70410

$1.98

17

JOINT SET,DIFF | Includes Item(s) 18 - 22 This part replaces 54933-19B13.

54933-19B14

$326.88

18

BOOT SET,DIFF S | INNER BOOT SET This part replaces 54931-19B13.

54931-19B14

$71.15

19

CLAMP, SIDE OUTER BOOT

44122-86010

$14.50

20

CLAMP, SIDE INNER BOOT This part replaces 44124-54A20.

44124-50A20

$12.00

21

CIR CLIP

44112-78010

$8.42

22

SNAP RING

27182-70410

$1.98

23

DUST SEAL, DRUM BRAKE

54124-19B10

$71.63

24

WASHER, HUB

09164-18004

$3.76

25

NUT, HUB | MODEL P This part replaces 09141-18004.

09141-18008

$8.37

25

NUT, HUB (WHITE) | MODEL R/S

09141-18008

$8.37

26

PIN, COTTER This part replaces 04111-40408.

04111-4040A

$1.49

27

HOLDER, CENTER CAP

64726-19B00

$3.31

28

CAP, WHEEL CENTER | MODEL P This part replaces 54725-19B00.

54725-39D00

$14.76

28

CAP, WHEEL CENTER | MODEL R/S

54725-39D00

$14.76

29

RIM, FRONT WHEEL (SILVER) | MODEL P/R This part replaces 55310-19B10-13L.

55310-19B11-13L

Unavailable

29

RIM, FRONT WHEEL (SILVER) | MODEL S

55310-19B11-13L

Unavailable

30

WASHER | MODEL P This part replaces 08322-21107.

08322-01107

$2.15

30

WASHER,10.5X22X | MODEL R/S This part replaces 09160-10119.

09160-10143

$2.34

31

NUT, WHEEL SET | MODEL P This part replaces 08316-16108.

08316-10107

$2.39

31

NUT | MODEL R/S This part replaces 08316-10103.

08316-1010B

$2.66

32

TIRE, T/L FRONT (AT22X8-10) (BRIDGESTONE) | MODEL P/R

55100-19B40

Unavailable

32

TIRE, T/L FRONT (AT22X8-10) (DUNLOP) | MODEL P/R/S

55100-19B60

Unavailable

33

VALVE ASSY, WHEEL RIM | !43130-78030 This part replaces 43130-75150.

43130-78030

$9.25

33

VALVE ASSY, WHEEL RIM

43130-78030

$9.25

34

PROTECTOR, DRIVE SHAFT RH

54903-19B10

Unavailable

35

PROTECTOR, DRIVE SHAFT LH

54904-19B10

Unavailable
