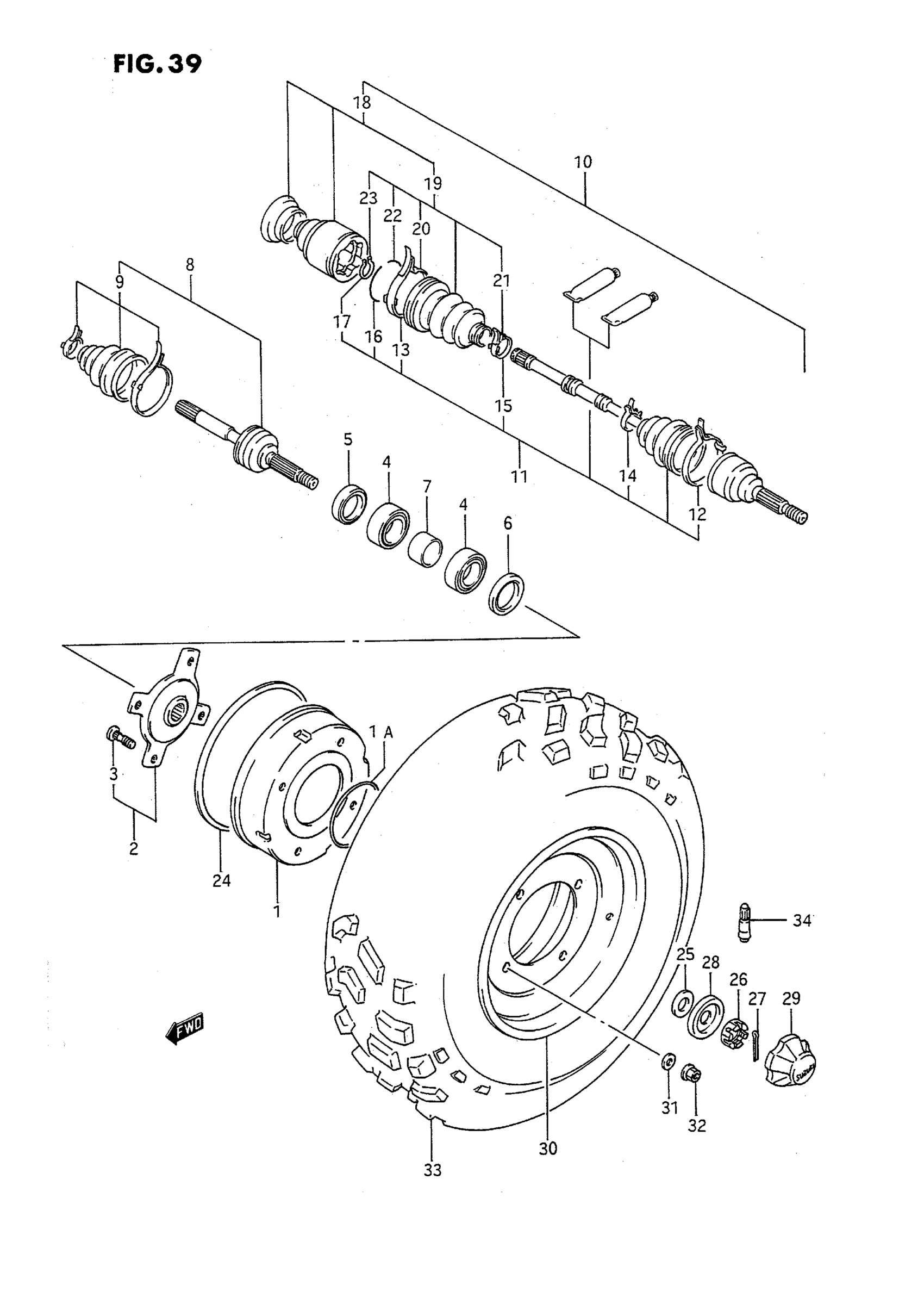

Suzuki LT-4WD (1995) FRONT WHEEL (MODEL H/J/K/L) Diagram

#

Description
Price

1

DRUM, BRAKE | MODEL H/J

54120-19B00

Unavailable

1

DRUM, BRAKE | MODEL K/L

54120-19B10

Unavailable

1A

O RING | MODEL K/L

09280-80001

$3.89

2

HUB, FRONT | Includes Item(s) 3 This part replaces 54110-19B00.

54110-19B01

Unavailable

3

BOLT This part replaces 09119-10045.

09119-10045-XC0

$2.38

4

BEARING, FRONT HUB

08123-60067

$29.13

5

DUST SEAL, INNER

09283-38012

$14.74

6

DUST SEAL, OUTER

09283-38013

$11.86

7

SPACER, FRONT HUB

54731-19B00

$11.24

8

SHAFT ASSY, FRONT DRIVE | MODEL H; Includes Item(s) 9

54900-19B00

Unavailable

9

BOOT SET,FR DRI | MODEL H This part replaces 54930-19B00.

54930-19B01

Unavailable

10

SHAFT ASSY,FRT | MODEL J/K/L,SEE NOTE 4 This part replaces 54901-19B11.

54901-19B13

Unavailable

10

NO DESCRIPTION AVAILABLE | MODEL J/K/L,SEE NOTE 5; Includes Item(s) 11 - 23 This part replaces 54902-19B11.

54902-19B13

Unavailable

11

BOOT SET | MODEL J/K/L,SEE NOTE 2 This part replaces 54930-19B10.

54930-19B12

Unavailable

12

BAND | MODEL J/K/L This part replaces 54923-19B10.

44121-60DB0

$14.30

13

CLAMP, DIFFERENTIAL SIDE OUTER BOOT | MDOEL J/K/L

44122-86010

$14.50

14

BAND | MODEL J/K/L This part replaces 54924-19B10.

44124-60DB0

$12.47

15

CLAMP, SIDE INNER BOOT | MODEL J/K/L This part replaces 44124-54A20.

44124-50A20

$12.00

16

CIR CLIP | MODEL J/K/L

44112-78010

$8.42

17

SNAP RING | MODEL J/K/L

27182-70410

$1.98

18

JOINT SET,DIFF | MODEL J/K/L This part replaces 54933-19B13.

54933-19B14

$326.88

19

BOOT SET,DIFF S | MODEL J/K/L,SEE NOTE 3 This part replaces 54931-19B13.

54931-19B14

$71.15

20

CLAMP, DIFFERENTIAL SIDE OUTER BOOT | MODEL J/K/L

44122-86010

$14.50

21

CLAMP, SIDE INNER BOOT | MODEL J/K/L This part replaces 44124-54A20.

44124-50A20

$12.00

22

CIR CLIP | MODEL J/K/L

44112-78010

$8.42

23

SNAP RING | MODEL J/K/L

27182-70410

$1.98

24

DUST SEAL, DRUM BRAKE | MODEL H/J

54124-19B00

Unavailable

24

DUST SEAL, DRUM BRAKE | MODEL K/L

54124-19B10

$71.63

25

WASHER, HUB

09164-18004

$3.76

26

NUT, HUB This part replaces 09141-18004.

09141-18008

$8.37

27

PIN, COTTER This part replaces 04111-40356.

04111-4040A

$1.49

28

HOLDER, CENTER CAP

64726-19B00

$3.31

29

CAP, WHEEL CENTER | MODEL H

54725-18A00

$10.28

29

CAP, WHEEL CENTER | MODEL J/K/L This part replaces 54725-19B00.

54725-39D00

$14.76

30

RIM, FRONT WHEEL (SILVER) | MODEL H/J/K This part replaces 55310-19B01-13L.

55310-19B11-13L

Unavailable

30

RIM, FRONT WHEEL (SILVER) | MODEL L This part replaces 55310-19B10-13L.

55310-19B11-13L

Unavailable

31

WASHER This part replaces 08322-21107.

08322-01107

$2.15

32

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

$2.39

33

TIRE, T/L FRONT (AT22X8-10) (BRIDGESTONE) | MODEL H This part replaces 55100-19B30.

55100-19B40

Unavailable

33

TIRE, T/L FRONT (AT22X8-10) (DUNLOP) | MODEL H This part replaces 55100-19B50.

55100-19B60

Unavailable

33

TIRE, T/L FRONT (AT22X8-10) (BRIDGESTONE) | MODEL J/K This part replaces 55100-19B31.

55100-19B40

Unavailable

33

TIRE, T/L FRONT (AT22X8-10) (DUNLOP) | MODEL J/K This part replaces 55100-19B51.

55100-19B60

Unavailable

33

TIRE, T/L FRONT (AT22X8-10) (BRIDGESTONE) | MODEL L

55100-19B40

Unavailable

33

TIRE, T/L FRONT (AT22X8-10) (DUNLOP) | MODEL L

55100-19B60

Unavailable

34

VALVE ASSY, WHEEL RIM This part replaces 43130-75150.

43130-78030

$9.25
