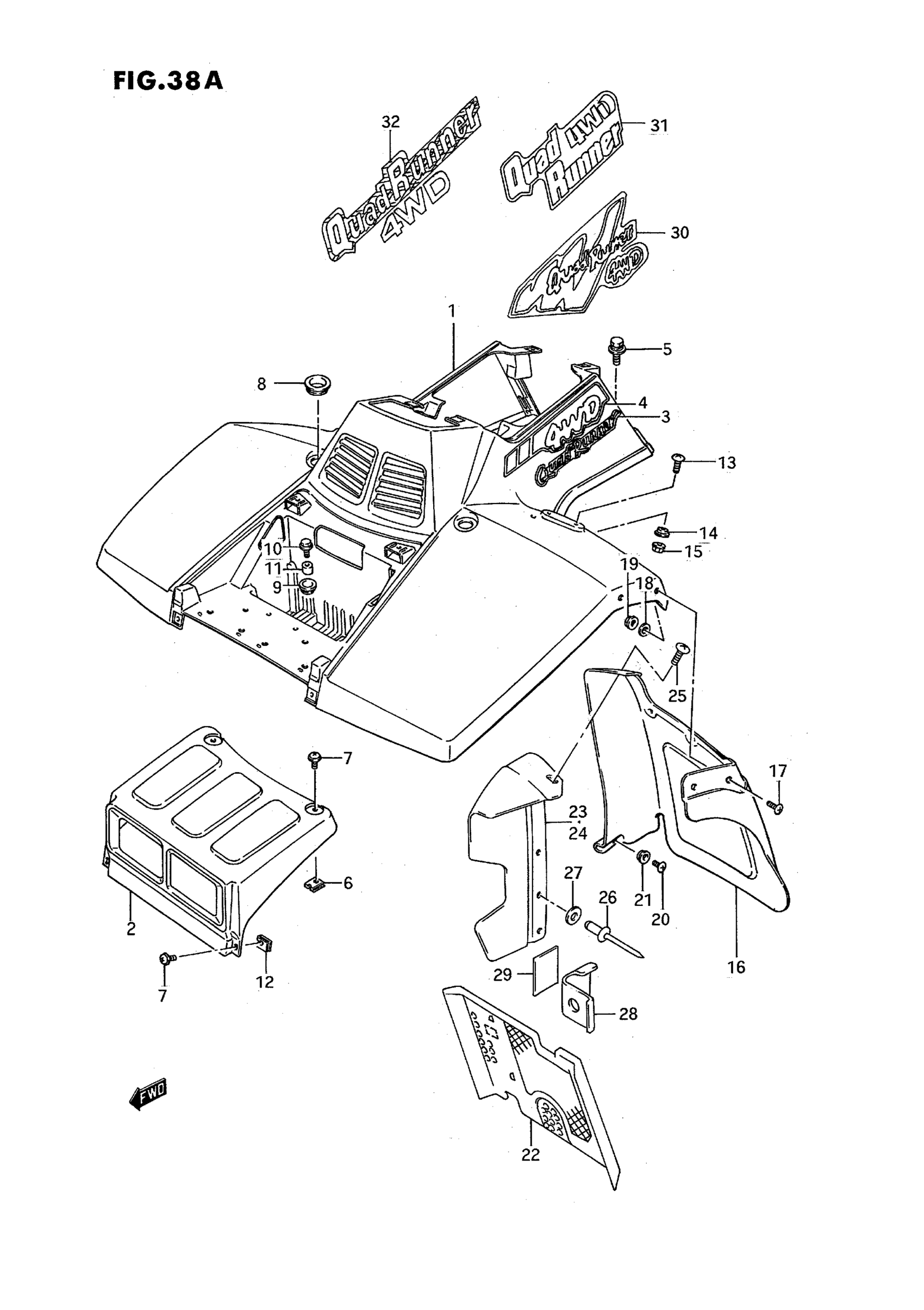

Suzuki LT-4WD (1995) FRONT FENDER (MODEL M/N/P/R/S) Diagram

#

Description
Price

1

FENDER, FRONT (ORANGE)

53111-19B00-25G

Unavailable

2

FENDER, CENTER

53118-19B00

$55.88

3

EMBLEM, Q,R | MODEL M

68151-20B40-0WA

Unavailable

4

TAPE,RH,4WD | MODEL M

68155-19B00-3MA

Unavailable

4

TAPE,LH,4WD | MODEL M

68156-19B00-3MA

Unavailable

5

BOLT, FENDER (6X14) | MODEL M

09118-06019

$2.92

5

BOLT, FENDER REAR (6X14) | MODEL N/P/R/S

09118-06019

$2.92

5

BOLT, FENDER CENTER (6X20) | MODEL N/P/R/S

09118-06016

Unavailable

6

NUT

53141-19A00

$4.34

7

SCREW This part replaces 09136-06062.

09136-06017

$2.59

8

GROMMET This part replaces 09308-25003.

09308-25005

$3.88

9

CUSHION This part replaces 09320-11015.

09320-11008

$2.60

10

BOLT, FRONT FENDER FRONT

09116-06025

$2.44

11

SPACER

09180-06120

$2.32

12

NUT

53141-19A00

$4.34

13

SCREW | MODEL M/N/P This part replaces 02142-06164.

02142-0616A

$1.49

13

SCREW | MODEL R/S This part replaces 02142-06163.

02142-0616A

$1.49

14

WASHER | MODEL M/N

09169-06026

$2.20

14

WASHER | MODEL P/R/S

09169-06016

$1.65

15

NUT | MODEL M/N This part replaces 09159-06055.

09159-06078

$2.62

15

NUT | MODEL P/R/S This part replaces 09159-06058.

09159-06078

$2.62

16

MUD FLAP, FENDER RH

53311-19B05

Unavailable

16

MUD FLAP, FENDER LH

53312-19B05

Unavailable

17

SCREW

09139-05038

$2.06

18

WASHER (5.5X20X1.4) This part replaces 09160-05039.

09160-05046

$1.92

19

NUT This part replaces 09159-05026.

09159-05043

$2.22

20

SCREW | MODEL M/N/P This part replaces 02142-06125.

02142-0612A

$1.49

20

SCREW | MODEL R/S This part replaces 02142-06123.

02142-0612A

$1.49

21

WASHER | MODEL M/N/P/R This part replaces 09169-06025.

09169-06010

$2.60

21

WASHER, INNER | MODEL S

09169-06010

$2.60

22

GUARD, MUFFLER FRONT | MODEL M/N/P This part replaces 53310-20B11.

53310-20B12

$91.95

22

GUARD, MUFFLER FRONT | MODEL R This part replaces 53310-19B11.

53310-20B12

$91.95

22

GUARD, MUFFLER FRONT | MODEL S !53310-20B12 This part replaces 53310-19B12.

53310-20B12

$91.95

22

GUARD, MUFFLER FRONT

53310-20B12

$91.95

23

MUD FLAP, INNER RH

53411-19B01

Unavailable

24

MUD FLAP, INNER LH

53421-19B01

Unavailable

25

SCREW

09139-05037

$2.06

26

RIVET This part replaces 09229-03023.

09229-03023-XC0

Unavailable

27

WASHER

09160-03008

Unavailable

28

PLATE, INNER MUD FLAP

53421-20B00

Unavailable

29

CUSHION,FR This part replaces 53425-20B00.

46312-31D11

$5.02

30

TAPE, FRONT FENDER RH | MODEL N

68155-19B30-1JJ

Unavailable

30

TAPE, FRONT FENDER LH | MODEL N

68156-19B30-1JJ

Unavailable

30

TAPE, FRONT FENDER RH | MODEL P

68155-19B30-1TG

Unavailable

30

TAPE, FRONT FENDER LH | MODEL P

68156-19B30-1TG

Unavailable

31

EMBLEM, FRONT FENDER | MODEL R

68151-19B70-C2K

Unavailable

32

EMBLEM, FRONT FENDER | MODEL S

68151-19B80-D0P

Unavailable
