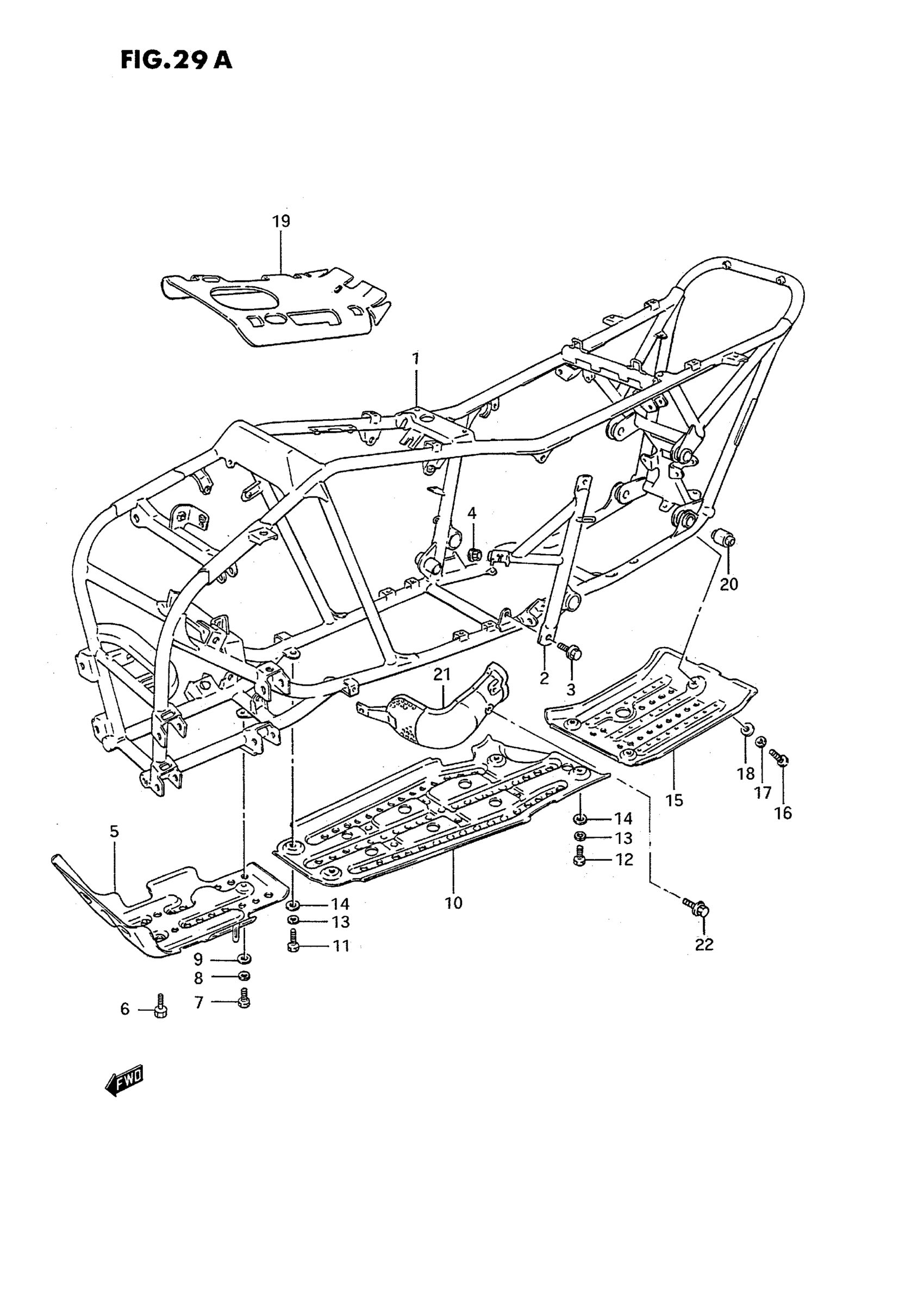

Suzuki LT-4WD (1995) FRAME (MODEL L/M/N/P/R/S) Diagram

#

Description
Price

1

FRAME SET (BLACK) | MODEL L This part replaces 41101-19810-019.

41101-19815-019

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL M This part replaces 41100-39871-019.

41101-39860-019

Unavailable

1

FRAME SET (BLACK) | MODEL N/P/R/S; Includes Item(s) 2 - 4 This part replaces 41101-19813-019.

41101-19815-019

Unavailable

2

PLATE. MOUNTING FRONT (BLACK) | MODEL L This part replaces 41910-19B20-019.

41910-39D00-019

Unavailable

2

BAR, MOUNTING FRONT (BLACK) | MODEL M/N/P/R/S

41910-39D00-019

Unavailable

3

BOLT

09103-10165

$4.62

4

CAP

43978-24500

$8.42

5

PROTECTOR, FRONT This part replaces 42510-19B11.

42510-19B12

$149.42

6

BOLT | MODEL L/M/N/P/R This part replaces 01107-06123.

01500-0612A

$1.78

6

BOLT | MODEL S This part replaces 01580-06123.

01580-0612A

$2.32

7

BOLT | MODEL L/M/N/P/R This part replaces 01107-06163.

01500-0616A

$1.78

7

BOLT | MODEL S This part replaces 01580-06163.

01580-0616A

$2.42

8

LOCK WASHER This part replaces 08321-21063.

08321-0106A

$1.84

9

.WASHER This part replaces 08322-01063.

08322-0106B

$2.26

10

PROTECTOR, MIDDLE | MODEL L/M/N/P/R This part replaces 42560-19B20.

42560-19B03

Unavailable

10

PROTECTOR, MIDDLE | MODEL S This part replaces 42560-19B02.

42560-19B03

Unavailable

11

BOLT, GEAR SHIFT LINK | MODEL L/M/N/P This part replaces 01107-06206.

01500-0620A

$1.78

11

BOLT, GEAR SHIFT LINK | MODEL R This part replaces 01107-06203.

01500-0620A

$1.78

11

BOLT, REAR | MODEL S This part replaces 01580-06203.

01580-0620B

$3.30

12

BOLT | MODEL L/M/N/P/R This part replaces 01107-06163.

01500-0616A

$1.78

12

BOLT | MODEL S This part replaces 01580-06163.

01580-0616A

$2.42

13

LOCK WASHER This part replaces 08321-21063.

08321-0106A

$1.84

14

.WASHER This part replaces 08322-01063.

08322-0106B

$2.26

15

PROTECTOR, ENGINE This part replaces 61390-19B01.

61390-19B02

$125.61

16

BOLT This part replaces 01107-06163.

01500-0616A

$1.78

17

LOCK WASHER This part replaces 08321-21063.

08321-0106A

$1.84

18

.WASHER This part replaces 08322-01063.

08322-0106B

$2.26

19

NO DESCRIPTION AVAILABLE This part replaces 47157-19B10.

47157-19B11

Unavailable

20

BUSH

09319-10064

$21.22

21

COVER, MUD | MODEL M/N/P/R/S

42570-39D00

Unavailable

22

BOLT | MODEL M/N/P This part replaces 01517-06105.

01550-0610A

$1.97

22

BOLT | MODEL R/S This part replaces 01580-06123.

01580-0612A

$2.32
