1995 Suzuki LT-4WD Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1995 Suzuki LT-4WD, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

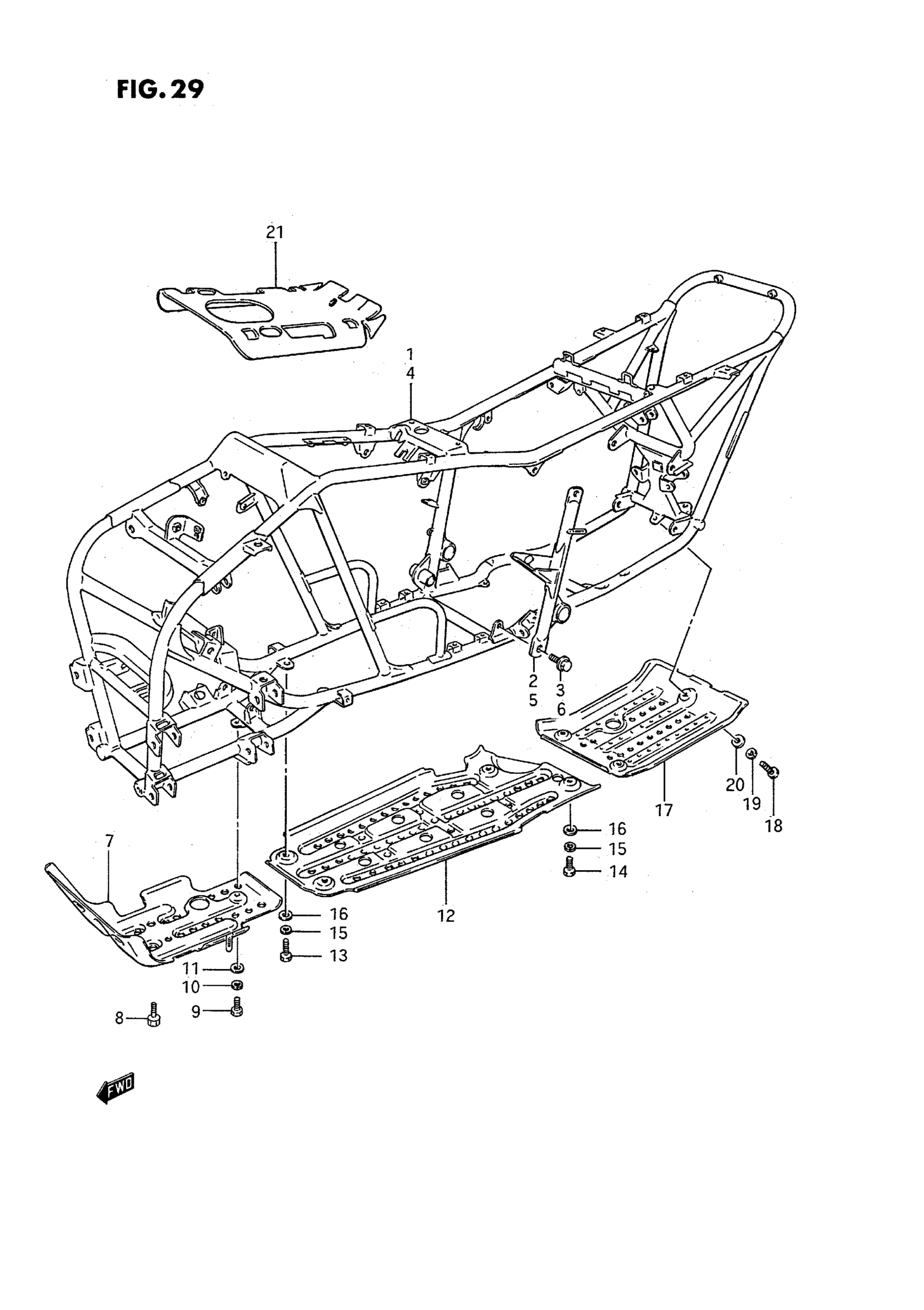

1995 Suzuki LT-4WD Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | MODEL H This part replaces 41100-19B00-019.

41100-19841-019

1
Out of stock

1

NO DESCRIPTION AVAILABLE | MODEL J This part replaces 41100-19B10-019.

41100-19872-019

1
Out of stock

2

PLATE, MOUNTING FRONT (BLACK) | MODEL H This part replaces 41910-19B00-019.

41910-19B01-019

1
Out of stock

2

PLATE, MOUNTING FRONT (BLACK) | MODEL J

41910-19B01-019

1
Out of stock

3

BOLT | MODEL H/J

09103-10165

2
Out of stock

4

NO DESCRIPTION AVAILABLE | MODEL K; Includes Item(s) 5 - 6 This part replaces 41100-19861-019.

41100-19872-019

1
Out of stock

5

BAR, MOUNTING FRONT (BLACK) | MODEL K

41910-19B01-019

1
Out of stock

6

BOLT | MODEL K

09103-10165

2
Out of stock

7

PROTECTOR, FRONT | MODEL H/J This part replaces 42510-19B01.

42510-19B12

1
Out of stock

7

PROTECTOR, FRONT | MODEL K This part replaces 42510-19B11.

42510-19B12

1
Out of stock

8

BOLT This part replaces 01107-06123.

01500-0612A

2
Out of stock

9

BOLT This part replaces 01107-06163.

01500-0616A

1
Out of stock

10

3

$1.97

In stock

11

.WASHER This part replaces 08322-01063.

08322-0106B

3
Out of stock

12

PROTECTOR, MIDDLE | MODEL H This part replaces 42560-19B00.

42560-19B03

1
Out of stock

12

PROTECTOR, MIDDLE | MODEL J/K This part replaces 42560-19B02.

42560-19B03

1
Out of stock

13

BOLT, GEAR SHIFT LINK This part replaces 01107-06206.

01500-0620A

2
Out of stock

14

BOLT This part replaces 01107-06163.

01500-0616A

2
Out of stock

15

4

$1.97

In stock

16

.WASHER This part replaces 08322-21063.

08322-0106B

4
Out of stock

17

PROTECTOR, ENGINE This part replaces 61390-19B01.

61390-19B02

1
Out of stock

18

BOLT This part replaces 01107-06163.

01500-0616A

3
Out of stock

19

3

$1.97

In stock

20

.WASHER This part replaces 08322-01063.

08322-0106B

3
Out of stock

21

NO DESCRIPTION AVAILABLE | MODEL H/J This part replaces 47157-19B00.

47157-19B11

1
Out of stock

21

NO DESCRIPTION AVAILABLE | MODEL K This part replaces 47157-19B10.

47157-19B11

1
Out of stock
