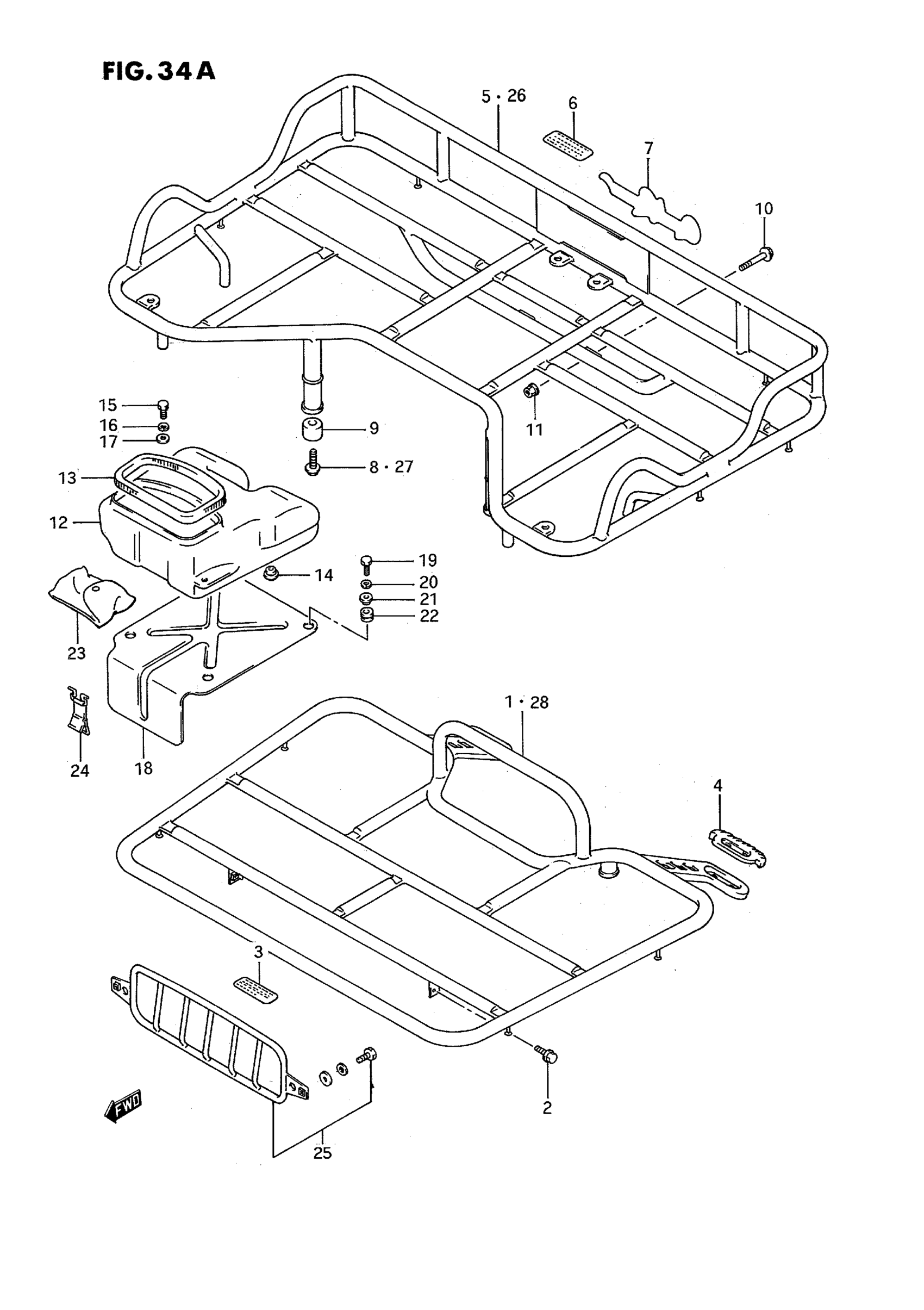

Suzuki LT-4WD (1995) CARRIER (MODEL K/L/M/N/P/R/S) Diagram

#

Description
Price

1

CARRIER, FRONT | MODEL K This part replaces 46410-19B52.

46410-39D50

Unavailable

1

CARRIER, FRONT | MODEL L/M/N This part replaces 46410-19B53.

46410-39D50

Unavailable

1

CARRIER, FRONT | MODEL P/R This part replaces 46410-39D00.

46410-39D50

Unavailable

1

CARRIER, FRONT | MODEL S

46410-39D50

Unavailable

2

BOLT (8X16) | MODEL K/L/M/N/P This part replaces 01517-08165.

01550-0816A

$2.31

2

BOLT (8X16) | MODEL R/S This part replaces 01550-08163.

01550-0816A

$2.31

3

LABEL,REAR CARR | MODEL K/L This part replaces 68381-24500.

68391-19B01

$6.32

3

LABEL,FRONT CAR | MODEL M/N/P/R/S This part replaces 68381-19B00.

68381-19B01

$6.12

4

KNEE PAD, FRONT CARRIER

46480-19B00

Unavailable

5

CARRIER, REAR | MODEL K/L/M/N/P/R This part replaces 46310-19B54.

46310-39D50

Unavailable

5

CARRIER, REAR | MODEL S This part replaces 46310-19B55.

46310-39D50

Unavailable

6

LABEL,FRONT CAR | MODEL K/L This part replaces 68391-24500.

68381-19B01

$6.12

6

LABEL,REAR CARR | MODEL M/N/P/R/S This part replaces 68391-19B00.

68391-19B01

$6.32

7

EMBLEM, REAR CARRIER | MODEL K

68251-41B00-0DU

Unavailable

7

SUPERCEEDED BY 68111-47C10-064 | MODEL L/M/N This part replaces 68131-19C20-064.

68111-47C00-064

$9.03

8

BOLT (8X35) | MODEL K/L/M/N/P This part replaces 01517-08356.

01550-0835A

$2.80

8

BOLT (8X35) | MODEL R/S This part replaces 01550-08353.

01550-0835A

$2.80

9

SPCR,RR CARRIER This part replaces 46392-19B50.

46392-19B5V

Unavailable

10

BOLT,8X50 | MODEL K/L/M/N/P/R This part replaces 09103-08082.

09103-08395

$3.36

10

BOLT, REAR | MODEL S

09103-08332

$5.00

11

NUT This part replaces 08319-31085.

08319-3108A

$2.31

12

BOX, REAR

47431-19B00

Unavailable

13

MOLDING, REAR BOX

92114-19B00

$39.73

14

CAP (OD:18) This part replaces 09250-10011.

09250-10033

$1.15

15

BOLT

09100-06067

Unavailable

16

LOCK WASHER This part replaces 08321-21063.

08321-0106A

$1.83

17

WASHER This part replaces 09160-06006.

09160-06084

$1.77

18

PLATE, HEAT SHIELD | MODEL K This part replaces 47432-19B01.

47432-19B02

Unavailable

18

PLATE, HEAT SHIELD | MODEL L

47432-19B02

Unavailable

19

BOLT

01500-06167

$1.97

20

LOCK WASHER This part replaces 08321-21067.

08321-01067

$1.83

21

WASHER

09169-06040

$1.94

22

CUSHION This part replaces 09320-08030.

09320-08511

$2.01

23

TOOL ASSY This part replaces 09800-00343.

09800-21075

$48.37

24

BAND, TOOL

09462-00090

Unavailable

25

GUARD SET, HEAD LAMP | OPT This part replaces 48500-19840.

48500-19841

Unavailable

26

CARRIER, REAR | OPT,MODEL K This part replaces 46300-19B02.

46310-39D50

Unavailable

26

CARRIER, REAR | OPT,MODEL L/M/N/P/R/S This part replaces 46300-19B03.

46310-39D50

Unavailable

27

BOLT (8X12) | OPT,MODEL K/L/M/N/P This part replaces 01517-08126.

01550-0812A

$2.31

27

BOLT (8X12) | OPT,MODEL R/S This part replaces 01550-08123.

01550-0812A

$2.31

28

CARRIER, FRONT | OPT,MODEL K This part replaces 46400-19B01.

46410-39D50

Unavailable

28

CARRIER, FRONT | OPT,MODEL L/M/N/P/R/S This part replaces 46400-19B02.

46410-39D50

Unavailable
