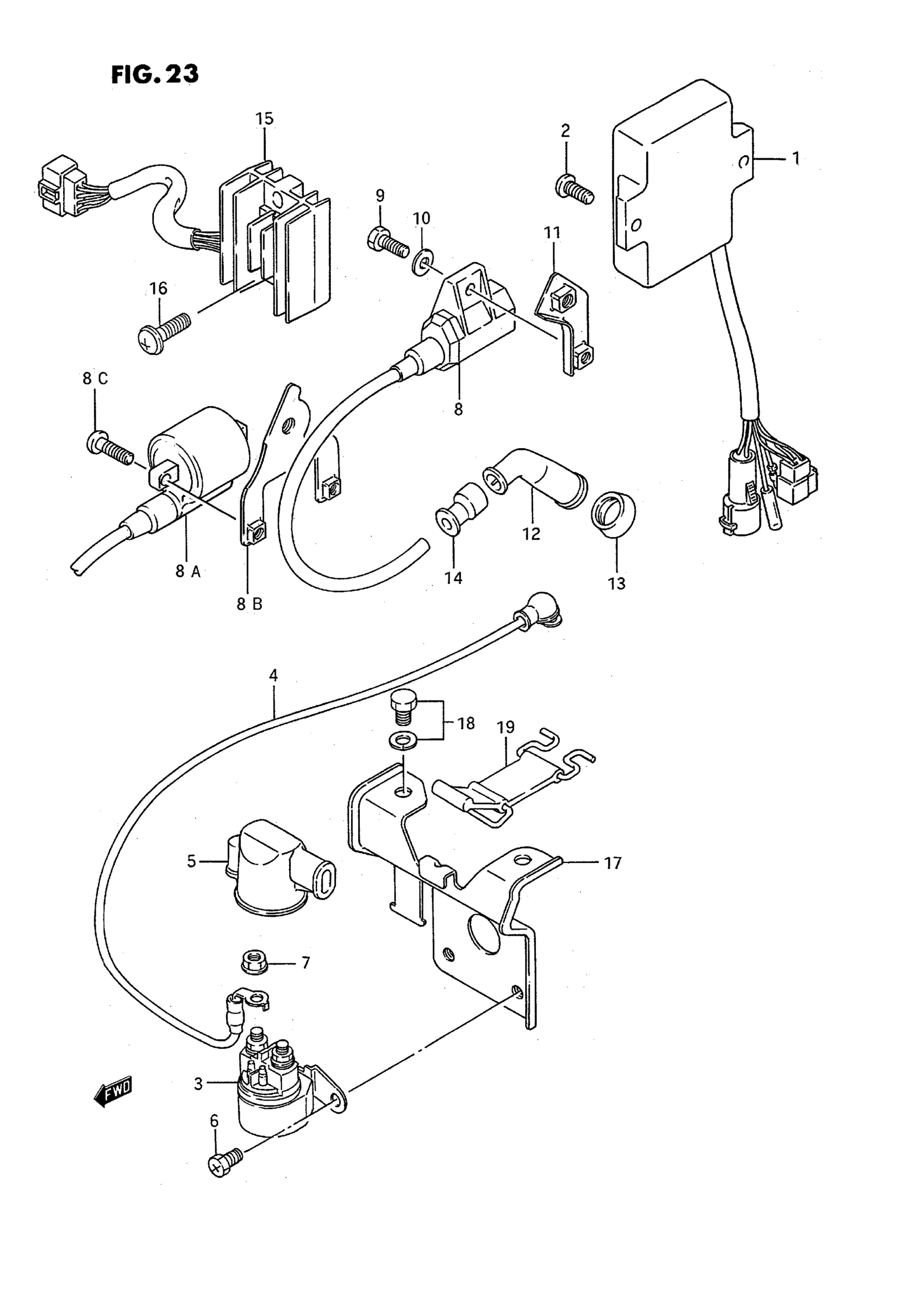

Suzuki LT-4WD (1995) ELECTRICAL Diagram

#

Description
Price

1

C.D.I UNIT | MODEL H/J/K

32900-19B00

Unavailable

1

C.D.I UNIT | MODEL L This part replaces 32900-19B10.

32900-19B20

Unavailable

1

C.D.I UNIT | MODEL M/N/P/R

32900-19B20

Unavailable

1

C.D.I UNIT | MODEL S

32900-19B50

Unavailable

2

SCREW | MODEL H/J/K/L/M/N This part replaces 02152-06123.

02112-1612B

$3.03

2

SCREW | MODEL N F.NO.2103287% MODEL P This part replaces 02112-76166.

02112-7616A

$2.12

2

SCREW | MODEL R/S This part replaces 02112-76163.

02112-7616A

$2.12

3

RELAY, STARTING MOTOR

31800-49100

$97.31

4

LEAD WIRE, STARTING MOTOR

33850-19B00

$40.33

5

CAP, TERMINAL

31861-46D00

$7.87

6

SCREW

09128-06013

$1.49

7

NUT This part replaces 08361-35068.

08361-3506A

$1.80

8

UNIT & COIL ASSY, IGNITION | MODEL H/J/K This part replaces 33410-42A00.

33410-22AV0

$116.00

8A

COIL ASSY, IGNITION | MODEL L/M/N/P/R This part replaces 33410-19B00.

33410-01X50

$105.37

8A

COIL ASSY, IGNITION | MODEL S

33410-01X50

$105.37

8B

BRACKET, IGNITION COIL | MODEL L/M/N/P/R/S

33416-19B00

Unavailable

8C

SCREW | MODEL L/M/N/P This part replaces 02112-06206.

02112-0620A

$1.49

8C

SCREW | MODEL R/S This part replaces 02142-06203.

02142-0620A

$1.49

9

BOLT | MODEL H/J/K This part replaces 01107-06163.

01500-0616A

$1.78

10

.WASHER | MODEL H/J/K This part replaces 08322-21066.

08322-0106B

$2.26

11

HOLDER, IGNITION COIL | MODEL H/J/K

47410-19B20

Unavailable

12

CAP, SPARK PLUG

33510-43010

$24.99

13

SEAL, SPARK PLUG This part replaces 33541-24510.

33541-47D00

$7.83

14

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

15

RECTIFIER ASSY | MODEL H/J/K This part replaces 32800-19B00.

32800-19B11

$227.68

15

RECTIFIER ASSY | MODEL L/M/N/P/R/S

32800-19B11

$227.68

16

SCREW This part replaces 02142-06203.

02142-0620A

$1.49

17

HOLDER, ELECTRIC PARTS REAR

47410-19B10

$18.02

18

BOLT This part replaces 01570-06123.

01570-0612A

$2.63

19

BAND, TOOL | MODEL H

09462-00084

Unavailable

19

BAND, TOOL | MODEL J/K/L/M/N/P/R/S

09462-00090

Unavailable
