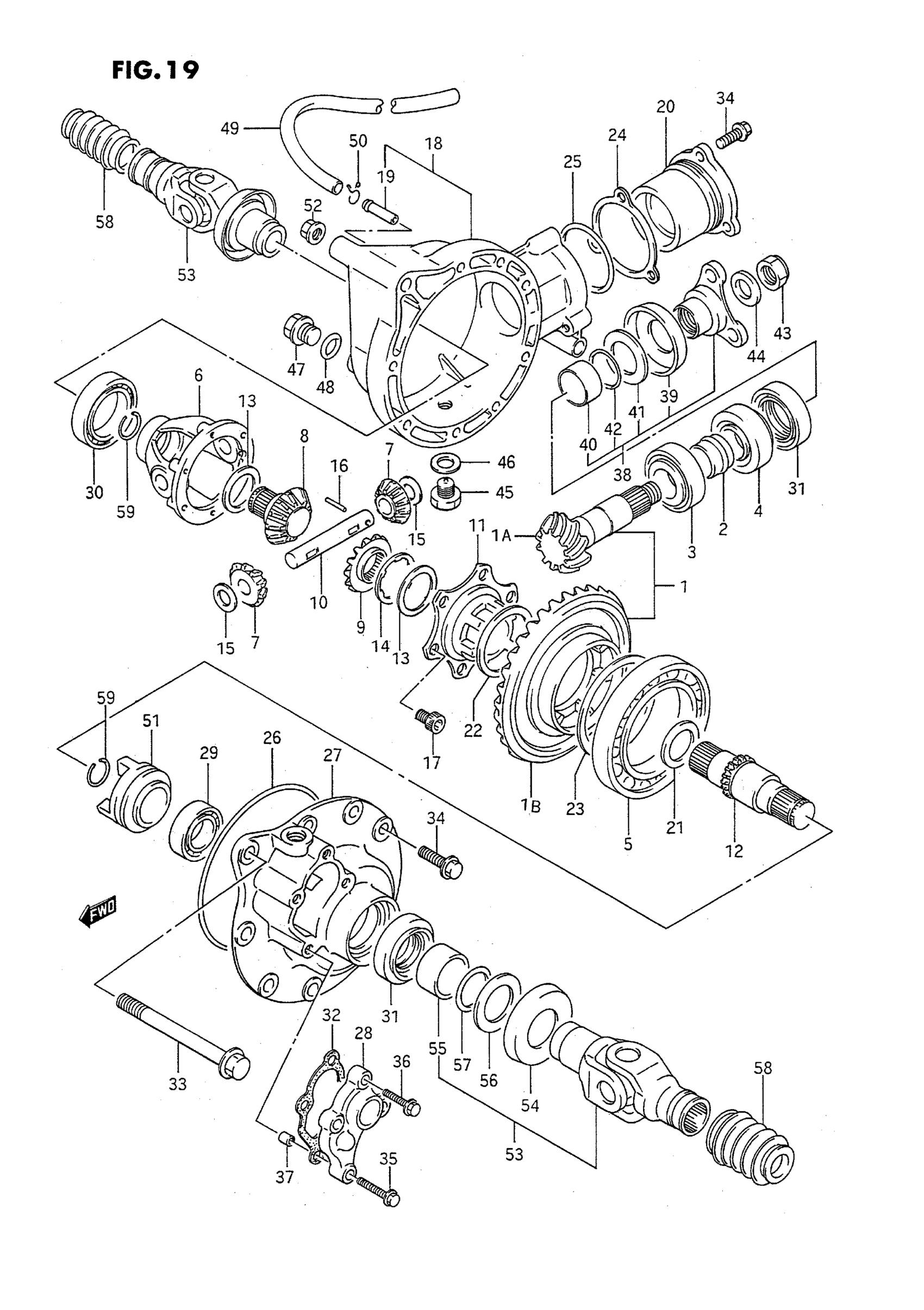

Suzuki LT-4WD (1995) DIFFERENTIAL GEAR Diagram

#

Description
Price

1

GEAR, FRONT DRIVE BEVEL | MODEL H,NT:34/11 !27311-19B10 USED WITH 27321-19B11 This part replaces 27300-19810.

27311-19B10

Unavailable

1

GEAR, FRONT DRIVE BEVEL | MODEL J/K/L/M/N,NT:34/11 !27311-19B10 USED WITH 27321-19B11 This part replaces 27300-19820.

27311-19B10

Unavailable

1A

GEAR, DRIVE BEVEL,NT:11 | MODEL P/R/S

27311-19B10

Unavailable

1B

GEAR, DRIVEN BEVEL,NT:34 | MODEL P/R/S

27321-19B11

Unavailable

2

SPACER

09180-25085

$31.68

3

BEARING, FRONT

09265-25013

$63.43

4

BEARING, REAR

09265-25024

$60.80

5

BEARING (70X110X13)

09262-70001

$140.93

6

CASE, DIFFERENTIAL

27411-19B00

$192.60

7

PINION, DIFFERENTIAL SIDE | NT:10

27331-65000

Unavailable

8

GEAR, RH (NT:13) | MODEL H

27341-19B00

Unavailable

8

GEAR, RH (NT:13) | MODEL J/K/L/M/N/P/R/S

27341-19B10

Unavailable

9

GEAR, LH (NT:13)

27341-84212

Unavailable

10

SHAFT, PINION

27351-51005

Unavailable

11

HUB

27322-19B11

Unavailable

12

SHAFT, DRIVEN OUTPUT | MODEL H

27361-19B00

Unavailable

12

SHAFT,FR DRIVEN | MODEL J/K/L/M/N/P/R/S This part replaces 27361-19B10.

27361-19B20

Unavailable

13

WASHER (T:0.8)

09160-29011

Unavailable

13

WASHER (T:1.0)

09160-29012

Unavailable

13

WASHER (T:1.2)

09160-29013

Unavailable

14

WASHER

09164-29003

Unavailable

15

WASHER (13.3X25X0.85)

09160-13003

$1.99

16

PIN, PINION SHAFT

09202-06022

Unavailable

17

BOLT | MODEL J/K/L/M/N/P This part replaces 07110-08165.

07130-0816A

$3.16

17

BOLT | MODEL R/S This part replaces 07130-08163.

07130-0816A

$3.16

18

HOUSING, DIFFERENTIAL EAR | MODEL H/J/K/L/M/N This part replaces 27450-19B00.

27450-19B13

Unavailable

18

HOUSING, DIFFERENTIAL EAR | MODEL P/R This part replaces 27450-19B11.

27450-19B13

Unavailable

18

HOUSING, DIFFERENTIAL EAR | MODEL S; Includes Item(s) 19 This part replaces 27450-19B12.

27450-19B13

Unavailable

19

UNION, BREATHER

09364-08003

$3.15

20

HOUSING, DRIVE BEVEL GEAR

27441-19B00

$111.52

21

WASHER

08211-25351

$3.72

22

SHIM (T:0.35)

27326-19B00-035

Unavailable

22

SHIM (T:0.40)

27326-19B00-040

Unavailable

22

SHIM (T:0.50)

27326-19B00-050

Unavailable

22

SHIM (T:0.60)

27326-19B00-060

Unavailable

23

SHIM (T:0.35)

27327-34200

Unavailable

23

SHIM (T:0.40)

27327-34210

Unavailable

23

SHIM (T:0.50)

27327-34220

Unavailable

23

SHIM (T:0.60)

27327-34230

Unavailable

24

SHIM (T:0.15)

27445-19B00-015

Unavailable

24

SHIM (T:0.30)

27445-19B00-030

Unavailable

24

SHIM (T:0.35)

27445-19B00-035

Unavailable

24

SHIM (T:0.40)

27445-19B00-040

Unavailable

25

O RING (D:2.4,ID:62.6)

09280-63004

$4.75

26

O RING (D:2.4,ID;131.4)

09280-00022

$12.88

27

CASE, DRIVEN GEAR BEARING

27461-19B10

Unavailable

28

COVER

27471-19B01

$60.97

29

BEARING, LH

08113-60050

$23.65

30

BEARING, RH

09262-40006

$66.33

31

OIL SEAL

09283-34008

$20.72

32

GASKET, CASE COVER | MODEL H/J/K/L/M/N/P/R This part replaces 27473-19B10.

27473-19B11

$3.92

32

GASKET, CASE COVER | MODEL S

27473-19B11

$3.92

33

BOLT (L:110)

09103-10148

$6.94

34

BOLT | MODEL H/J/K/L/M/N/P This part replaces 01517-08258.

01550-08257

$2.81

34

BOLT | MODEL R/S This part replaces 01550-08253.

01550-0825A

$2.32

35

BOLT | MODEL H/J/K/L/M/N/P

01547-06357

$2.03

35

BOLT, WATER PUMP | MODEL R/S This part replaces 01547-06353.

01547-0635B

$2.73

36

BOLT | MODEL H/J/K/L/M/N/P

01547-06257

$2.03

36

BOLT, FINAL GEAR CASE COVER | MODEL R/S This part replaces 01547-06253.

01547-0625B

$2.45

37

PIN

04211-09109

$1.65

38

FLANGE, DRIVE BEVEL GEAR | Includes Item(s) 39 - 42 This part replaces 27180-19B00.

27180-19B10

$169.35

39

PLATE

09165-30002

$6.63

40

COLLAR

27591-19B01

$22.22

41

PLATE, OIL SEAL

27592-19B00

$7.95

42

O RING

09280-28007

$2.11

43

NUT

09159-16004

$3.87

44

WASHER (16X30X3)

09160-16026

$5.00

45

PLUG, OIL DRAIN This part replaces 09247-14019.

09247-14036

$6.17

46

GASKET | MODEL H/J/K/L/M/N/P/R

09168-14004

$1.83

46

GASKET | MODEL S

09168-14002

$2.26

47

PLUG, FILLER

09247-16004

Unavailable

48

O RING (D:2.4,ID:16.8)

09280-17002

$5.11

49

HOSE(7X10.2X200 | L:2000!1140 This part replaces 09352-70103-00B.

09352-70104-00B

$15.32

50

CLIP | MODEL H/J/K/L/M/N

09401-10402

$2.42

50

CLIP | MODEL P/R/S

09401-10403

$1.65

51

DOG | MODEL H/J/K/L/M/N This part replaces 27371-19B00.

27371-19B01

$97.95

51

DOG | MODEL P/R/S

27371-19B01

$97.95

52

NUT

08319-31107

$2.73

53

JOINT, FRONT OUTPUT | MODEL H; Includes Item(s) 54 - 57

27801-19B00

Unavailable

54

PLATE | MODEL H

09165-30001

Unavailable

55

COLLAR | MODEL H

27591-19B01

$22.22

56

PLATE, OIL SEAL | MODEL H

27592-19B00

$7.95

57

O RING | MODEL H

09280-28007

$2.11

58

BOOT | MODEL H

27153-19B00

Unavailable

59

CIRCLIP

09381-22007

$2.33
