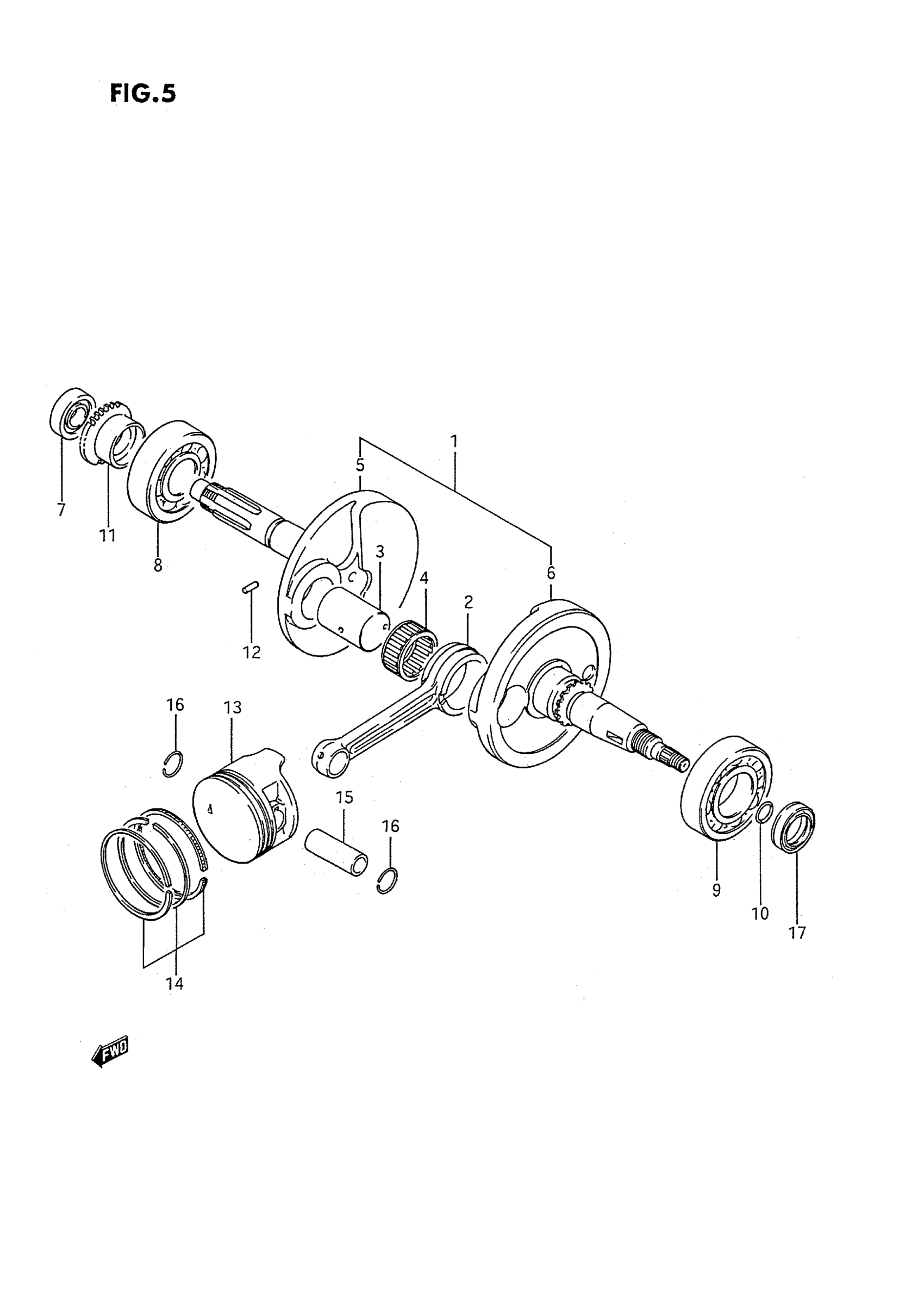

Suzuki LT-4WD (1995) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT ASSY | MODEL H

12200-19B01

Unavailable

1

CRANKSHAFT ASSY | MODEL J/K/L/M This part replaces 12200-19B10.

12200-19B20

Unavailable

1

CRANKSHAFT ASSY | MODEL N/P/R/S; Includes Item(s) 2 - 6

12200-19B20

Unavailable

2

ROD, CONNECTING | MODEL H This part replaces 12161-19B00.

12161-19B03

$134.48

2

ROD, CONNECTING | MODEL J/K/L/M/N/P/R/S This part replaces 12161-19B02.

12161-19B03

$134.48

3

PIN, CRANK This part replaces 12210-22A02.

12210-22A03

$50.10

4

BEARING (30X39X18) | MODEL H

09263-30028-0B0

Unavailable

4

BEARING (30X39X18) | MODEL J/K/L/M/N/P/R/S

09263-30033-0B0

$76.77

5

CRANKSHAFT, RH | MODEL H

12220-19B00

Unavailable

5

CRANKSHAFT, RH | MODEL J/K/L/M

12220-19B10

Unavailable

5

CRANKSHAFT, RH | MODEL N/P/R/S This part replaces 12220-19B20.

12220-19B21

Unavailable

6

CRANKSHAFT, LH | MODEL H/J/K/L/M

12261-19B00

Unavailable

6

CRANKSHAFT LH | MODEL N/P/R/S This part replaces 12261-19B20.

12261-19B21

Unavailable

7

BEARING, RH (15X35X11)

09262-15014

$26.60

8

BEARING, MDL (28X68X18)

09262-28014

$57.95

9

BEARING, LH (35X72X17)

09262-35038

$46.10

10

O RING (D:1.9,ID:12.6) | MODEL H/J/K/L/M/N/P/R This part replaces 09280-13007.

09280-12009

$3.18

10

O RING | MODEL S

09280-12009

$3.18

11

GEAR, OIL PUMP DRIVE (NT:30) | MODEL H

16321-18A00

Unavailable

11

GEAR, OIL PUMP DRIVE (NT:30) | MODEL J/K/L/M/N/P/R/S

16321-19B00

Unavailable

12

PIN | MODEL H This part replaces 06211-03052.

04221-03059

$1.72

12

PIN (4X13.8) | MODEL J/K/L/M/N/P/R/S

04221-04089

$1.49

13

PISTON

12111-19B01

$77.92

13

PISTON SET (OS:0.5) | OPT This part replaces 12111-19B01-050.

12100-19B00-050

Unavailable

13

PISTON SET (OS:1.0) | OPT This part replaces 12111-19B01-100.

12100-19B00-100

$139.17

14

RING SET, PISTON

12140-19B10

$41.60

14

RING SET, PISTON (OS:0.5) | OPT

12140-19B10-050

$50.83

14

RING SET, PISTON (OS:1.0) | OPT

12140-19B10-100

$50.83

15

PIN, PISTON

12151-22A02

$12.15

16

CIRCLIP

09381-16004

$1.58

17

OIL SEAL (22X35X7)

09289-22008

$22.86
