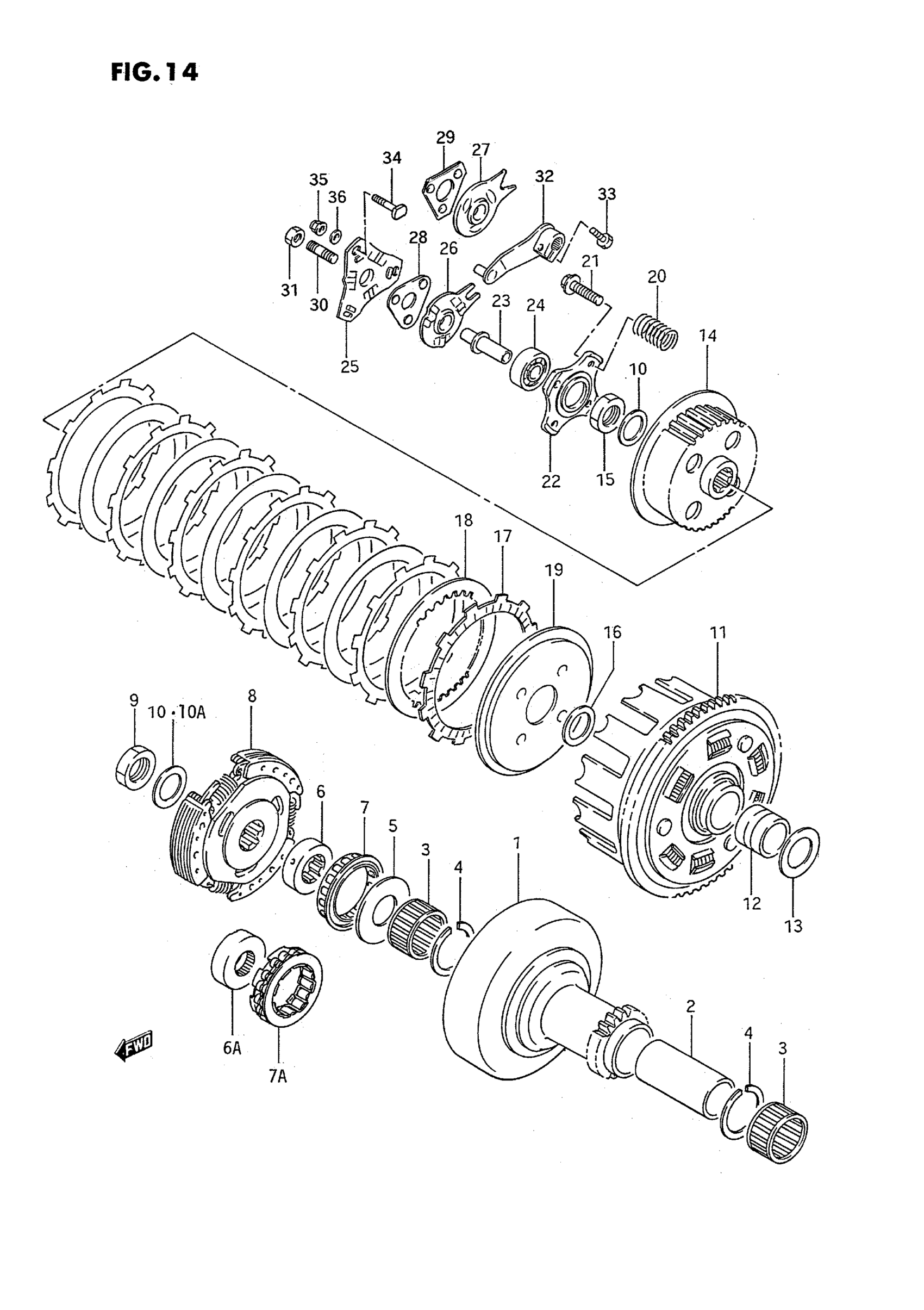

Suzuki LT-4WD (1995) CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE (NT:20) | MODEL H

21110-19B00

Unavailable

1

GEAR, PRIMARY DRIVE (NT:21) | MODEL J/K/L This part replaces 21110-19B10.

21110-19B12

Unavailable

1

GEAR, PRIMARY DRIVE (NT:21) | MODEL M/N/P/R/S This part replaces 21110-19B11.

21110-19B12

Unavailable

2

SPACER | MODEL H

09180-22039

Unavailable

3

BEARING (28X32X16.8) | MODEL H

09263-28023

Unavailable

4

CIRCLIP | MODEL H

09381-33002

Unavailable

5

WASHER (22X48X2.5) | MODEL H

09160-22036

Unavailable

6

RACE, INNER | MODEL H

21631-18A00

Unavailable

6A

RACE, INNER | MODEL J/K/L/M/N/P/R/S This part replaces 21631-19B10.

21631-19B11

$36.17

7

CLUTCH, ONE WAY | MODEL H

21273-01401

Unavailable

7A

CLUTCH, ONE WAY | MODEL J/K/L/M/N/P/R/S

21273-19B10

$163.13

8

SHOE CLUTCH ASS | MODEL H This part replaces 21500-19B00.

21500-19B01

Unavailable

8

CLUTCH ASSY,SHO | MODEL J/K/L/M/N/P/R This part replaces 21500-19B11.

21500-19B22

$223.77

8

CLUTCH ASSY,SHO | MODEL S This part replaces 21500-19B21.

21500-19B22

$223.77

9

NUT | MODEL H

09140-20013

$4.26

9

NUT | MODEL J/K/L/M/N/P/R/S

09140-18012

$8.37

10

LOCK WASHER | MODEL H

09164-20007

$4.60

10

LOCK WASHER (ID:20.1) | MODEL J/K/L/M/N/P/R/S

09164-20007

$4.60

10A

LOCK WASHER (ID:18.3) | MODEL J/K/L/M/N/P/R/S

09164-18001

$3.24

11

GEAR ASSY, PRIMARY DRIVEN | NT:65

21200-19B03

Unavailable

12

SPACER

09180-22035

$21.22

13

WASHER (22X36X1.0) This part replaces 08211-22361.

09181-22251

$3.78

14

HUB, CLUTCH

21410-24500

Unavailable

15

NUT This part replaces 09140-20002.

09140-20001

$3.37

16

WASHER

08211-20323

$3.03

17

PLATE, DRIVE | MODEL H/J/K/L/M/N This part replaces 21441-41B01.

21441-22A01

$14.73

17

PLATE, DRIVE | MODEL P This part replaces 21441-41B02.

21441-22A01

$14.73

17

PLATE, DRIVE | MODEL R/S

21441-22A01

$14.73

18

PLATE, DRIVEN | MODEL H/J/K/L/M/N/P/R This part replaces 21451-11900.

21451-01B40

$8.40

18

PLATE, DRIVEN | MODEL S

21451-01B40

$8.40

19

DISC, PRESSURE

21462-24501

$53.90

20

SPRING

09440-19017

$4.33

21

BOLT | MODEL H/J/K/L/M/N This part replaces 01517-06207.

01550-06207

$2.30

21

BOLT | MODEL R/S This part replaces 01550-06203.

01550-0620A

$1.97

22

PLATE, RELEASE

21465-24500

$19.15

23

PIECE, PUSH

23121-19B00

Unavailable

24

BEARING

09262-12001

$18.47

25

GUIDE, BALL OUTER

23231-19B10

Unavailable

26

GUIDE, BALL INNER | MODEL H/J/K/L/M/N This part replaces 23211-24500.

23211-24502

Unavailable

26

GUIDE, BALL INNER | MODEL P

23211-24502

Unavailable

27

GUIDE, BALL INNER | MODEL R/S

23211-24201

Unavailable

28

BALL, RELEASE | MODEL H/J/K/L/M/N/P

23250-24500

Unavailable

29

BALL, RELEASE | MODEL R/S

23250-31003

$28.18

30

SCREW, ADJUSTER

09134-08009

$3.87

31

NUT, ADJUSTER | MODEL J/J/K/L/M/N/P

08310-00087

$2.13

31

NUT, ADJUSTER | MODEL R/S This part replaces 09140-08012.

09140-08019

$2.23

32

ARM, RELEASE

23220-24500

$32.92

33

BOLT | MODEL H/J/K/L/M/N This part replaces 09100-06091.

01500-06207

$2.28

33

BOLT | MODEL P/R/S

01500-06207

$2.28

34

BOLT

09119-06068

$2.53

35

NUT | MODEL H/J/K/L/M/N/P This part replaces 09145-06003.

08313-2006A

$1.97

35

NUT | MODEL R/S This part replaces 08313-20063.

08313-2006A

$1.97

36

SEAL, BOLT

09168-06023

$2.35
