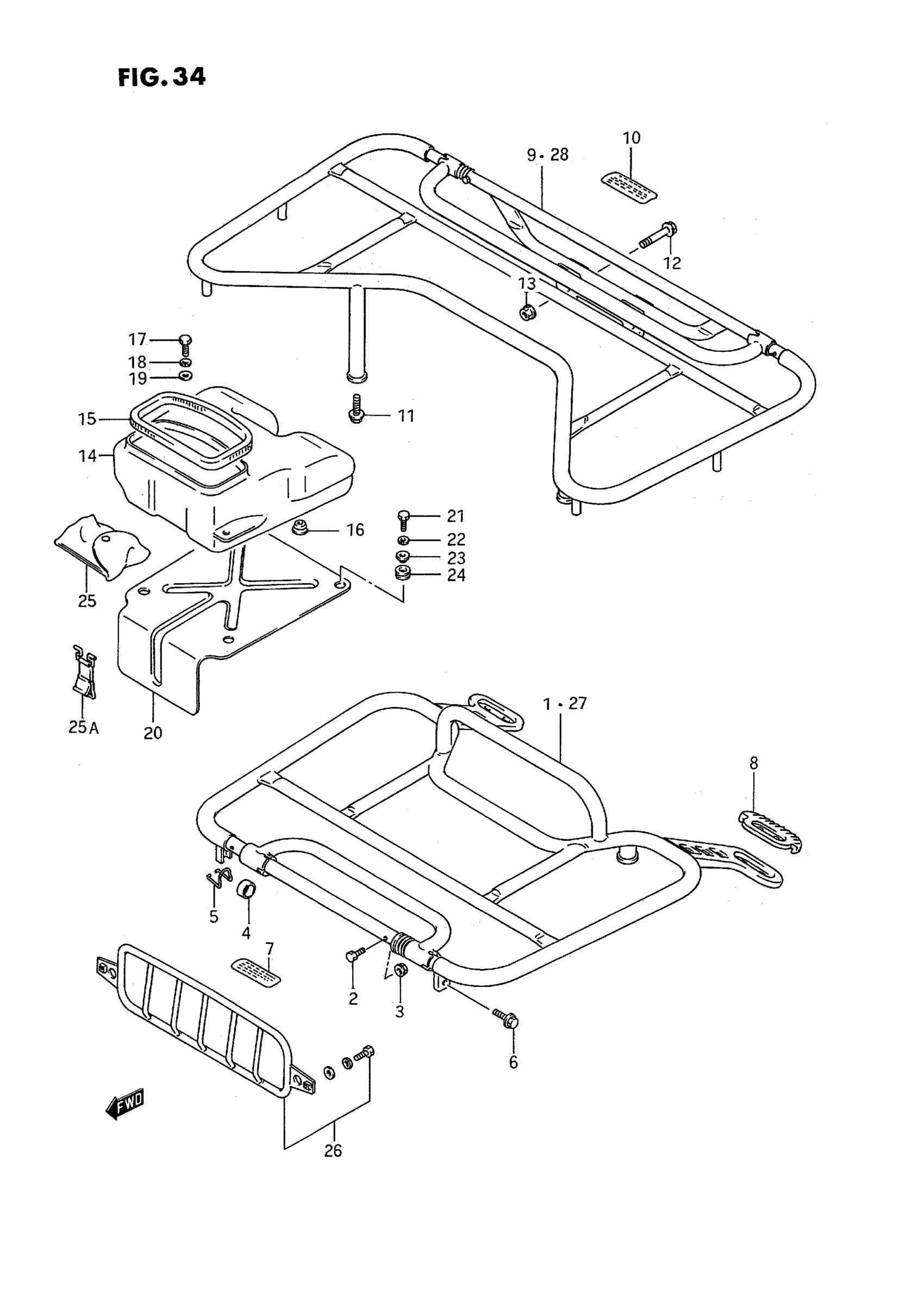

Suzuki LT-4WD (1995) CARRIER (MODEL H/J) Diagram

#

Description
Price

1

CARRIER, FRONT | MODEL H This part replaces 46400-19B00.

46410-39D50

Unavailable

1

CARRIER, FRONT | MODEL J; Includes Item(s) 2 - 5 This part replaces 46400-19B01.

46410-39D50

Unavailable

2

BOLT This part replaces 01107-05258.

01500-0525A

$1.77

3

.NUT This part replaces 08319-21055.

08319-2105A

$2.19

4

BUSH

46399-19B00

Unavailable

5

CLIP

46478-19B00

Unavailable

6

BOLT (8X16) This part replaces 01517-08165.

01550-0816A

$2.32

7

LABEL,REAR CARR This part replaces 68381-24500.

68391-19B01

$5.60

8

KNEE PAD, FRONT CARRIER

46480-19B00

Unavailable

9

CARRIER, REAR | MODEL H This part replaces 46300-19B00.

46310-39D50

Unavailable

9

CARRIER, REAR | MODEL J This part replaces 46300-19B02.

46310-39D50

Unavailable

10

LABEL,FRONT CAR This part replaces 68391-24500.

68381-19B01

$5.42

11

BOLT (8X12) This part replaces 01517-08126.

01550-0812A

$2.32

12

BOLT,8X50 This part replaces 09103-08082.

09103-08395

$3.68

13

NUT This part replaces 08319-31085.

08319-3108A

$2.32

14

BOX, REAR

47431-19B00

Unavailable

15

MOLDING, REAR BOX

92114-19B00

$35.20

16

CAP (OD:18) This part replaces 09250-10011.

09250-10033

$1.49

17

BOLT | MODEL H This part replaces 01107-06166.

01500-0616A

$1.78

17

BOLT | MODEL J This part replaces 01107-06127.

01500-06127

$1.97

18

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

19

WASHER, FRONT | MODEL H This part replaces 09160-06004.

09160-06134

$1.91

19

WASHER | MODEL J This part replaces 09160-06006.

09160-06084

$1.78

20

PLATE, HEAT SHIELD

47432-19B02

$52.88

21

BOLT

01500-06167

$1.97

22

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

23

WASHER

09169-06040

$1.92

24

CUSHION This part replaces 09320-08030.

09320-08511

$2.02

25

TOOL ASSY This part replaces 09800-00343.

09800-21075

$44.50

25A

BAND, TOOL

09462-00090

Unavailable

26

GUARD SET, HEAD LAMP | OPT This part replaces 48500-19840.

48500-19841

Unavailable

27

NO DESCRIPTION AVAILABLE | OPT,MODEL H This part replaces 46300-19840.

46300-19851

Unavailable

27

NO DESCRIPTION AVAILABLE | OPT,MODEL J This part replaces 46300-19844.

46300-19851

Unavailable

28

CARRIER SET, FRONT | OPT,MODEL H This part replaces 46400-19840.

46400-19841

Unavailable

28

CARRIER SET, FRONT | OPT,MODEL J

46400-19841

Unavailable
