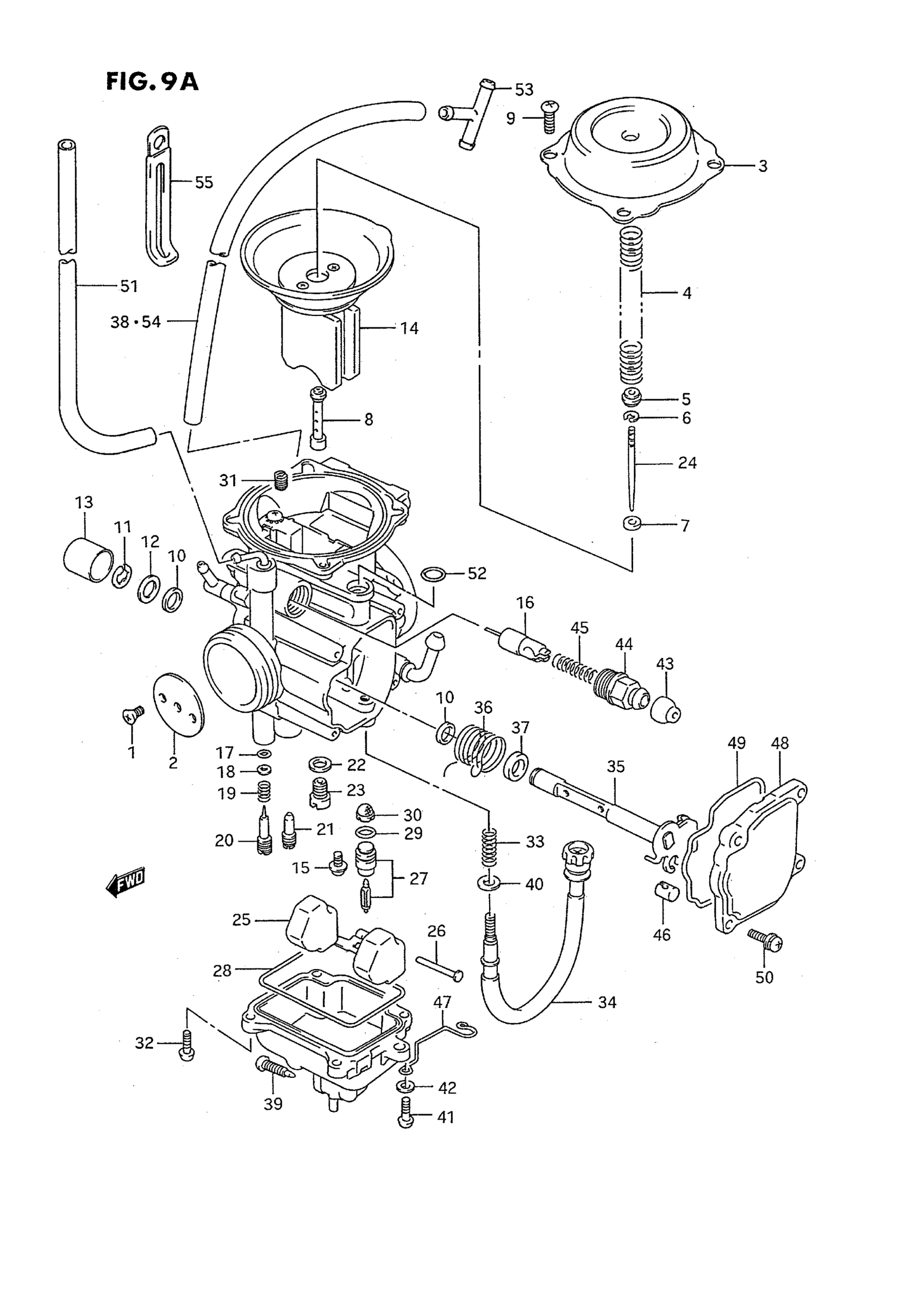

Suzuki LT-4WD (1995) CARBURETOR (MODEL L/M/N/P/R/S) Diagram

#

Description
Price

CARBURETOR ASSY | MODEL L !13200-19B63 USED WITH 09359-50823-00A 1PC This part replaces 13200-19B60.

13200-19B65

Unavailable

CARBURETOR ASSY | MODEL M/N This part replaces 13200-19B62.

13200-19B65

Unavailable

CARBURETOR ASSY | MODEL P/R F.NO.%102986 This part replaces 13200-19B63.

13200-19B65

Unavailable

CARBURETOR ASSY | MODEL R F.NO.102987%/MODEL S; Includes Item(s) 1 - 51 This part replaces 13200-19BA0.

13200-19BA3

Unavailable

1

SCREW, THROTTLE VALVE This part replaces 13604-42A00.

13604-44080

$2.92

2

VALVE, THROTTLE

13551-42A10

Unavailable

3

COVER

13502-42A00

$38.47

4

SPRING

13417-42A00

$6.79

5

RING

13382-42A00

$4.48

6

E RING

13394-10010

$5.45

7

RING

13387-47010

$7.22

8

JET, NEEDLE (P-4)

09494-00512

Unavailable

9

SCREW This part replaces 02112-04085.

02112-0408A

$1.49

10

SEAL This part replaces 13556-05A10.

13556-05A11

$3.59

11

E RING

13617-44080

$2.90

12

WASHER

13557-47070

$3.59

13

CAP

13578-47070

$4.52

14

DIAPHRAGM ASSY | MODEL L/M/N This part replaces 13500-19B50.

13500-19B63

Unavailable

14

DIAPHRAGM ASSY | MODEL P/R/S This part replaces 13500-19B61.

13500-19B63

Unavailable

15

SCREW

13602-43410

$2.92

16

PLUNGER ASSY

13411-19B50

$15.35

17

O-RING This part replaces 13295-29900.

13295-29901

$4.34

18

WASHER

13291-29900

$1.98

19

.SPRING (NT:45)

13268-47070

$4.34

20

SCREW, PILOT (2 7/8)

13279-47070

$13.36

21

JET, PILOT (40)

09492-40014

$9.38

22

WASHER, NEEDLE JET This part replaces 13332-44080.

13382-03110

$2.80

23

JET, MAIN (122.5)

09491-24013

$11.38

24

NEEDLE, JET (J8-5D40) | MODEL L/M/N/P/R F.NO.%102986

13383-19B50

$18.75

24

NEEDLE, JET (J8-5D67) | MODEL R F.NO.102987% MODEL S

13383-19B60

$15.77

25

FLOAT

13250-42A00

$34.08

26

PIN

13254-92311

$2.07

27

VALVE ASSY, NEEDLE (2.0) | MODEL L/M/N/P This part replaces 13370-42A10.

13370-44500

$50.98

27

VALVE ASSY, NEEDLE | MODEL R/S

13370-44500

$50.98

28

O RING, FLOAT CHAMBER

13251-42A00

$9.03

29

O RING This part replaces 13374-44080.

13374-35C00

$5.99

30

FILTER This part replaces 13376-84110.

13376-19F00

$10.28

31

JET, PILOT AIR (160)

09493-32002

$16.57

32

SCREW This part replaces 13602-05A40.

02112-0412A

$1.49

33

SPRING

13268-19B50

$4.28

34

ADJUSTER | MODEL L This part replaces 13267-19B50.

13260-19BV0

Unavailable

34

ADJUSTER | MODEL M/N/P/R/S

13267-19B70

$50.69

35

SHAFT ASSY, THROTTLE

13550-19B50

Unavailable

36

SPRING

13573-19B50

Unavailable

37

RING

13574-19B50

Unavailable

38

HOSE (5X8X2000) | MODEL L This part replaces 13684-19B00.

09351-50803-00B

$9.10

39

SCREW, DRAIN This part replaces 13247-13A00.

13247-02340

$4.99

40

WASHER

13615-45010

$3.25

41

SCREW This part replaces 02112-04166.

02112-0416A

$1.49

42

WASHER This part replaces 13606-02340.

08322-0104A

$1.91

43

.CAP This part replaces 13681-04010.

13681-04011

$4.93

44

HOLDER, GUIDE

13418-43410

$7.22

45

SPRING

13417-43010

$4.34

46

GUIDE, CABLE

13591-19B50

$10.28

47

CLIP | MODEL L

13692-19B50

Unavailable

47

CLIP | MODEL M/N/P/R/S

13692-19B60

Unavailable

48

COVER

13502-19B50

$20.10

49

O RING

13251-19B50

$12.30

50

SCREW

13602-19B50

$3.43

51

HOSE(4.5X8.5X60 | MODEL R F.NO.102987%/MODEL S This part replaces 09354-45853-600.

09355-45001-600

$9.48

52

O RING (D:1.7,ID:6.0) This part replaces 09280-06009.

09280-06008

$2.03

53

UNION, 3 WAY

09367-08004

$4.83

54

HOSE, AIR VENT | MDOEL M/N/P/R/S L:1000!650 This part replaces 09359-50823-00A.

09359-50823-00B

Unavailable

55

CLAMP, AIR VENT HOSE | MODEL M/N/P/R/S This part replaces 09404-06419.

09404-06435

$3.68
