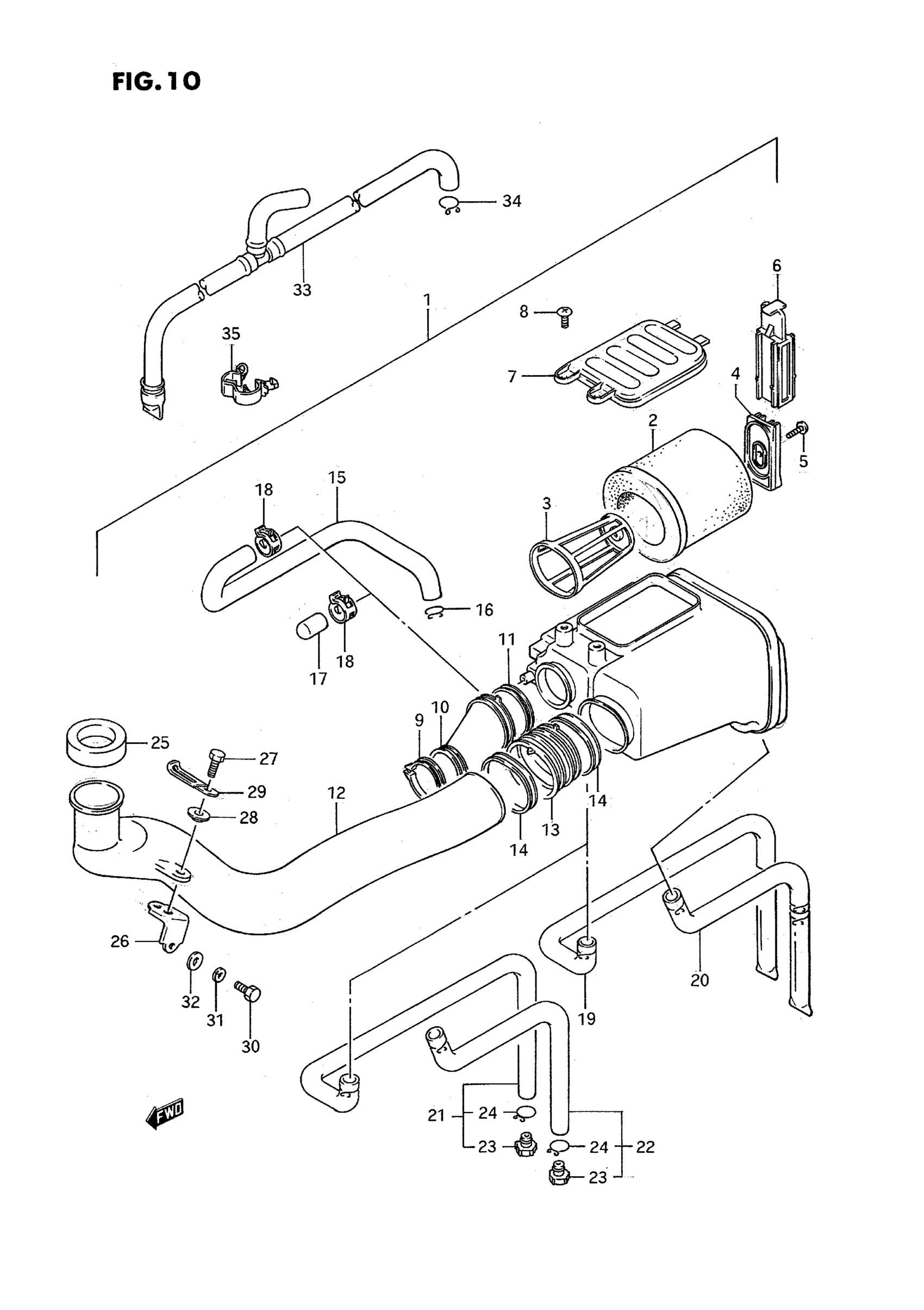

Suzuki LT-4WD (1995) AIR CLEANER (MODEL H/J/K/L) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL H/K This part replaces 13700-19B02.

13700-39D01

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL J This part replaces 13700-19B10.

13700-39D01

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL L; Includes Item(s) 2 - 29 This part replaces 13700-19B51.

13700-39D01

Unavailable

2

FILTER

13781-19B00

$27.40

3

HOLDER This part replaces 13790-19B00.

13810-39D00

$24.39

4

GUIDE, SLIDER

13797-19B00

$3.56

5

SCREW This part replaces 02142-05164.

02142-0516A

$1.49

6

SLIDER

13798-33400

$10.28

7

CAP

13750-19B00

$16.13

8

SCREW This part replaces 02142-06125.

02142-0612A

$1.49

9

CLAMP | MODEL H/J/K

09402-50208

$4.77

9

CLAMP | MODEL L This part replaces 09402-56208.

09402-56901

$5.36

10

TUBE, OUTLET | MODEL H/J/K

13881-19B01

Unavailable

10

TUBE,OUTLET | MODEL L This part replaces 13881-19B20.

13881-19B21

$15.10

11

CLAMP | MODEL H/J/K

09402-58208

$5.36

11

..CLAMP | MODEL L

09402-60208

$5.11

12

TUBE, INLET This part replaces 13891-19B10.

13891-19B12

$100.02

13

JOINT This part replaces 13889-19B00.

13889-19B01

$14.20

14

CLAMP

13826-19B00

$7.97

15

TUBE, BREATHER | MODEL H/K/L

13853-19B00

Unavailable

16

CLIP | MODEL H/K

09401-14301

$2.35

16

CLIP | MODEL L

09401-14301

$2.35

17

.PLUG | MODEL J

13859-41B10

$7.38

18

CLIP This part replaces 13824-43400.

09401-14404

$2.28

19

TUBE ASSY, DRAIN | MODEL H/J/K

13856-19B01

Unavailable

20

TUBE ASSY, DRAIN | MODEL H/J/K

13870-19B80

Unavailable

21

TUBE ASSY, DRAIN | MODEL L

13856-19B01

Unavailable

22

TUBE ASSY, DRAIN | MODEL L

13870-19B80

Unavailable

23

PLUG, DRAIN | MODEL L

13877-00190

$5.32

24

CLIP | MODEL L

09401-14301

$2.35

25

CAP, INLET

13892-19B00

$13.92

26

BRACKET

13761-19B00

$6.38

27

BOLT This part replaces 01107-06165.

01500-0616A

$1.78

28

SPACER

13838-02B00

$3.56

29

CLAMP(L:80) This part replaces 09404-06405.

09404-06036

$1.74

30

BOLT This part replaces 01107-06127.

01500-06127

$1.97

31

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

32

WASHER This part replaces 08322-21067.

08322-01067

$2.13

33

TUBE, BREATHER | MODEL J; Includes Item(s) 34

13850-19B11

Unavailable

34

CLIP | MODEL J

09401-14301

$2.35

35

CLAMP | MODEL J

09408-00112

Unavailable
