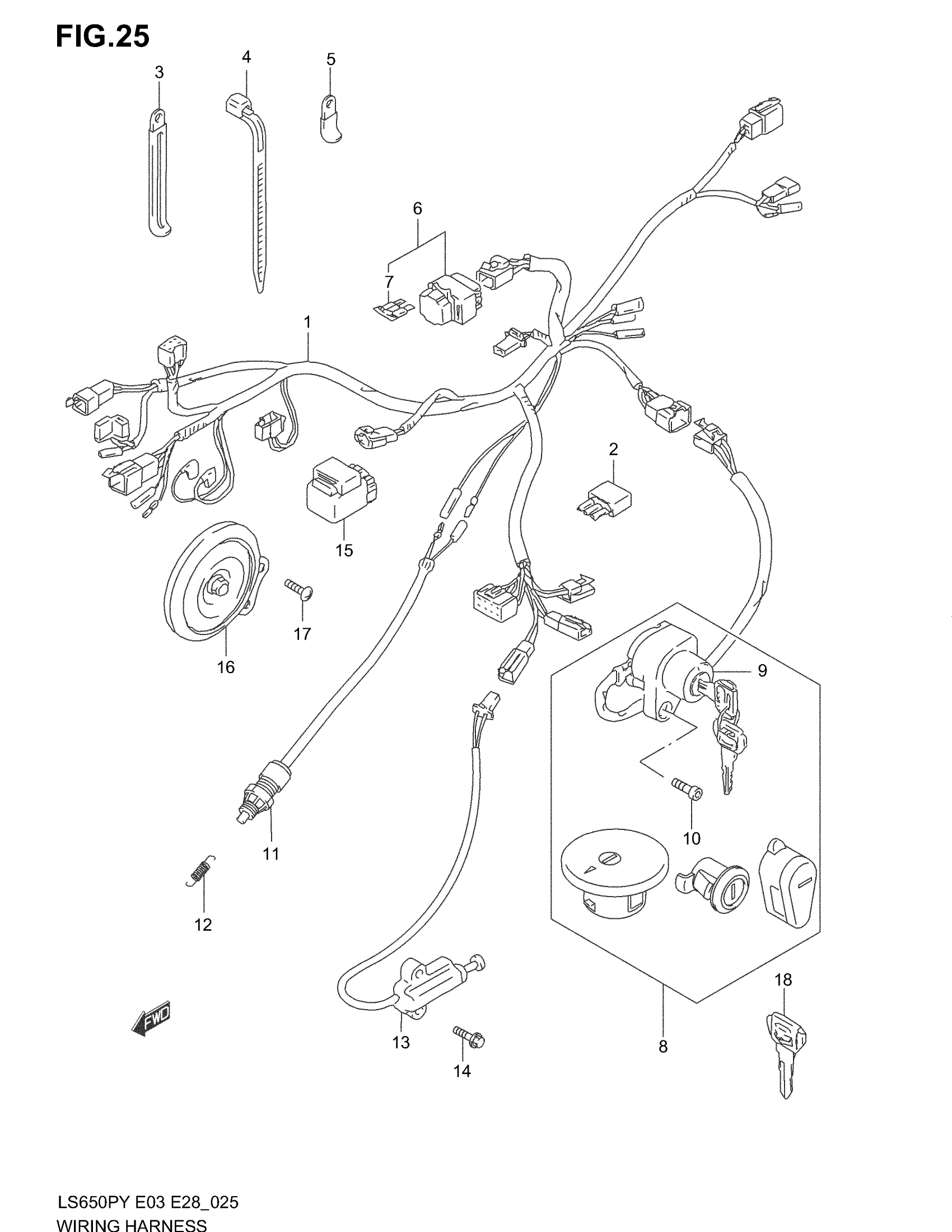

Suzuki LS650P (2004) WIRING HARNESS (MODEL T/V/W/X/Y/K1/K2/K3) Diagram

#

Description
Price

1

HARNESS, WIRING | Includes Item(s) 2

36610-24B70

Unavailable

2

.DIODE This part replaces 36611-38A00.

36611-38A10

$13.16

3

CLAMP This part replaces 09404-06431.

09404-06039

$1.74

3

CLAMP (L:80) This part replaces 09404-08419.

09404-08422

$2.65

4

CLAMP (L:125)

09407-14403

$2.26

4

CLAMP (L:165)

09407-18402

$2.19

4

CLAMP (L:235)

09407-25401

$4.66

5

CLAMP, WIRING HARNESS

36651-24B00

Unavailable

6

FUSE ASSY, MAIN | Includes Item(s) 7

36740-24B01

$28.18

7

FUSE (20A)

09481-20101

$2.12

8

LOCK SET

37100-24844

$285.64

8

LOCK SET | E33; Includes Item(s) 9 - 9

37100-24880

Unavailable

9

SWITCH ASSY, IGNITION | MODEL T/V This part replaces 37110-24B02.

37110-24B03

$100.02

9

SWITCH ASSY, IGNITION | MODEL W/X/Y/K1/K2/K3

37110-24B03

$100.02

10

BOLT This part replaces 07130-05163.

07130-0516A

$2.41

11

SWITCH ASSY, STOP LAMP

37740-31D00

$28.23

12

SPRING

09443-06077

$5.60

13

SWITCH ASSY,SID This part replaces 37840-12X50.

37840-12X52

$69.30

14

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

15

RELAY ASSY. SIDE STAND

38740-24X50

$45.20

16

HORN ASSY

38500-24B00

$95.62

17

SCREW This part replaces 02142-06123.

02142-0612A

$1.49

18

KEY, BLANK TYPE C (A51) | OPT

37146-03A00

$9.89

18

KEY, BLANK TYPE D (A52) | OPT

37146-03A10

$11.63

18

KEY, BLANK TYPE E (A53) | OPT

37146-03A20

$12.10

18

KEY, BLANK TYPE F (A54) | OPT

37146-03A30

$10.28
