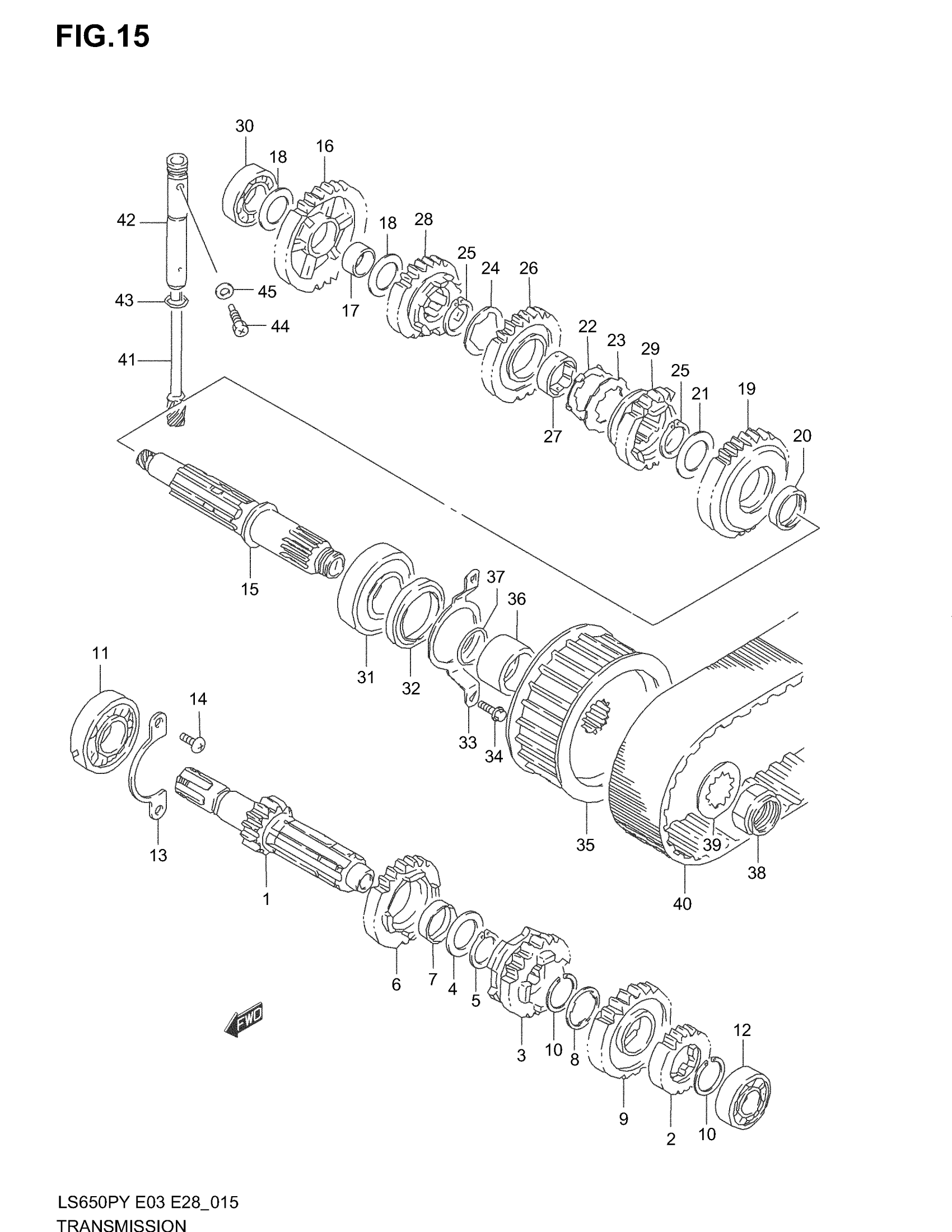

Suzuki LS650P (2004) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT (NT:15) | MODEL T/V This part replaces 24121-24B11.

24121-24B12

Unavailable

1

COUNTERSHAFT (NT:15) | MODEL W/X/Y/K1/K2/K3/K4

24121-24B12

Unavailable

2

GEAR, 2ND DRIVE (NT:19) | MODEL T/V This part replaces 24221-24B20.

24221-24B21

Unavailable

2

GEAR, 2ND DRIVE (NT:19) | MODEL W/X/Y/K1/K2/K3/K4

24221-24B21

Unavailable

3

GEAR, 3RD DRIVE (NT:21) | MODEL T/V %F.NO.V2102203

24231-24B20

Unavailable

3

GEAR, 3RD DRIVEN (NT:21) | MODEL T/V F.NO.V2102204% This part replaces 24231-24B21.

24231-24B30

Unavailable

3

GEAR, 3RD DRIVEN (NT:21) | MODEL W/X/Y/K1/K2/K3/K4

24231-24B30

Unavailable

4

WASHER

08211-25351

$3.72

5

SNAP RING

09380-25003

$3.04

6

GEAR, 4TH DRIVE (NT:23) | MODEL T/V %F.NO.V2102203

24241-24B11

Unavailable

6

GEAR, 4TH DRIVE (NT:23) | MODEL T/V F.NO.V2102204%

24241-24B12

Unavailable

6

GEAR, 4TH DRIVE (NT:23) | MODEL W/X/Y/K1 This part replaces 24241-24B13.

24241-24B12

Unavailable

6

GEAR, 4TH DRIVE (NT:23) | MODEL K2/K3/K4

24241-24B20

Unavailable

7

BUSH, 4TH DRIVE GEAR | MODEL T/V/W/X/Y/K1 This part replaces 09300-25023.

24252-19F00

$17.12

7

BUSH | MODEL K2/K3/K4

24252-19F00

$17.12

8

WASHER LOCK (25.1X31X1.0)

09167-25012

$3.70

9

GEAR, 5TH DRIVE (NT:26) | MODEL T/V %F.NO.V2102203 This part replaces 24251-24B12.

24251-24B13

Unavailable

9

GEAR, 5TH DRIVE (NT:26) | MODEL T/V F.NO.V2102204%

24251-24B13

Unavailable

9

GEAR, 5TH DRIVE (NT:26) | MODEL W/X/Y/K1/K2/K3/K4

24251-24B13

Unavailable

10

CIRCLIP

09380-25010

$2.91

11

BEARING, RH (22X56X16)

09262-22028

$77.48

12

BEARING, LH (17X40X12)

09262-17027

$35.28

13

HOLDER, BEARING

24741-24B00

Unavailable

14

SCREW This part replaces 02112-06123.

02112-0612A

$1.49

15

DRIVE SHAFT | MODEL T/V This part replaces 24130-24B11.

24130-24B12

$216.17

15

DRIVE SHAFT | MODEL W/X/Y/K1/K2/K3/K4

24130-24B12

$216.17

16

GEAR, 1ST DRIVEN (NT:35)

24311-24B11

Unavailable

17

BUSH

09300-20032

$17.50

18

WASHER | MODEL T

08211-20301

$2.35

18

WASHER (20X30X1.0) | MODEL V/W/X/Y/K1/K2/K3/K4

09181-20195

$2.60

19

GEAR, 2ND DRIVEN (NT:30)

24321-24B20

Unavailable

20

BUSH

09300-25020

$16.87

21

WASHER

08211-25351

$3.72

22

WASHER (25.1X37X2.5)

09169-25001

$2.70

23

WASHER,LOCK (25.1X41X1.5)

09167-25013

$3.30

24

WASHER (25.5X35X1.0)

09167-25016

$3.72

25

SNAP RING

09380-25003

$3.04

26

GEAR, 3RD DRIVEN (NT:24)

24331-24B20

Unavailable

27

BUSH, 3RD DRIVEN GEAR | MODEL T/V/W/X/Y/K1 This part replaces 24332-24500.

24332-24510

$18.67

27

BUSH | MODEL K2/K3/K4

24332-24510

$18.67

28

GEAR, 4TH DRIVEN (NT:22) | MODEL T/V This part replaces 24341-24B11.

24341-24B20

Unavailable

28

GEAR, 4TH DRIVEN (NT:22) | MODEL W This part replaces 24341-24B12.

24341-24B20

Unavailable

28

GEAR, 4TH DRIVEN (NT:22) | MODEL X/Y/K1/K2/K3/K4

24341-24B20

Unavailable

29

GEAR, 5TH DRIVEN (NT:23) | MODEL T/V/W This part replaces 24351-24B12.

24351-24B13

Unavailable

29

GEAR, 5TH DRIVEN (NT:23) | MODEL X/Y/K1/K2/K3/K4

24351-24B13

Unavailable

30

BEARING (20X42X12) | MODEL T/V/W/X This part replaces 09262-20086.

09262-20106

$29.35

30

BEARING, RH (20X42X12) | MODEL Y/K1/K2/K3/K4

09262-20106

$29.35

31

BEARING (25X62X17) This part replaces 09262-25083.

09262-25125

$59.09

32

OIL SEAL, LH (36X50X6.0)

09283-36003

$12.61

33

HOLDER, OIL SEAL

24751-24B00

$7.37

34

BOLT This part replaces 01547-06123.

01547-0612B

$1.49

35

PULLEY, FRONT

27510-24B01

$143.78

36

SPACER

27531-24B00

$31.72

37

O RING (D:2.5,ID:23.8)

09280-24010

$5.64

38

NUT

09159-20004

$15.67

39

WASHER (25.3X41.6X1) | MODEL T This part replaces 09167-25014.

09167-25019

$2.19

39

LOCK WASHER | MODEL V/W/X/Y/K1/K2/K3/K4

09167-25019

$2.19

40

BELT, DRIVE

27611-24B00-133

$301.62

41

GEAR, DRIVEN (NT:8)

26131-24B00

Unavailable

42

SLEEVE

26481-24B01

Unavailable

43

O RING (D:1.3,ID:9.6)

09280-10001

$2.02

44

BOLT (6X10) This part replaces 09135-06013.

09135-06501

$3.04

45

WASHER (6.2X11X1.2)

09168-06004

$1.49
