Description

Price

1

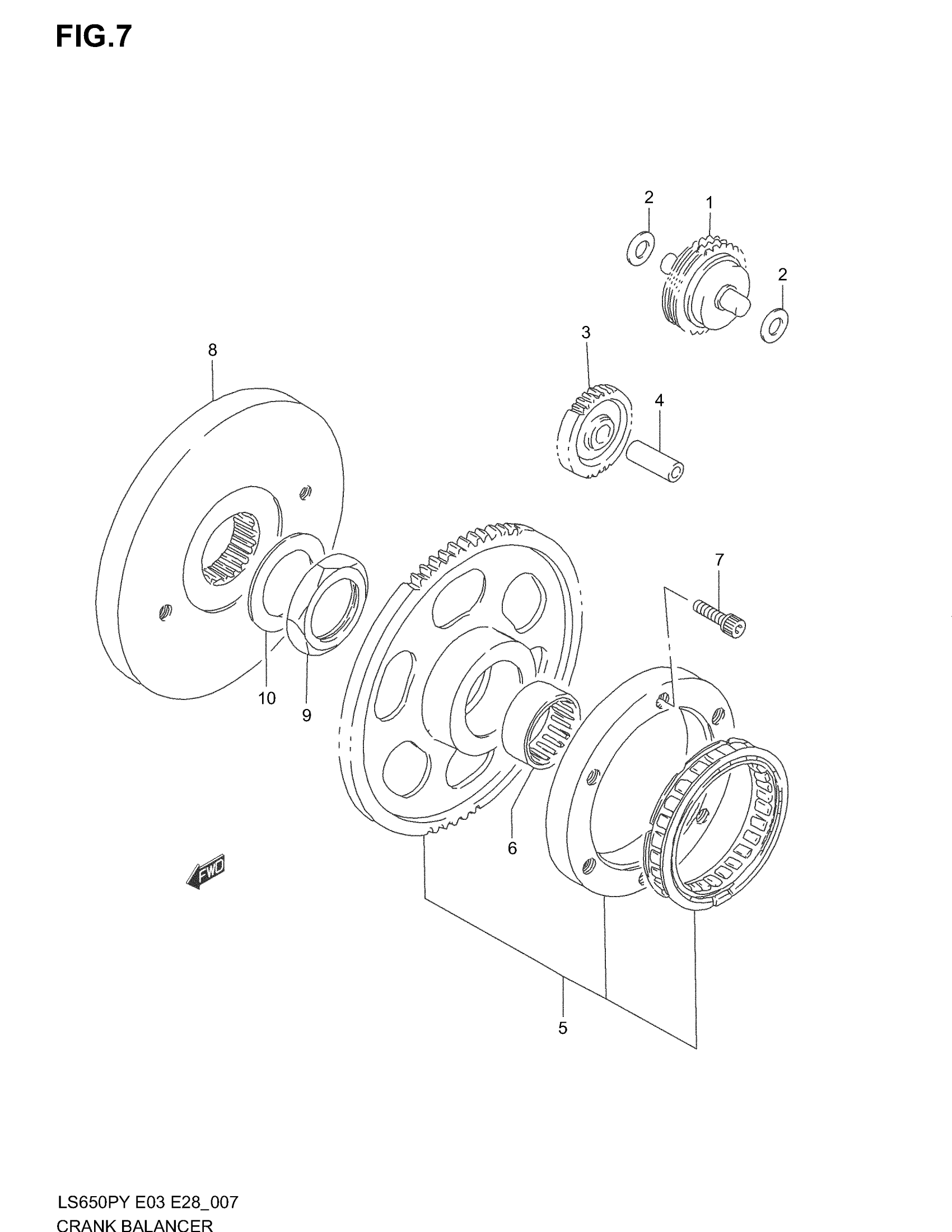

LIMITER ASSY, STARTER IDLE GEAR | MODEL T/V This part replaces 12600-24B00.

12600-24B01

$268.15

1

LIMITER ASSY, STARTER IDLE | MODEL W/X/Y/K1/K2/K3/K4 This part replaces 12600-24B10.

12600-24B11

$268.15

2

SHIM | MODEL T This part replaces 08211-10181.

09181-10167

$1.97

2

WASHER | MODEL V/W/X/Y/K1/K2/K3/K4

09181-10167

$1.97

3

GEAR, STARTER IDLE NO.2 | NT:34

12612-24B03

$64.30

4

PIN (L:30)

09202-10011

$9.40

5

CLUTCH SET, STARTER | Includes Item(s) 6

12600-24831

$364.47

6

BEARING (31X39X17.8)

09263-31009

$47.00

7

BOLT This part replaces 07130-08163.

07130-0816A

$3.16

8

FLYWHEEL

12656-24B02

Unavailable

9

NUT

12664-24B01

$15.42

10

WASHER

09164-35002
