2004 Suzuki LS650P Stand - Rear Brake Diagram

← All diagrams

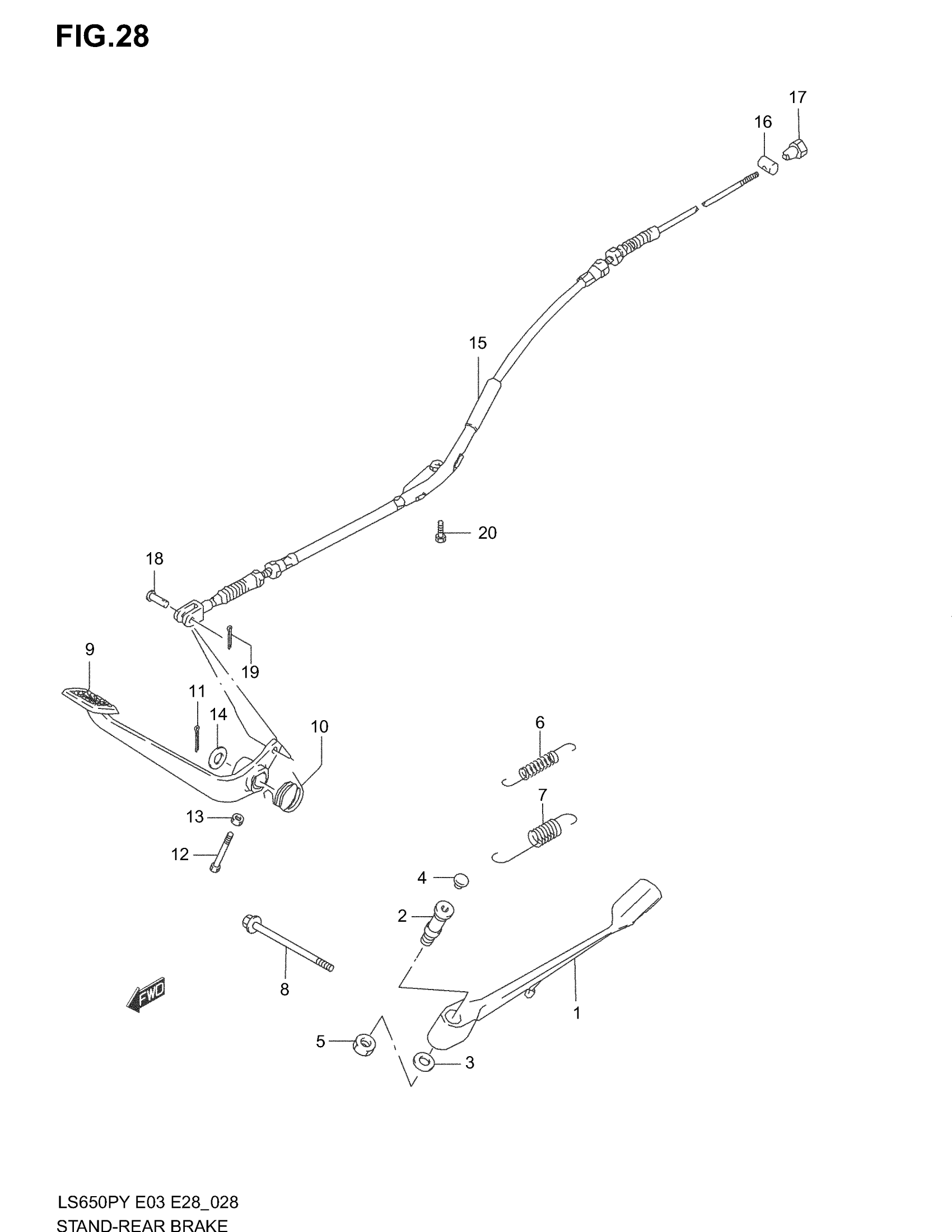

Find the part on the Stand - Rear Brake diagram for your 2004 Suzuki LS650P, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Suzuki LS650P Stand - Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAND, PROP | MODEL T This part replaces 42310-24B00.

42310-24B01

1
Out of stock

1

STAND, PROP | MODEL V/W/X/Y/K1/K2/K3/K4

42310-24B01

1
Out of stock

2

BOLT

42341-38B01

1
Out of stock

3

SHIM | MODEL T/V This part replaces 08221-15245.

09181-15158

1
Out of stock

3

SHIM | MODEL W/X/Y/K1/K2/K3/K4

09181-15158

1
Out of stock

4

CAP, BOLT This part replaces 43575-24B00.

56246-24F00

1
Out of stock

5

NUT

09140-10044

1
Out of stock

6

SPRING, INNER

09443-15034

1
Out of stock

7

SPRING, OUTER

09443-18020

1
Out of stock

8

BOLT, NO.1

09103-10087

1
Out of stock

9

PEDAL This part replaces 43110-24B10.

43100-24B10

1
Out of stock

10

SPRING

09448-32017

1
Out of stock

11

PIN This part replaces 04111-30308.

04111-3030A

1
Out of stock

12

BOLT, ADJUSTER

09100-06150

1
Out of stock

13

NUT This part replaces 08310-00063.

08310-0006A

1
Out of stock

14

WASHER | MODEL T/V This part replaces 09160-16028.

09160-16043

1
Out of stock

14

WASHER | MODEL W/X/Y/K1/K2/K3/K4

09160-16043

1
Out of stock

15

CABLE

58510-24B10

1
Out of stock

16

PIN

09209-13018

1
Out of stock

17

.NUT | MODEL T This part replaces 09150-06009.

09150-06010

1
Out of stock

17

.NUT | MODEL V/W/X/Y/K1/K2/K3/K4 This part replaces 09150-06014.

09150-06010

1
Out of stock

18

PIN

09200-05001

1
Out of stock

19

.COTTER PIN This part replaces 04111-20158.

04111-2015A

1
Out of stock

20

BOLT This part replaces 01570-06163.

01570-0616A

2
Out of stock
