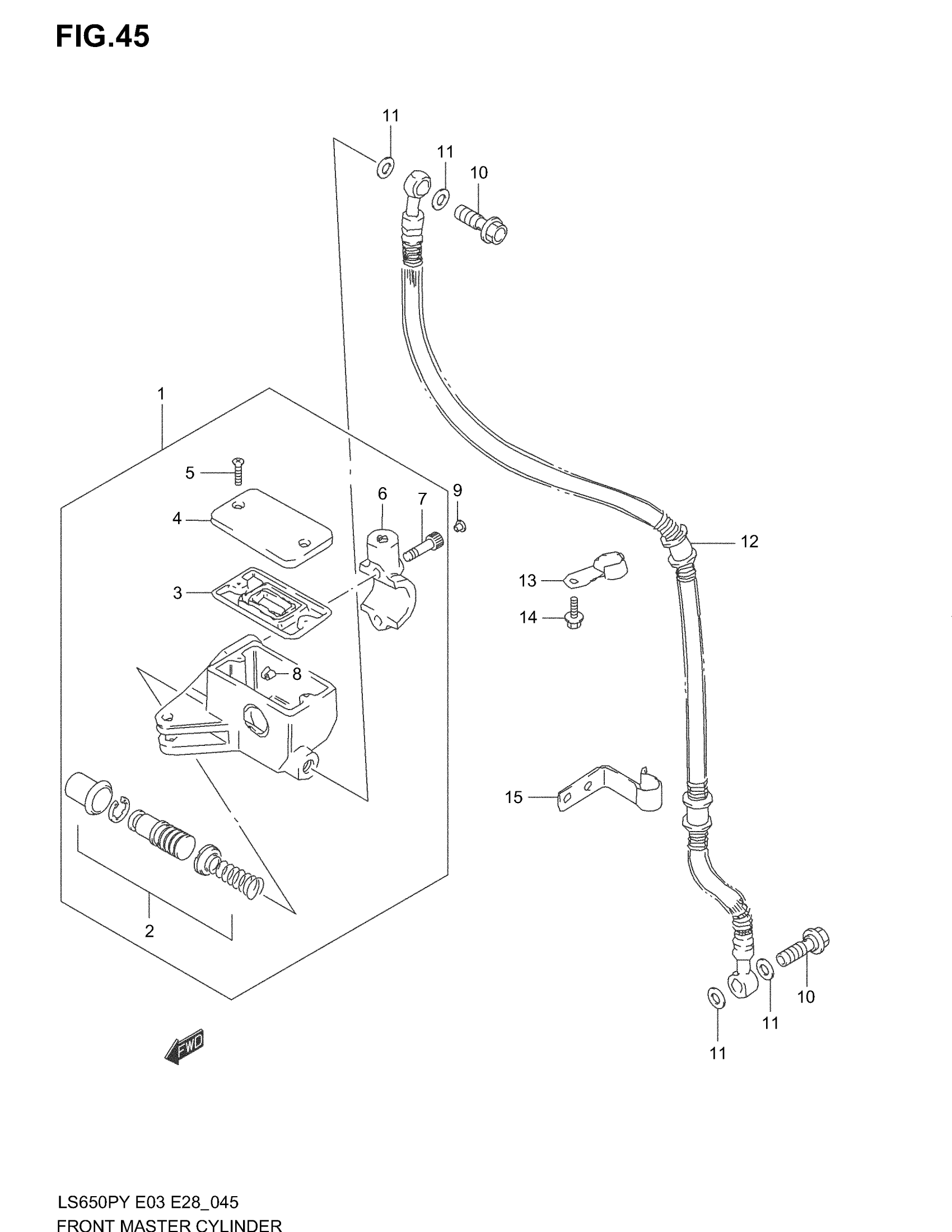

Suzuki LS650P (2004) FRONT MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, FRONT MASTER | Includes Item(s) 2 - 8

59600-24B50

$473.30

2

PISTON/CUP SET

59600-04810

$43.23

3

DIAPHRAGM

59667-49460

$9.36

4

CAP

59669-24B00

$69.47

5

SCREW

02122-04127

$2.03

6

HOLDER

59671-38A00

$35.49

7

BOLT

07130-06207

$2.88

8

PROTECTOR

59664-48B00

$12.43

9

CAP

09250-05008

$3.55

10

UNION This part replaces 09360-10039.

09360-10061

$6.07

11

WASHER (10X15X1.5)

09161-10009

$1.89

12

HOSE, FRONT BRAKE

59480-24B20

$193.00

13

GUIDE, BRAKE HOSE

59541-24B00

$8.32

14

BOLT

01547-06107

$1.73

15

GUIDE, BRAKE HOSE

59268-24B00

$9.50
