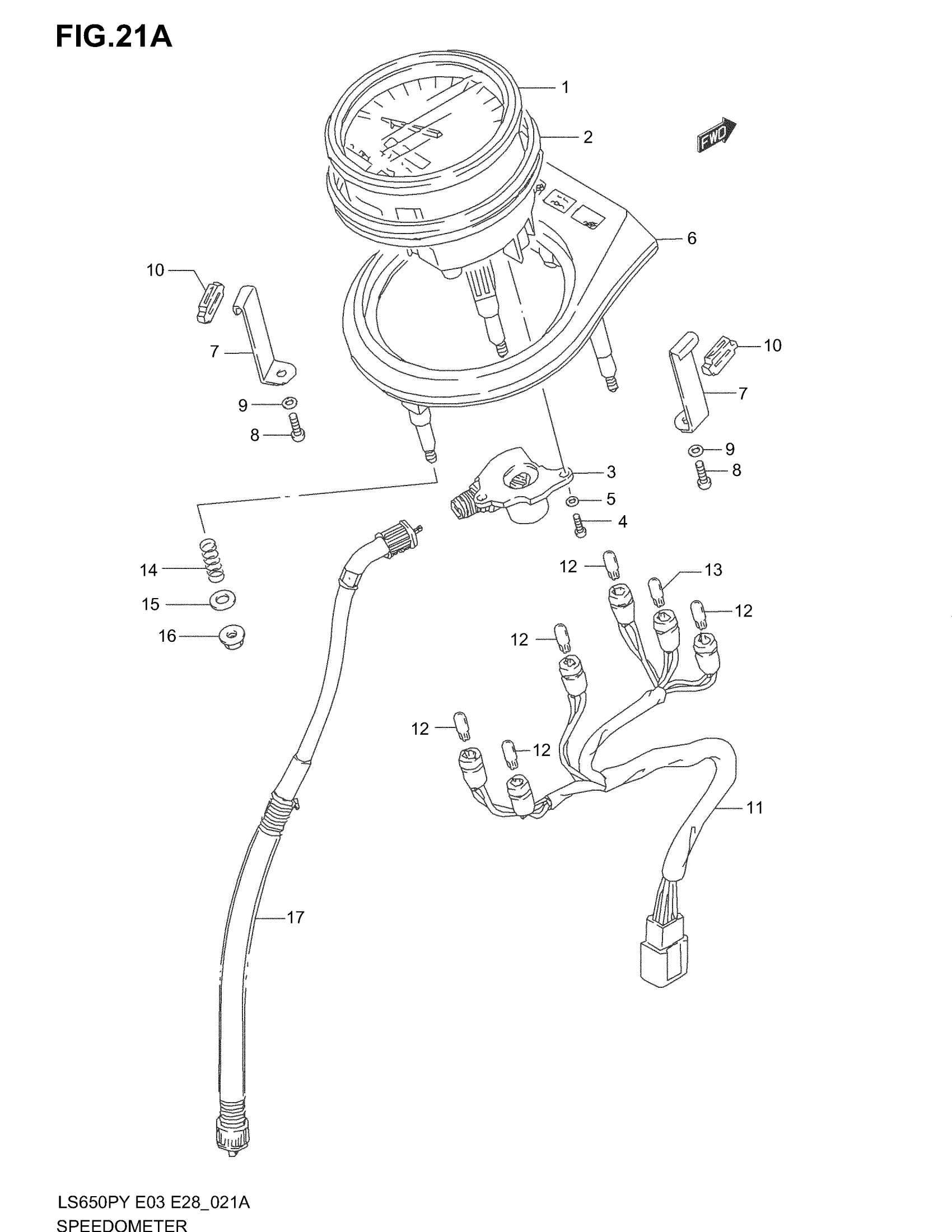

Suzuki LS650P (2004) SPEEDOMETER (E28) Diagram

#

Description
Price

1

SPEEDOMETER (KILO)

34110-24B40

Unavailable

2

CUSHION, METER

34288-24B80

$17.37

3

BOX, METER GEAR | MODEL T This part replaces 34131-33450.

34131-19B00

Unavailable

3

BOX, METER GEAR | MODEL V/W/X/Y/K1/K2/K3/K4

34131-19B00

Unavailable

4

SCREW

02112-04087

$1.49

5

LOCK WASHER This part replaces 08321-01043.

08321-0104A

$1.84

6

HOOD, METER | MODEL T/V This part replaces 34151-24B50.

34151-24B51

Unavailable

6

HOOD, METER | MODEL W/X/Y/K1/K2/K3/K4

34151-24B51

Unavailable

7

BRACKET, METER

34111-24B80

Unavailable

8

SCREW

02112-04087

$1.49

9

LOCK WASHER This part replaces 08321-01043.

08321-0104A

$1.84

10

CUSHION

34189-24B80

$4.87

11

SOCKET, METER

34170-24B20

Unavailable

12

BULB (12V,3W)

09471-12103

$3.83

13

.BULB (12V1.7W)

09471-12108

$3.42

14

SPRING

09440-11022

$2.53

15

WASHER | MODEL T/V This part replaces 09160-05036.

09160-05048

$2.02

15

WASHER | MODEL W/X/Y/K1/K2/K3/K4

09160-05048

$2.02

16

NUT This part replaces 08361-15053.

08361-1505B

$2.38

17

CABLE,SPEEDOMET This part replaces 34910-24B00.

34910-24B01

$99.25
