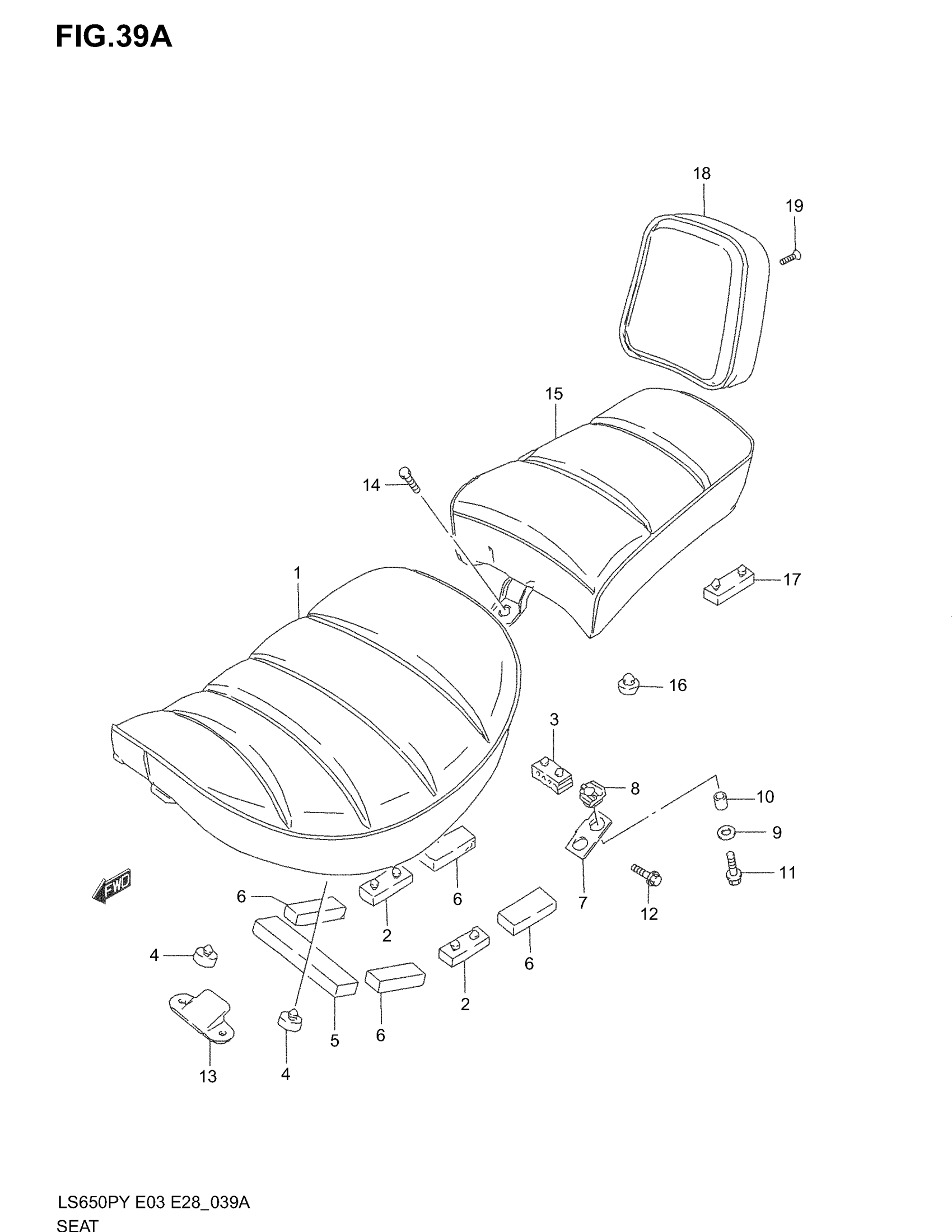

Suzuki LS650P (2004) SEAT (MODEL K2/K3/K4) Diagram

#

Description
Price

1

SEAT SET | Includes Item(s) 2 - 11

45100-24B30-HW9

Unavailable

2

CUSHION, CENTER

45149-43500

$6.85

3

CUSHION, REAR

45149-31300

$3.56

4

CUSHION, FRONT

09321-10002

$2.22

5

CUSHION, CENTER FRONT

45116-24B00

Unavailable

6

CUSHION, CENTER SIDE

46117-24B00

Unavailable

7

BRACKET, SEAT REAR

45114-24B00

$10.17

8

CUSHION, REAR SEAT BRACKET

45118-24B00

$3.77

9

WASHER

09160-06066

$1.89

10

SPACER

45169-24B00

Unavailable

11

BOLT

01550-06257

$2.30

12

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

13

PLATE, SEAT FRONT

45119-24B00

$3.05

14

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

15

SEAT SET, PILLION (BLACK) | Includes Item(s) 16 - 17

45300-24B10-HW9

Unavailable

16

CUSHION,SEAT This part replaces 45149-24B00.

45149-24B01

$3.25

17

CUSHION

45149-43500

$6.85

18

PAD ASSY, SEAT (BLACK)

45350-24B10-48H

Unavailable

19

SCREW This part replaces 02122-05163.

02122-0516B

Unavailable
