2004 Suzuki LS650P Rear Fender Diagram

← All diagrams

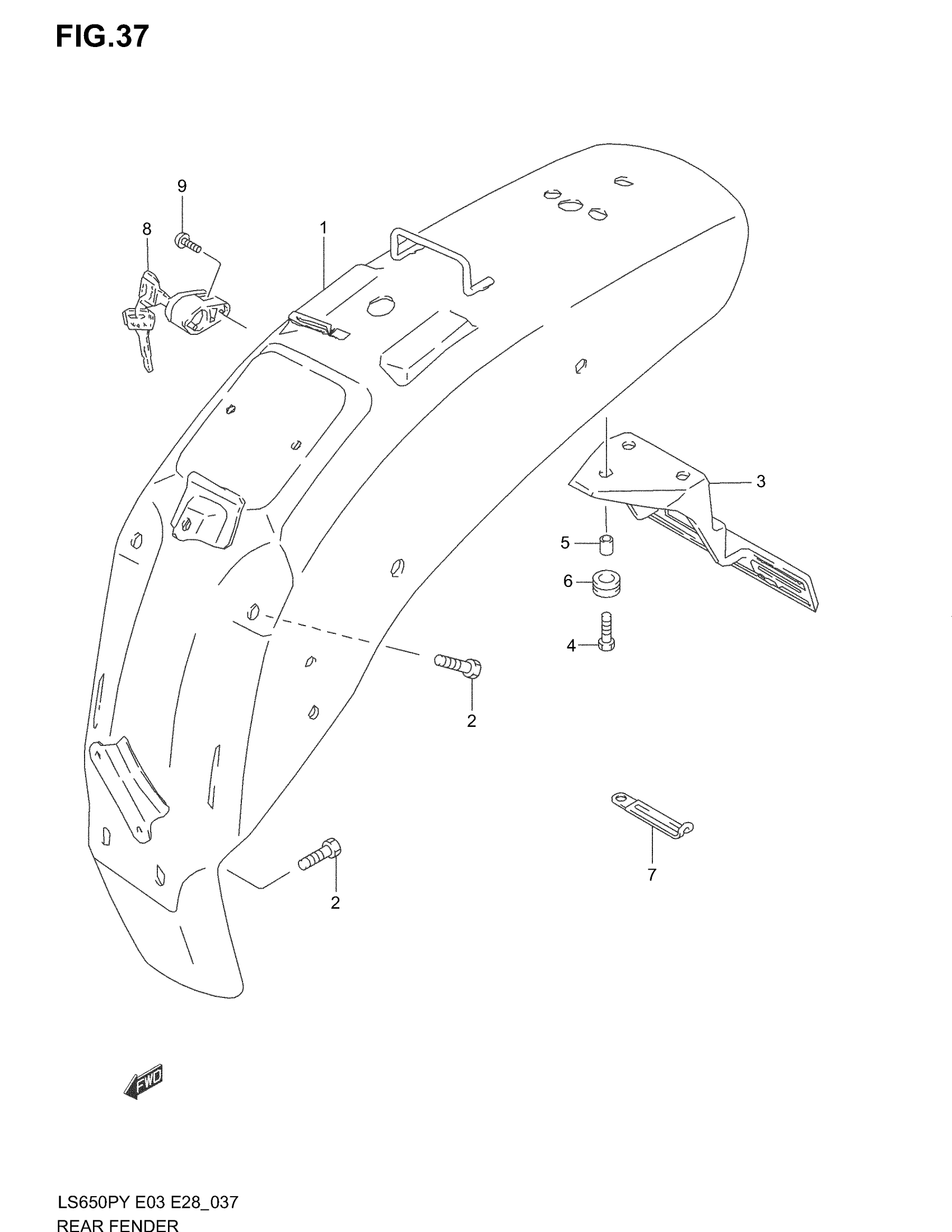

Find the part on the Rear Fender diagram for your 2004 Suzuki LS650P, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Suzuki LS650P Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | MODEL T This part replaces 63110-24B10-163.

63110-24B12-163

1
Out of stock

1

NO DESCRIPTION AVAILABLE | MODEL T This part replaces 63110-24B10-22U.

63110-24B12-22U

1
Out of stock

1

FENDER,REAR | MODEL V/W/X/K1/K2/K3 This part replaces 63110-24B10-33J.

63110-24B12-33J

1
Out of stock

1

FENDER, REAR (ORANGE) | MODEL V

63110-24B10-Y0W

1
Out of stock

1

NO DESCRIPTION AVAILABLE | MODEL W This part replaces 63110-24B10-Z94.

63110-24B12-Z94

1
Out of stock

1

NO DESCRIPTION AVAILABLE | MODEL Y This part replaces 63110-24B10-Y7G.

63110-24B12-13L

1
Out of stock

1

NO DESCRIPTION AVAILABLE | MODEL Y This part replaces 63110-24B10-Y9F.

63110-24B12-13L

1
Out of stock

1

NO DESCRIPTION AVAILABLE | MODEL K1 This part replaces 63110-24B10-YD7.

63110-24B12-13L

1
Out of stock

1

FENDER,REAR | MODEL K2 This part replaces 63110-24B10-YD8.

63110-24B12-YD8

1
Out of stock

1

FENDER,REAR | MODEL K3 This part replaces 63110-24B10-YV4.

63110-24B11-YV4

1
Out of stock

1

NO DESCRIPTION AVAILABLE | MODEL K4 This part replaces 63110-24B10-YV2.

63110-24B12-YV2

1
Out of stock

1

NO DESCRIPTION AVAILABLE | MODEL K4 This part replaces 63110-24B10-YAT.

63110-24B12-YAT

1
Out of stock

2

BOLT This part replaces 09103-08152.

09103-08419

4
Out of stock

3

BRACKET, LICENSE PLATE

35916-24B01

1
Out of stock

4

BOLT

09116-06010

3
Out of stock

5

SPACER (6.5X9X9) | MODEL T This part replaces 09180-06011.

09180-06263

3
Out of stock

5

SPACER | MODEL V/W/X/Y/K1/K2/K3/K4

09180-06263

3
Out of stock

6

CUSHION

09320-09016

3
Out of stock

7

CLAMP

09404-06429

1
Out of stock

8

LOCK SET, HELMET

95700-38821

1
Out of stock

9

SCREW

02112-05127

1
Out of stock
