2004 Suzuki LS650P Frame Cover Diagram

← All diagrams

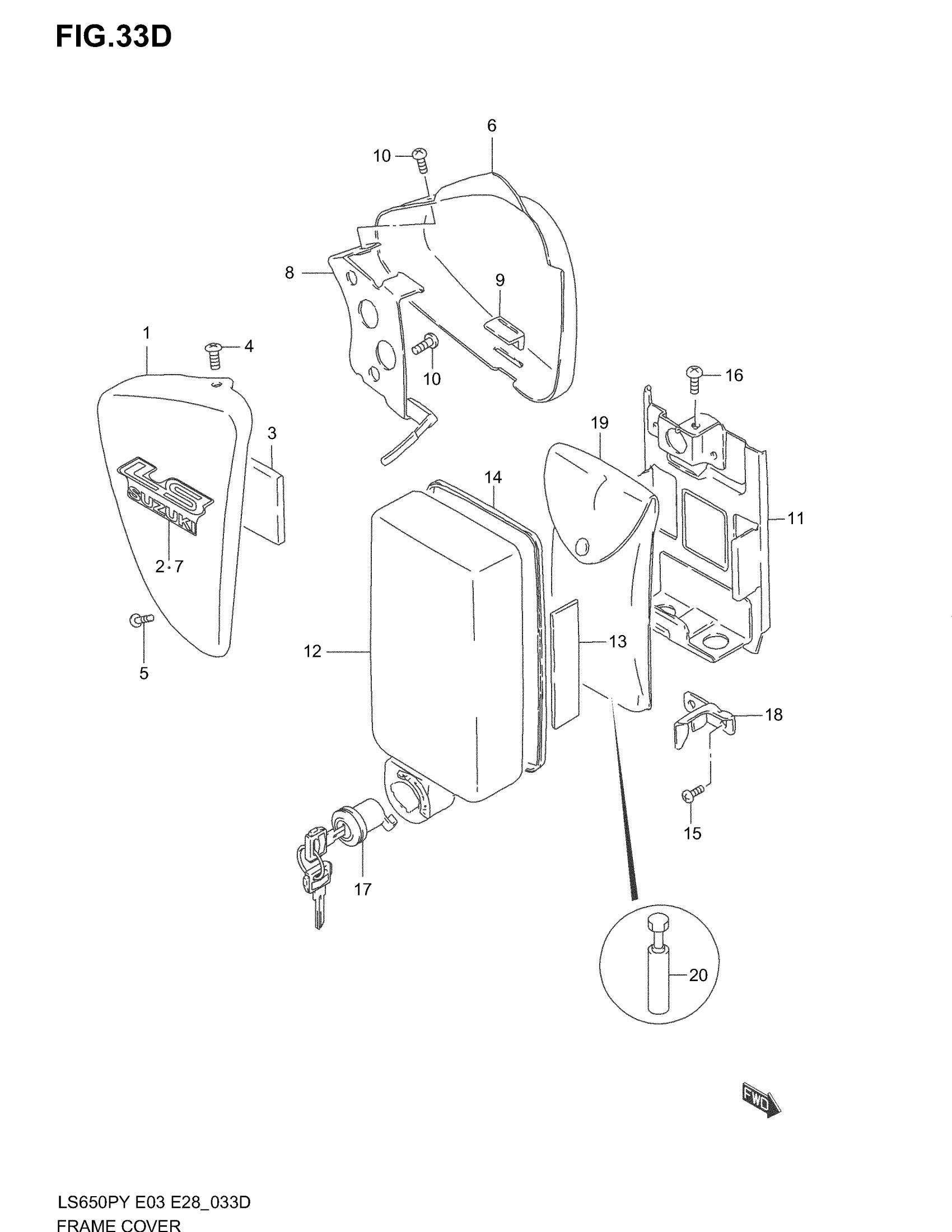

Find the part on the Frame Cover diagram for your 2004 Suzuki LS650P, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Suzuki LS650P Frame Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, FRAME RH (SILVER)

47100-24B40-YV2

1
Out of stock

1

COVER, FRAME RH (PURPLE) | Includes Item(s) 2 - 3

47100-24B40-YAT

1
Out of stock

2

EMBLEM | FOR YV2

68131-24B40-AES

1
Out of stock

2

EMBLEM | FOR YAT

68131-24B40-AET

1
Out of stock

3

CUSHION

13719-84150

1
Out of stock

4

SCREW This part replaces 02142-05103.

02142-0510B

2
Out of stock

5

SCREW This part replaces 02112-75163.

02112-7516A

1
Out of stock

6

COVER, FRAME LH (SILVER)

47200-24B40-YV2

1
Out of stock

6

COVER, FRAME LH | Includes Item(s) 7 - 7 This part replaces 47200-24B40-YAT.

47211-24B01-13L

1
Out of stock

7

EMBLEM | FOR YV2

68131-24B40-AES

1
Out of stock

7

EMBLEM | FOR YAT

68131-24B40-AET

1
Out of stock

8

BRACKET, FRAME COVER LH

47180-24B03

1
Out of stock

9

CUSHION, LH

47117-45000

1
Out of stock

10

SCREW This part replaces 02122-06123.

02122-0612A

2
Out of stock

11

HOLDER, TOOL

47430-24B01

1
Out of stock

12

COVER, TOOL HOLDER | Includes Item(s) 13 - 14 This part replaces 47440-24B10.

47440-24B20

1
Out of stock

13

PROTECTOR

33652-07D00

2
Out of stock

14

MOLDING

47445-24B00

1
Out of stock

15

SCREW This part replaces 02142-05103.

02142-0510B

2
Out of stock

16

SCREW This part replaces 02112-06103.

02112-0610B

1
Out of stock

17

LOCK SET, TOOL HOLDER This part replaces 95700-24870.

95700-24871

1
Out of stock

18

PLATE, LOCK

47434-24B00

1
Out of stock

19

TOOL ASSY This part replaces 09800-21012.

09800-21069

1
Out of stock

20

GAUGE ASSY, TENSION

96220-24B00

1
Out of stock
