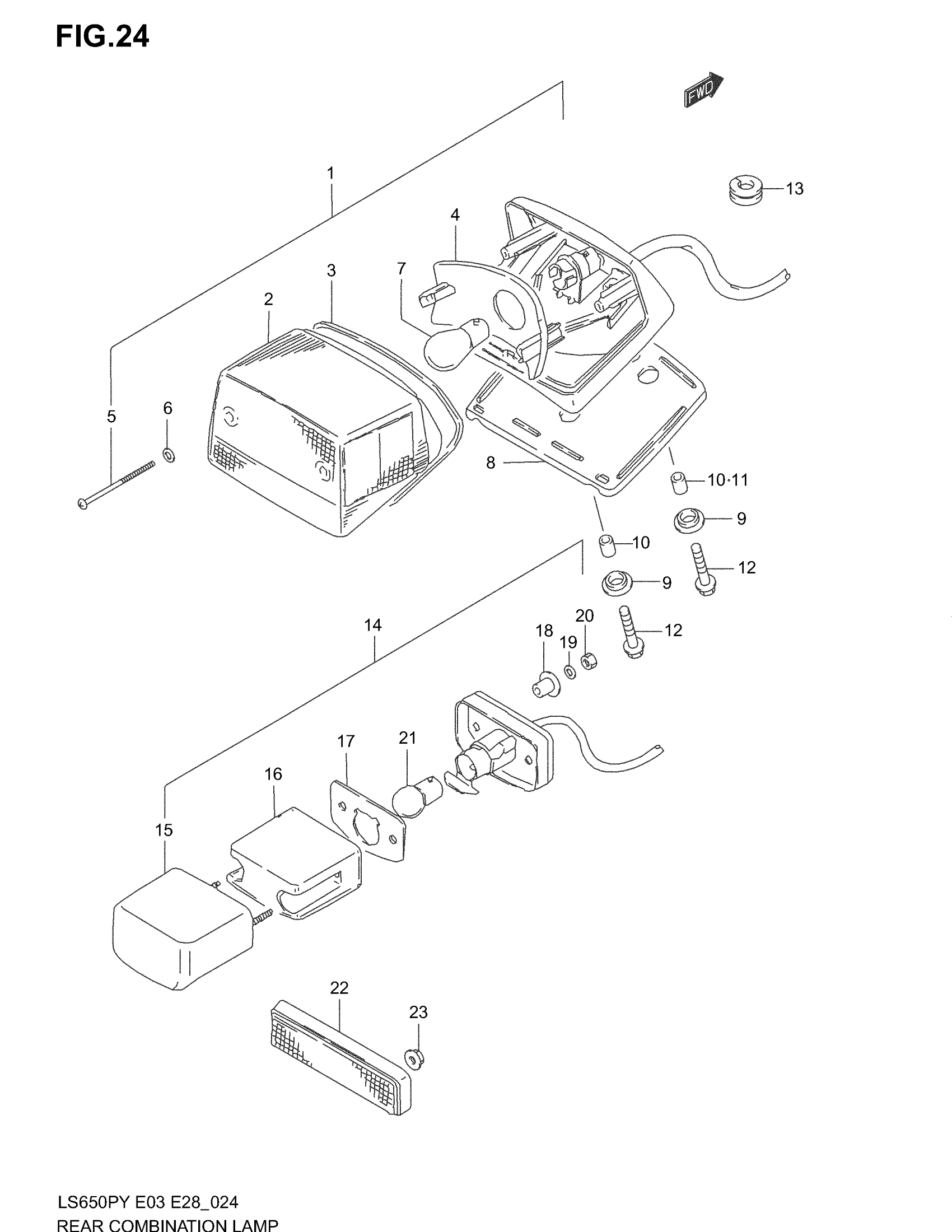

Suzuki LS650P (2004) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY, REAR COMBINATION | Includes Item(s) 2 - 11

35710-24B10

Unavailable

2

LENS

35712-24B30

$53.98

3

GASKET This part replaces 35713-38A00.

35713-31D00

$9.42

4

REFLECTOR

35714-38A00

Unavailable

5

SCREW

35723-44130

$2.22

6

GASKET

35627-43010

$2.28

7

BULB (12V,21/5W)

09471-12128

$6.73

8

CUSHION

35765-24B00

Unavailable

9

CUSHION

35764-26470

$3.37

10

SPACER

35766-37190

$2.45

11

SPACER

35766-40640

Unavailable

12

BOLT

09116-06093

$2.43

13

GROMMET | MODEL T/V/W

09308-09013

Unavailable

13

GROMMET | MODEL X/Y/K1/K2/K3/K4

09308-09004

Unavailable

14

LAMP ASSY, LICENSE | Includes Item(s) 15 - 21

35910-24B30-999

Unavailable

15

COVER, LICENSE LAMP

35917-38A20

Unavailable

16

LENS

35912-38A30

$20.45

17

GASKET

35913-38A30

$3.37

18

SPACER

35766-24B30

$3.37

19

LOCK WASHER This part replaces 08321-01043.

08321-0104A

$1.84

20

NUT

08310-00047

$2.23

21

BULB (12V,8W)

09471-12141

Unavailable

22

REFLEX REFLECTOR, REAR

35970-38A00

Unavailable

23

NUT This part replaces 08310-00053.

08310-0005A

$1.84
