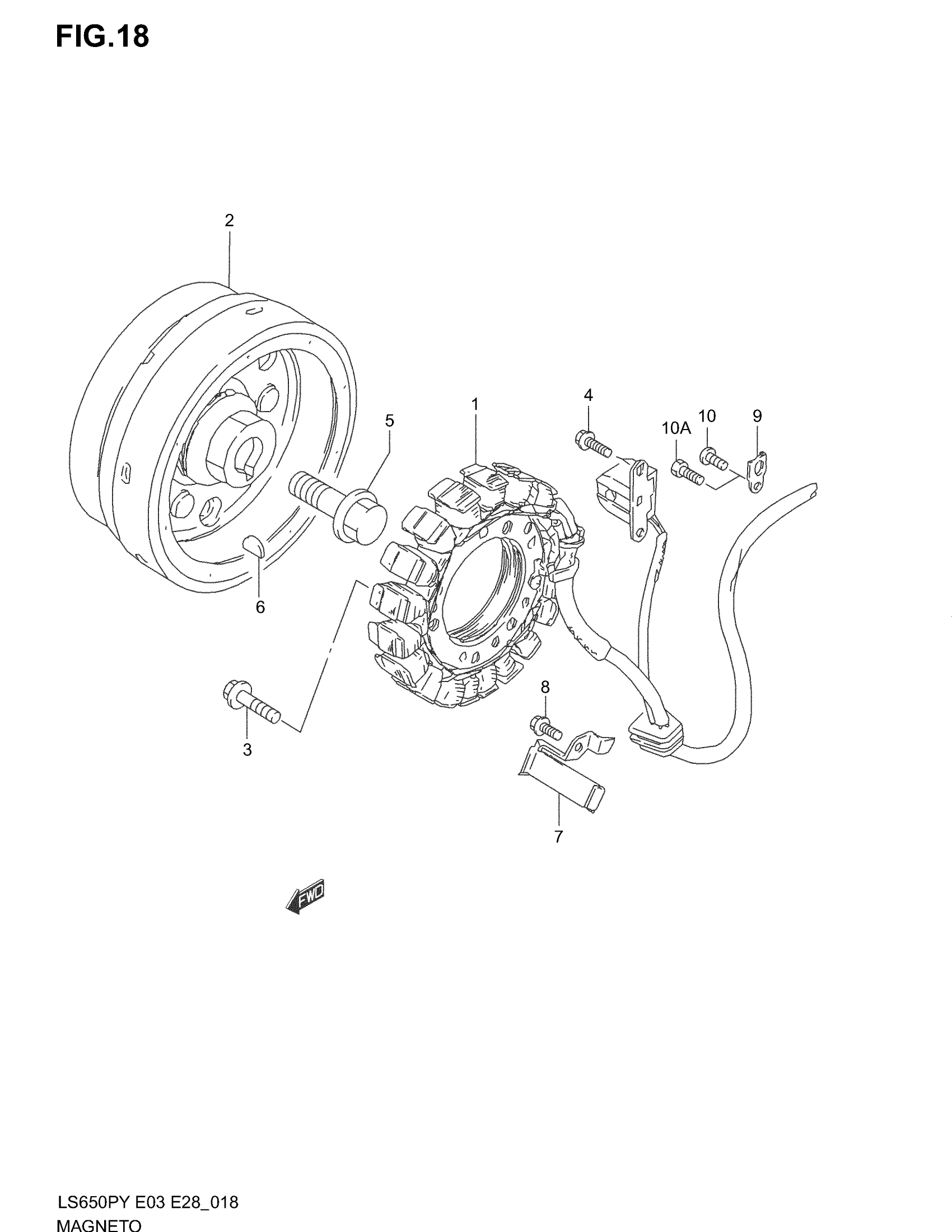

Suzuki LS650P (2004) MAGNETO Diagram

#

Description
Price

1

STATOR ASSY | MODEL T This part replaces 32101-24B00.

32101-24B02

$711.80

1

STATOR ASSY | MODEL V/W/X/Y/K1/K2 This part replaces 32101-24B01.

32101-24B02

$711.80

1

STATOR ASSY | MODEL K3/K4

32101-24B02

$711.80

2

ROTOR

32102-24B10

Unavailable

3

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.45

4

BOLT This part replaces 01547-05103.

01547-0510B

$2.97

5

BOLT, ROTOR (14X43)

09103-14001

$11.82

6

KEY

09420-05007

$4.60

7

CLAMP, LEAD WIRE NO.1

32371-24B00

Unavailable

8

BOLT This part replaces 01547-05103.

01547-0510B

$2.97

9

CLAMP, LEAD WIRE NO.2

31497-45000

$1.92

10

SCREW, THROTTLE | MODEL T/V/W/X/Y/K1 This part replaces 02112-05103.

02112-0510A

$1.49

10A

BOLT (5X10) | MODEL K2/K3/K4

09100-05019

$1.93
