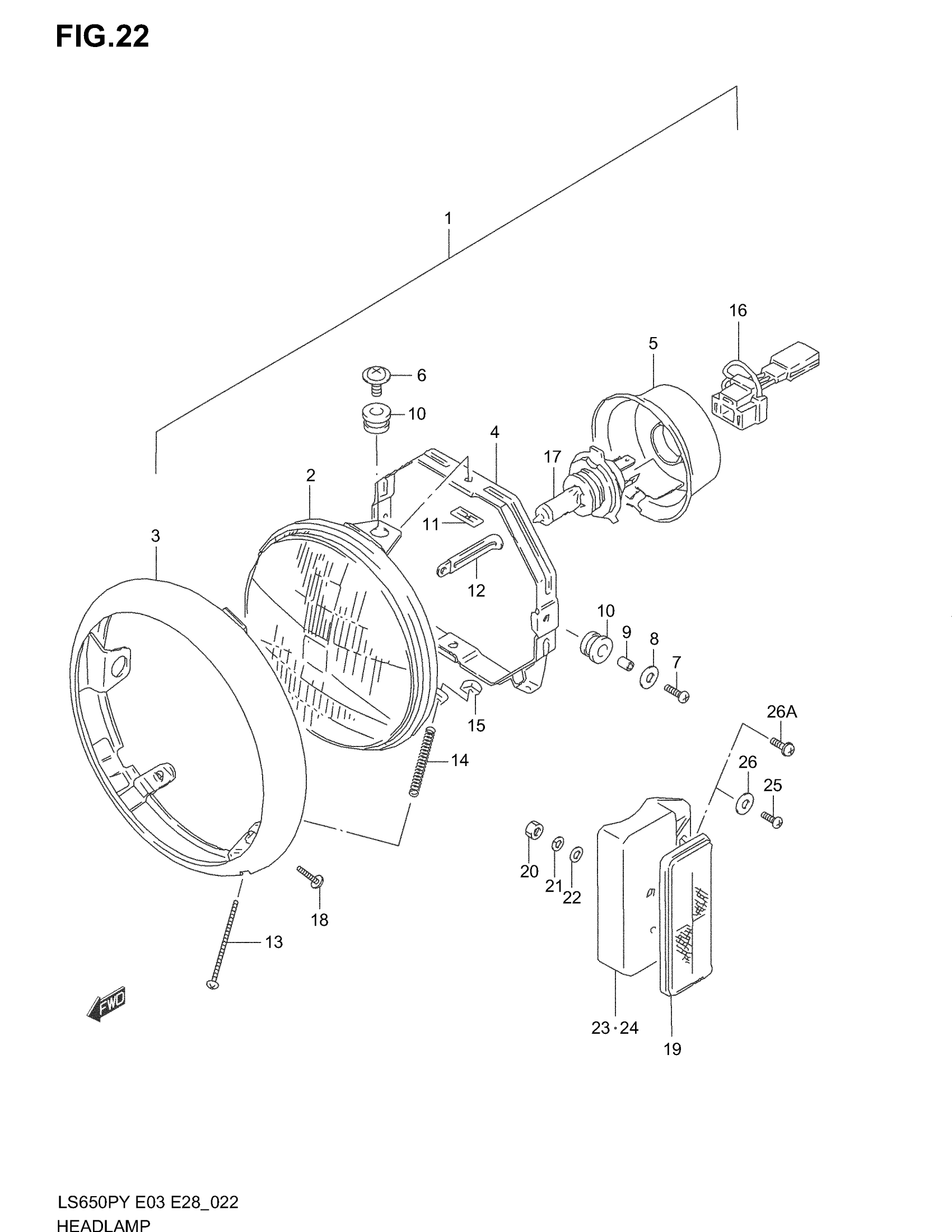

Suzuki LS650P (2004) HEADLAMP (MODEL T/V/W/X/Y) Diagram

#

Description
Price

1

HEADLAMP ASSY | Includes Item(s) 2 - 16 This part replaces 35100-38A30-999.

35100-38A62-999

$274.73

2

UNIT, LAMP

35121-38A30

Unavailable

3

RIM

35111-38A00

$46.22

4

RING, MOUNTING

35130-38A00

$26.95

5

COVER, SOCKET

35173-38A00

$16.87

6

.SCREW MOUNTING

35136-38A00

$4.02

7

SCREW

09125-05102

$1.61

8

WASHER (5.5X18X1) This part replaces 09160-05003.

09160-05045

$1.93

9

SPACER

35133-45230

$3.30

10

CUSHION

35139-45230

$1.98

11

NUT

35155-48510

$2.28

12

CLAMP (L:60)

09404-06429

$1.83

13

SCREW, ADJUST

35151-38A00

$3.63

14

SPRING

35154-31300

$3.70

15

.NUT

35152-45600

$3.47

16

SOCKET

36853-38A00

$13.92

17

BULB (12V,60/55W)

09471-12060

$25.15

18

SCREW

02142-05127

$1.97

19

REFLEX REFLECTOR, FRONT SIDE

35950-43431

$17.83

20

NUT This part replaces 08310-00053.

08310-0005A

$1.84

21

LOCK WASHER This part replaces 08321-01053.

08321-0105A

$1.84

22

WASHER (5.2X16X1) | MODEL T/V

09160-05013

$1.49

22

WASHER (5.5X16X1.2) | MODEL W/X/Y

09160-05037

$1.49

23

BRACKET, FRONT SIDE RH

35956-24B00

Unavailable

24

BRACKET, FRONT SIDE LH

35957-24B00

Unavailable

25

.SCREW | MODEL T/V This part replaces 02142-05123.

02142-0512A

$1.49

26

WASHER (5.5X16X1.2) | MODEL T/V

09160-05037

$1.49

26A

SCREW | MODEL W/X/Y

09136-05026

Unavailable
