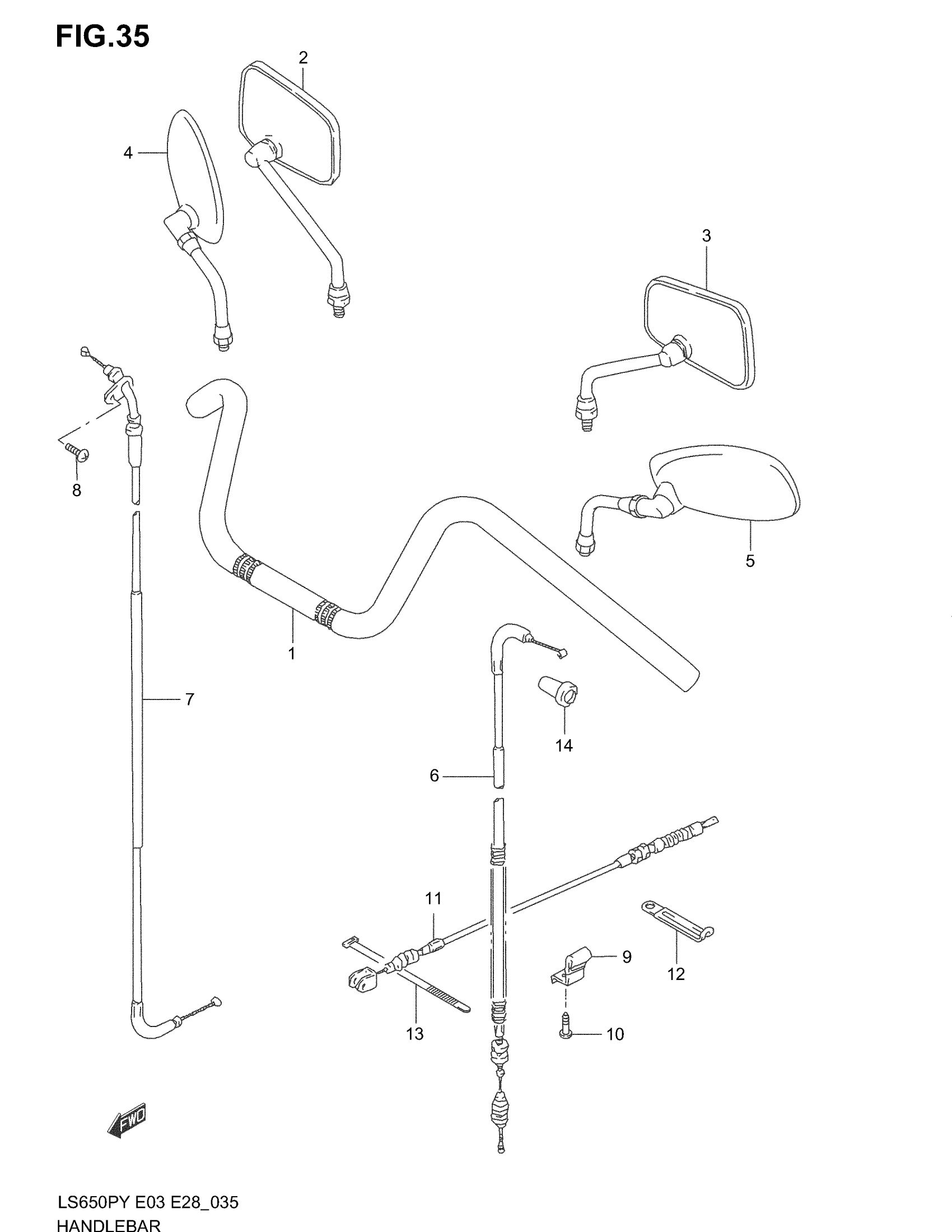

Suzuki LS650P (2004) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR (PULL BACK TYPE)

56110-24B43

Unavailable

2

MIRROR ASSY,REA | MODEL T This part replaces 56500-24B00.

56500-24B21

$113.94

2

MIRROR ASSY, REAR VIEW RH | MODEL V

56500-24B01

Unavailable

2

MIRROR ASSY,REA | MODEL W/X/Y/K1/K2/K3 This part replaces 56500-24B20.

56500-24B21

$113.94

3

NO DESCRIPTION AVAILABLE | MODEL T This part replaces 56600-24B00.

56600-24B21

Unavailable

3

MIRROR ASSY, REAR VIEW LH | MODEL V

56600-24B01

Unavailable

3

NO DESCRIPTION AVAILABLE | MODEL W/X/Y/K1/K2/K3 This part replaces 56600-24B20.

56600-24B21

Unavailable

4

MIRROR ASSY, REAR VIEW RH | MODEL K4 This part replaces 56500-41F00.

56500-41F01

$84.38

5

MIRROR ASSY, REAR VIEW LH | MODEL K4 This part replaces 56600-41F00.

56600-41F01

$84.38

6

CABLE ASSY, CLUTCH

58200-24B12

$31.88

7

CABLE ASSY, THROTTLE

58300-24B20

$39.50

8

SCREW

02142-05087

$1.49

9

CLAMP, STOP LAMP SWITCH

58620-24B00

Unavailable

10

BOLT This part replaces 01570-06163.

01570-0616A

$2.23

11

CABLE, STOP LAMP SWITCH | MODEL T/V/W/X This part replaces 58830-24B00.

58830-24B01

$28.85

11

CABLE, STOP LAMP SWITCH | MODEL Y/K1/K2/K3/K4

58830-24B01

$28.85

12

CLAMP (L:65) | MODEL T/V This part replaces 09404-08418.

09404-08421

$2.07

12

CLAMP, STOP LAMP CABLE | MODEL W/X/Y/K1/K2/K3/K4

09404-08206

$3.72

13

CLAMP, REAR BRAKE CABLE

09407-14407

$3.57

14

BOOT, CLUTCH CABLE This part replaces 58273-31000.

58273-31001

$2.22
