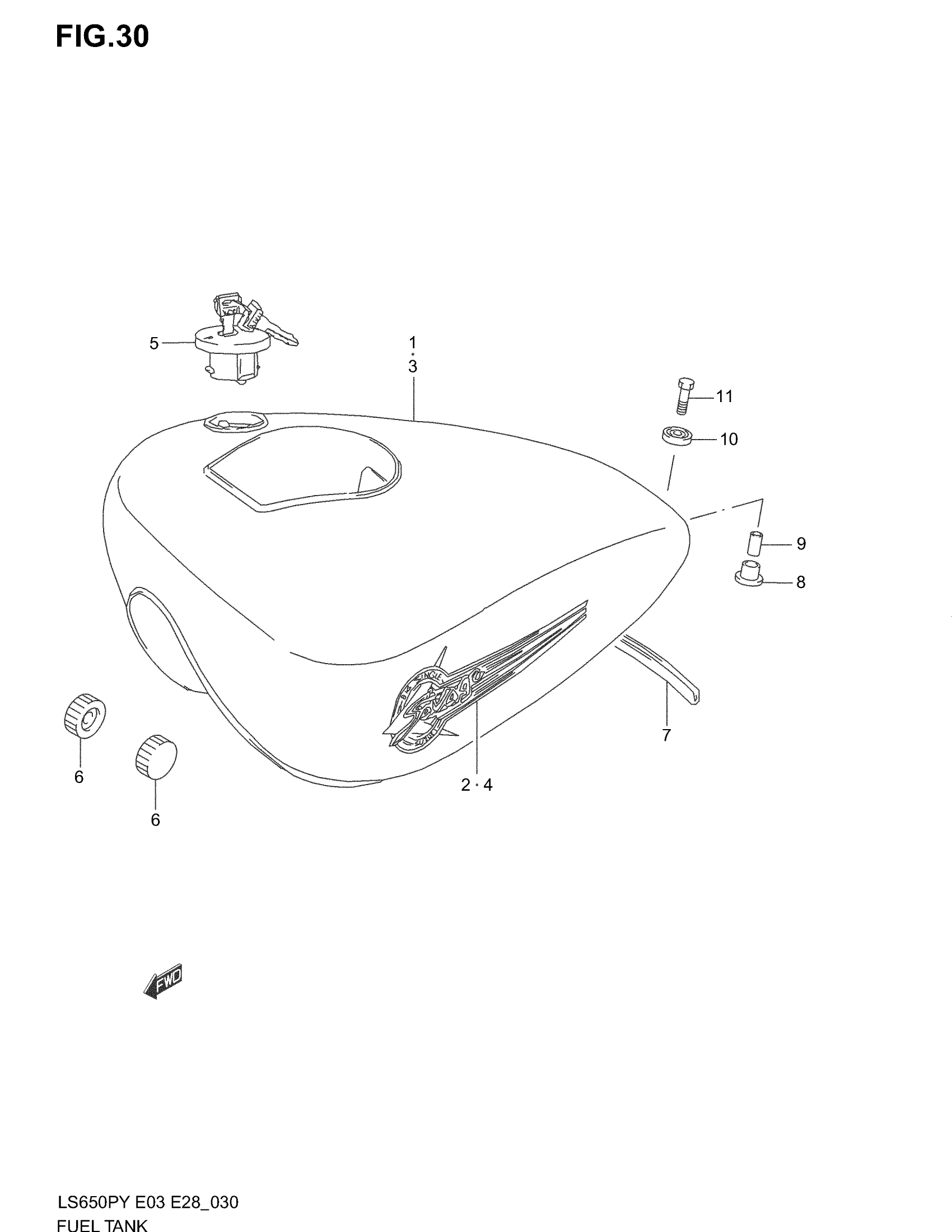

Suzuki LS650P (2004) FUEL TANK (MODEL T/V/W/X) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL T This part replaces 44100-25B00-163.

44100-25B11-163

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL T This part replaces 44100-25B00-22U.

44100-25B11-22U

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL T E33 This part replaces 44100-25B20-163.

44100-25B21-163

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL T E33 This part replaces 44100-25B20-22U.

44100-25B21-22U

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL V This part replaces 44100-25B01-2VX.

44100-25B11-2VX

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL V This part replaces 44100-25B01-Y0W.

44100-25B11-Y0W

Unavailable

1

TANK ASSY, FUEL (BLACK) | MODEL V E33

44100-25B21-2VX

Unavailable

1

TANK ASSY, FUEL (ORANGE) | MODEL V E33; Includes Item(s) 2 - 2

44100-25B21-Y0W

Unavailable

2

TAPE SET | MODEL T FOR 163

68110-25B00-Z72

Unavailable

2

TAPE SET | MODEL T FOR 22U

68110-25B00-Z71

Unavailable

2

TAPE SET | MODEL V FOR 2VX

68110-25B00-Y2J

Unavailable

2

TAPE SET | MODEL V FOR Y0W

68110-25B00-Y2L

Unavailable

3

NO DESCRIPTION AVAILABLE | MODEL W/X This part replaces 44100-25B30-33J.

44100-25B40-33J

Unavailable

3

NO DESCRIPTION AVAILABLE | MODEL W This part replaces 44100-25B30-Z94.

44100-25B40-Z94

Unavailable

3

TANK ASSY, FUEL (BLACK) | MODEL W/X E33

44100-25B50-33J

Unavailable

3

TANK ASSY, FUEL (ORANGE) | MODEL W E33; Includes Item(s) 4 - 4

44100-25B50-Z94

Unavailable

4

TAPE SET | MODEL W/X FOR 33J

68110-24B00-J9C

Unavailable

4

TAPE SET | MODEL W FOR Z94

68110-24B00-J9E

Unavailable

5

CAP SET, FUEL TANK

44200-24830

$125.55

5

(CA)CAP,FUEL TA | E33 This part replaces 44200-24820.

44200-24821

$144.14

6

CUSHION, FRONT

09329-10016

$3.10

7

MOLDING, REAR

44552-24B00

$14.08

8

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.60

9

SPACER | MODEL T This part replaces 09180-06072.

09180-06271

$2.35

9

SPACER | MODEL V/W/X

09180-06271

$2.35

10

CUSHION, UPPER

09320-14013

$2.11

11

BOLT This part replaces 01500-06303.

01500-0630A

$2.19
