2004 Suzuki LS650P Fuel Tank Diagram

← All diagrams

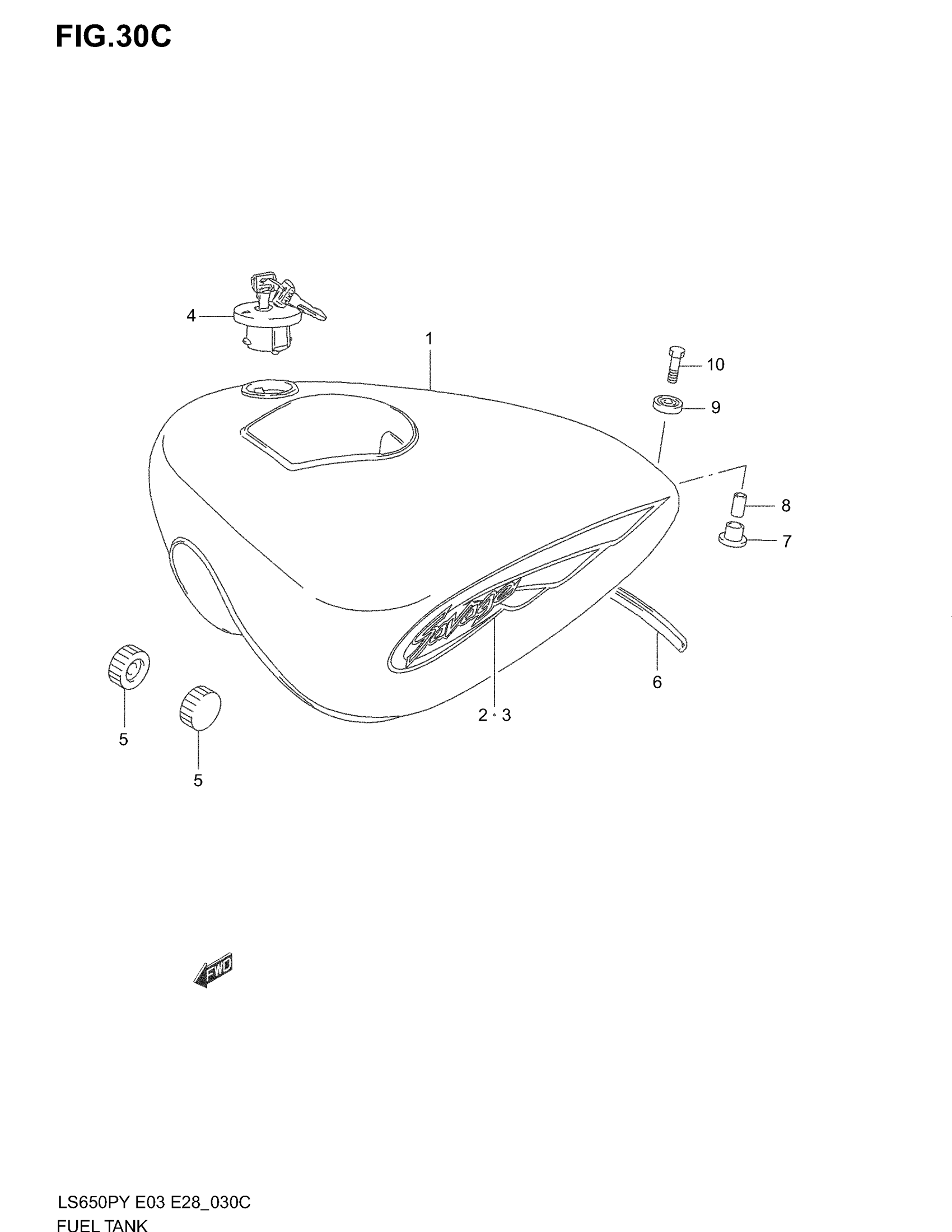

Find the part on the Fuel Tank diagram for your 2004 Suzuki LS650P, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Suzuki LS650P Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK ASSY, FUEL (SILVER)

44100-24BF0-YV2

1
Out of stock

1

TANK ASSY, FUEL (PURPLE)

44100-24BF0-YAT

1
Out of stock

1

TANK ASSY, FUEL (SILVER) | E33

44100-24BG0-YV2

1
Out of stock

1

TANK ASSY, FUEL (PURPLE) | E33; Includes Item(s) 2 - 3

44100-24BG0-YAT

1
Out of stock

2

EMBLEM, RH | FOR YV2

68111-24B30-YFC

1
Out of stock

2

EMBLEM, RH | FOR YAT

68111-24B30-YFD

1
Out of stock

3

EMBLEM, LH | FOR YV2

68121-24B30-YFC

1
Out of stock

3

EMBLEM, LH | FOR YAT

68121-24B30-YFD

1
Out of stock

4

CAP SET, FUEL TANK

44200-24830

1
Out of stock

4

(CA)CAP,FUEL TA | E33 This part replaces 44200-24820.

44200-24821

1
Out of stock

5

CUSHION, FRONT

09329-10016

2

$3.00

In stock

6

MOLDING, REAR

44552-24B00

1
Out of stock

7

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

2
Out of stock

8

SPACER

09180-06271

2
Out of stock

9

CUSHION, UPPER

09320-14013

2
Out of stock

10

BOLT This part replaces 01500-06303.

01500-0630A

2
Out of stock
