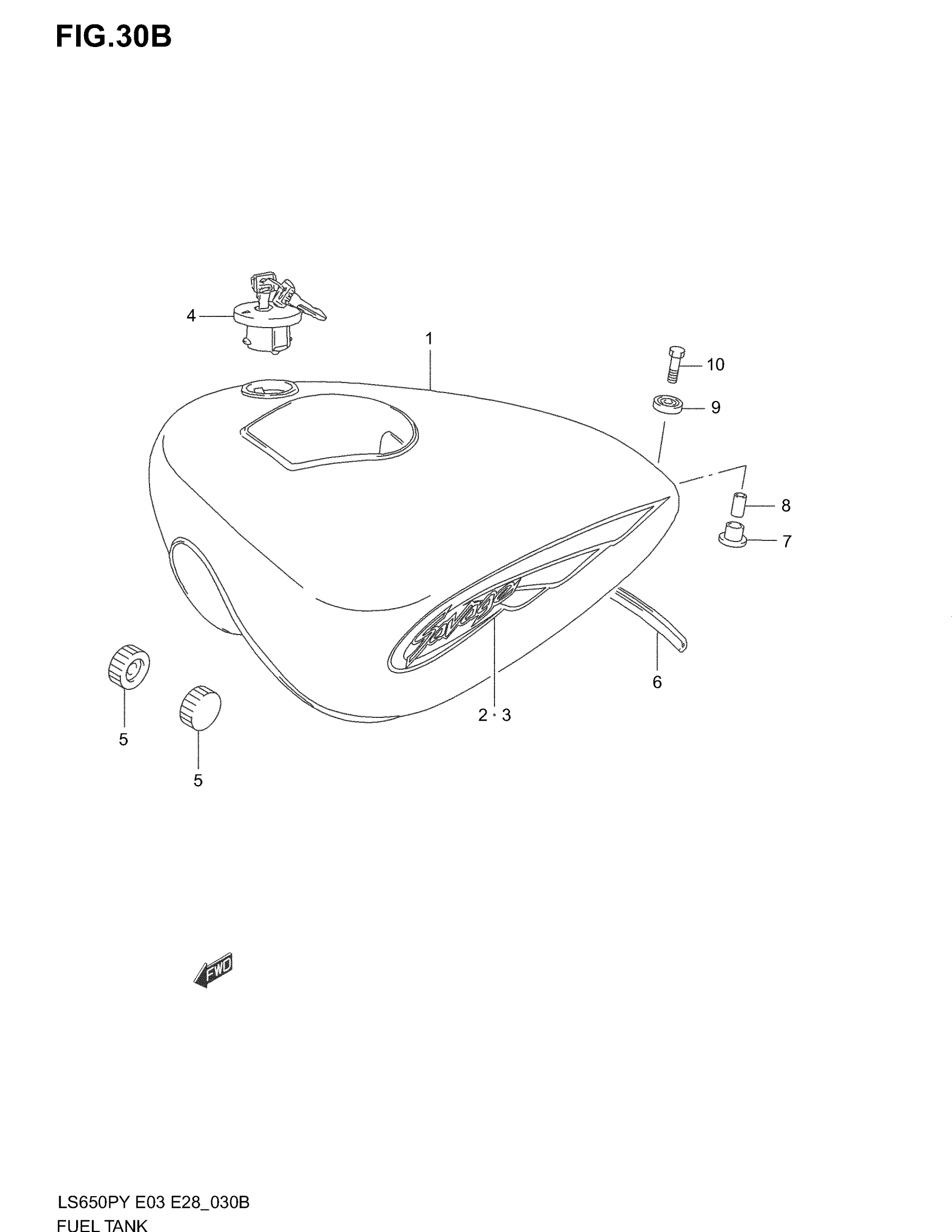

Suzuki LS650P (2004) FUEL TANK (MODEL K2/K3) Diagram

#

Description
Price

1

TANK ASSY,FUEL | MODEL K2 This part replaces 44100-24BF0-33J.

44110-24B25-13L

$657.63

1

TANK ASSY, FUEL (SILVER) | MODEL K2

44100-24BF0-YD8

Unavailable

1

TANK ASSY, FUEL (BLACK) | MODEL K2 E33

44100-24BG0-33J

Unavailable

1

TANK ASSY, FUEL (SILVER) | MODEL K2 E33

44100-24BG0-YD8

Unavailable

1

TANK ASSY, FUEL (BLACK) | MODEL K3

44100-24BF0-2JX

Unavailable

1

TANK ASSY, FUEL (GREEN) | MODEL K3

44100-24BF0-YV4

Unavailable

1

TANK ASSY, FUEL (BLACK) | MODEL K3 E33

44100-24BG0-2JX

Unavailable

1

TANK ASSY, FUEL (GREEN) | MODEL K3 E33; Includes Item(s) 2 - 3

44100-24BG0-YV4

Unavailable

2

EMBLEM, RH | MODEL K2 FOR 33J

68111-24B30-YZ2

Unavailable

2

EMBLEM, RH | MODEL K2 FOR YD8

68111-24B30-YZ1

Unavailable

2

EMBLEM, RH | MODEL K3 FOR 2JX

68111-24B30-YBZ

Unavailable

2

EMBLEM, RH | MODEL K3 FOR YV4

68111-24B30-YCA

Unavailable

3

EMBLEM, LH | MODEL K2 FOR 33J

68121-24B30-YZ2

Unavailable

3

EMBLEM, LH | MODEL K2 FOR YD8

68121-24B30-YZ1

Unavailable

3

EMBLEM, LH | MODEL K3 FOR 2JX

68121-24B30-YBZ

Unavailable

3

EMBLEM, LH | MODEL K3 FOR YV4

68121-24B30-YCA

Unavailable

4

CAP SET, FUEL TANK

44200-24830

$125.55

4

(CA)CAP,FUEL TA | E33 This part replaces 44200-24820.

44200-24821

$144.14

5

CUSHION, FRONT

09329-10016

$3.10

6

MOLDING, REAR

44552-24B00

$14.08

7

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.60

8

SPACER

09180-06271

$2.35

9

CUSHION, UPPER

09320-14013

$2.11

10

BOLT This part replaces 01500-06303.

01500-0630A

$2.19
