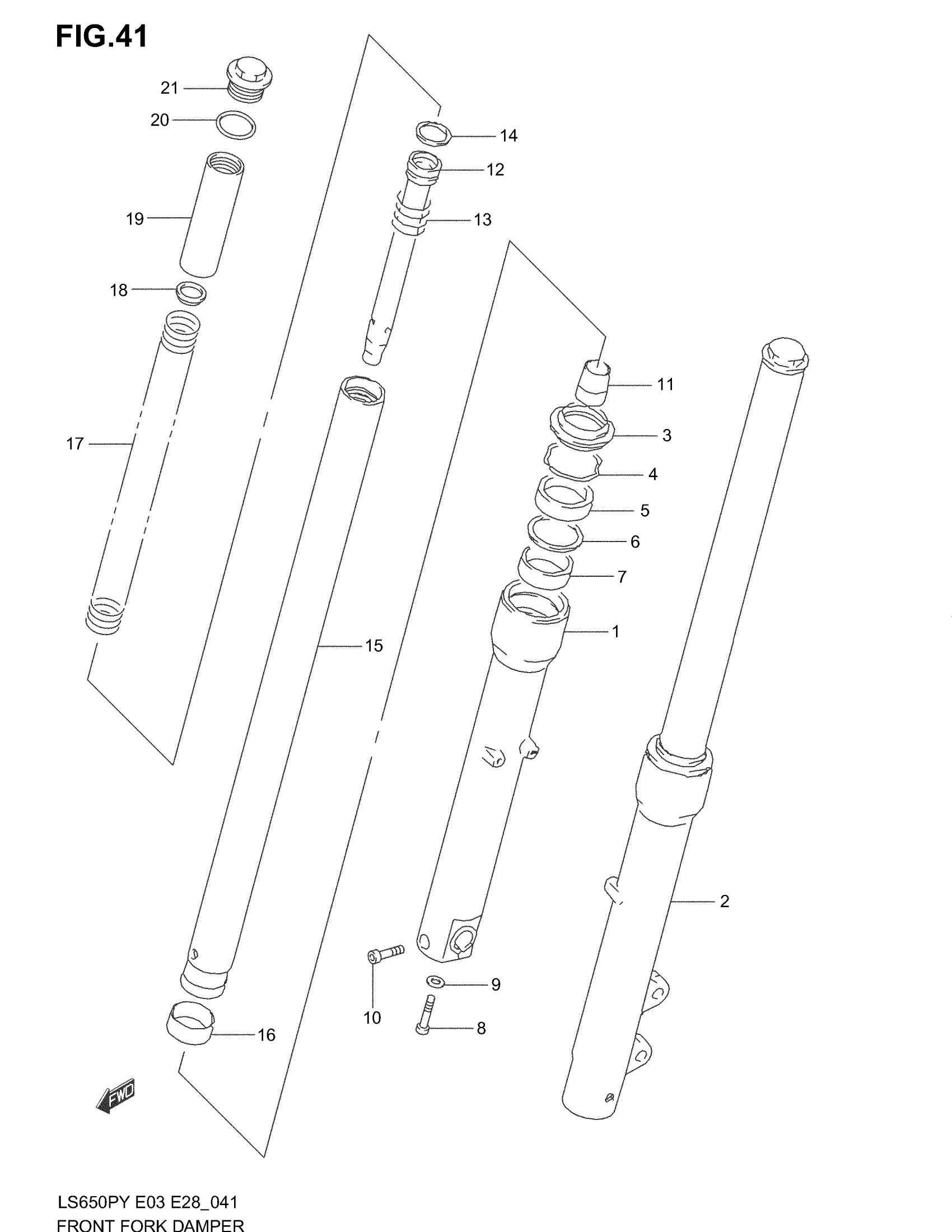

Suzuki LS650P (2004) FRONT DAMPER Diagram

#

Description
Price

DAMPER ASSY, FRONT FORK RH

51103-24B01

Unavailable

DAMPER ASSY, FRONT FORK LH | Includes Item(s) 1 - 21

51104-24B01

Unavailable

1

TUBE, OUTER RH

51130-24B00

Unavailable

2

TUBE, OUTER LH

51140-24B00

Unavailable

3

DUST SEAL

51173-20A00

$16.13

4

RING, STOPPER

51156-40301

$5.05

5

OIL SEAL

51153-20A00

$19.00

6

WASHER

51158-14100

$3.71

7

METAL, SLIDE

51167-13A00

$9.69

8

BOLT

51147-16510

$4.34

9

GASKET

51148-41310

$2.26

10

BOLT

07130-08407

$3.14

11

PIECE, OIL LOCK

51195-24B01

Unavailable

12

CYLINDER

51146-24B01

Unavailable

13

SPRING

51177-49440

Unavailable

14

RING, PISTON

51196-05A00

$8.42

15

TUBE, INNER

51120-24B01

$392.77

16

PISTON

51121-14100

$14.76

17

SPRING

51171-24B00

Unavailable

18

WASHER

51172-45C00

$6.70

19

SPACER

51176-24B01

$12.32

20

O RING

51117-40300

$3.09

21

CAP

51351-24B00

Unavailable
