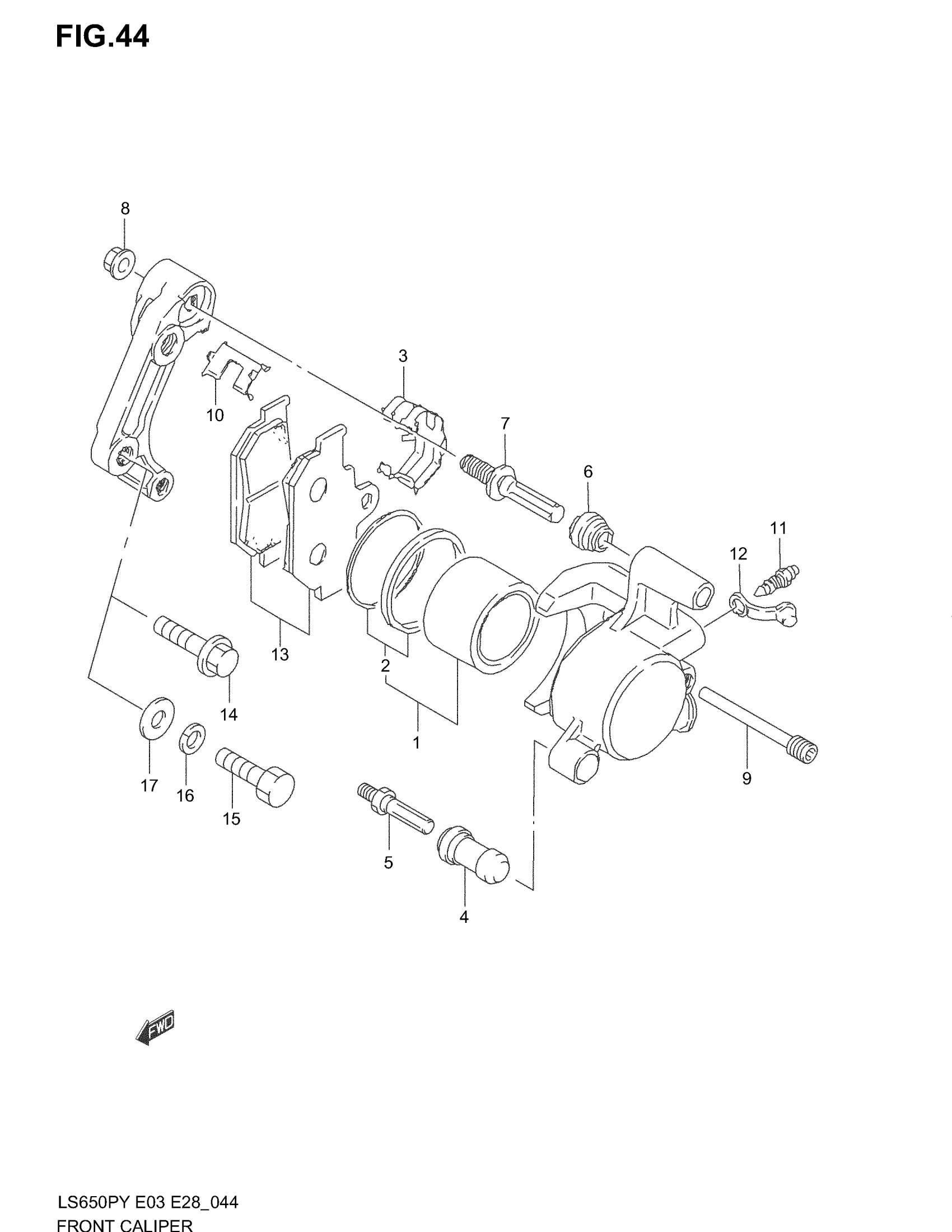

Suzuki LS650P (2004) FRONT CALIPER Diagram

#

Description
Price

CALIPER ASSY, LH | Includes Item(s) 1 - 12

59300-24B30-999

$320.47

1

PISTON SET

59300-24820

$48.77

2

SEAL SET, PISTON

59300-24810

$11.24

3

SPRING

59315-14600

$11.83

4

BOOT

59386-13A00

$7.95

5

BOLT

59382-27C30

$9.07

6

BOOT

59303-14500

$5.52

7

BOLT

59305-14500

$23.07

8

NUT

59306-14500

Unavailable

9

PIN

59345-14600

$16.25

10

RETAINER

59316-24B10

$8.42

11

BLEEDER

59121-01A00

$8.73

12

CAP

59122-01A00

$4.34

13

PAD SET This part replaces 59300-24830.

59100-26870

$36.41

14

BOLT (10X38) | MODEL T/V/W This part replaces 09118-10049.

09104-10029

$3.55

15

BOLT (10X38) | MODEL X/Y/K1/K2/K3/K4

09104-10029

$3.55

16

WASHER | MODEL X/Y/K1/K2/K3/K4

09162-10008

$3.04

17

WASHER | MODEL X/Y/K1/K2/K3/K4

08322-01107

$2.15
