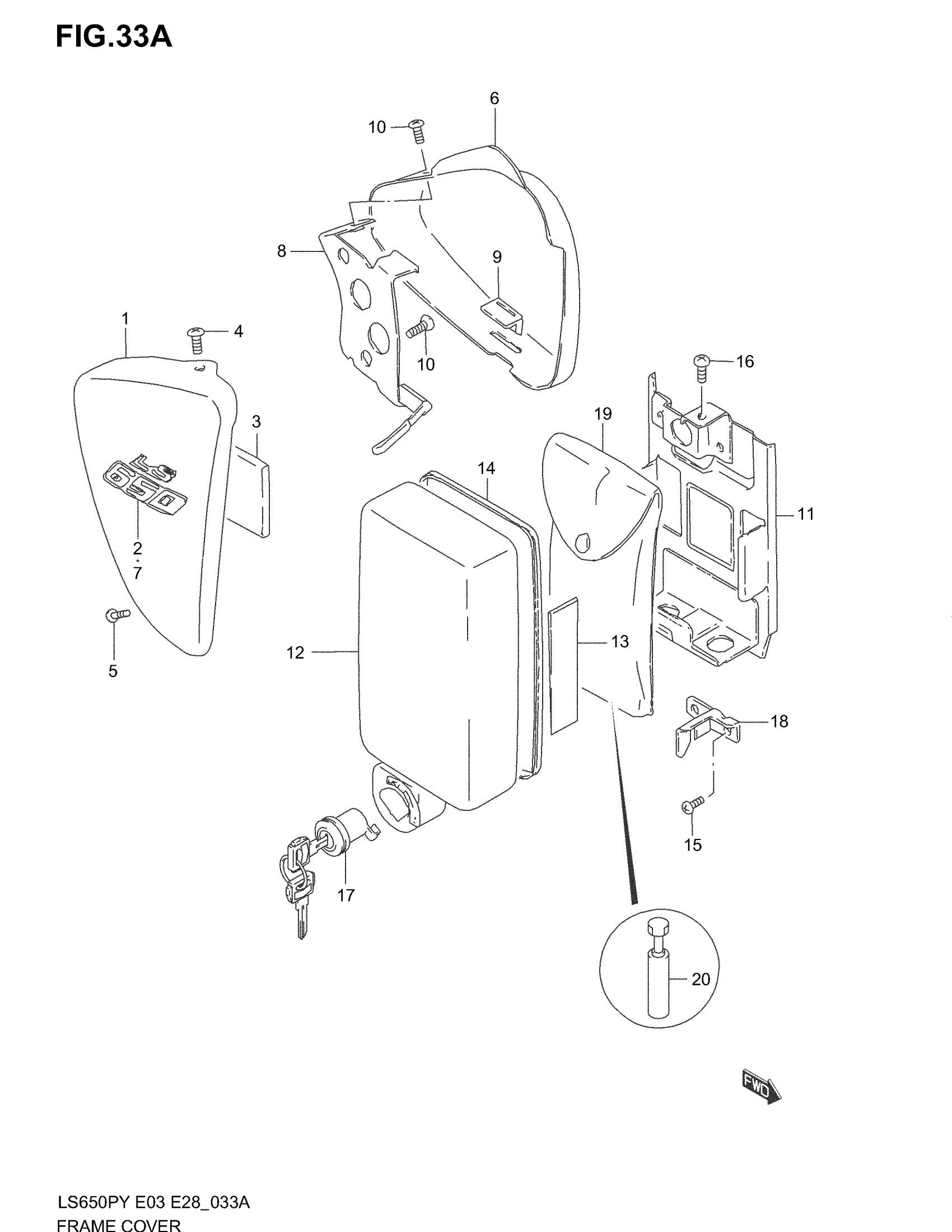

Suzuki LS650P (2004) FRAME COVER (MODEL W/X) Diagram

#

Description
Price

1

COVER, FRAME RH (BLACK) | MODEL W/X

47100-25B10-33J

Unavailable

1

COVER, FRAME RH (ORANGE) | MODEL W; Includes Item(s) 2 - 3

47100-25B10-Z94

Unavailable

2

EMBLEM | MODEL W/X FOR 33J

68131-24B20-J9F

Unavailable

2

EMBLEM | MODEL W FOR Z94

68131-24B20-J9E

Unavailable

3

CUSHION

13719-84150

$3.37

4

SCREW This part replaces 02142-05103.

02142-0510B

$1.78

5

SCREW This part replaces 02112-75163.

02112-7516A

$2.41

6

COVER, FRAME LH (BLACK) | MODEL W/X

47200-25B10-33J

Unavailable

6

COVER, FRAME LH (ORANGE) | MODEL W; Includes Item(s) 7 - 7

47200-25B10-Z94

Unavailable

7

EMBLEM | MODEL W/X FOR 33J

68131-24B20-J9F

Unavailable

7

EMBLEM | MODEL W FOR Z94

68131-24B20-J9E

Unavailable

8

BRACKET, FRAME COVER LH

47180-24B03

$24.20

9

CUSHION, LH

47117-45000

$2.14

10

SCREW This part replaces 02122-06123.

02122-0612A

$1.49

11

HOLDER, TOOL

47430-24B01

$20.65

12

COVER, TOOL HOLDER | Includes Item(s) 13 - 14 This part replaces 47440-24B10.

47440-24B20

$54.71

13

PROTECTOR

33652-07D00

$5.64

14

MOLDING

47445-24B00

$3.59

15

SCREW This part replaces 02142-05103.

02142-0510B

$1.78

16

SCREW This part replaces 02112-06103.

02112-0610B

$1.84

17

LOCK SET, TOOL HOLDER This part replaces 95700-24870.

95700-24871

$52.02

18

PLATE, LOCK

47434-24B00

$4.34

19

TOOL ASSY This part replaces 09800-21012.

09800-21069

$40.17

20

GAUGE ASSY, TENSION

96220-24B00

$31.76
